Okinawa 72V Lithium Battery Charger (84V Cut-off) (D-type connector) - Okinawa Praisepro, Okinawa IPraise+

🔌 Which charger do I need?

Okinawa Praise Pro and iPraise scooters come with two different charging port types depending on the year of purchase:

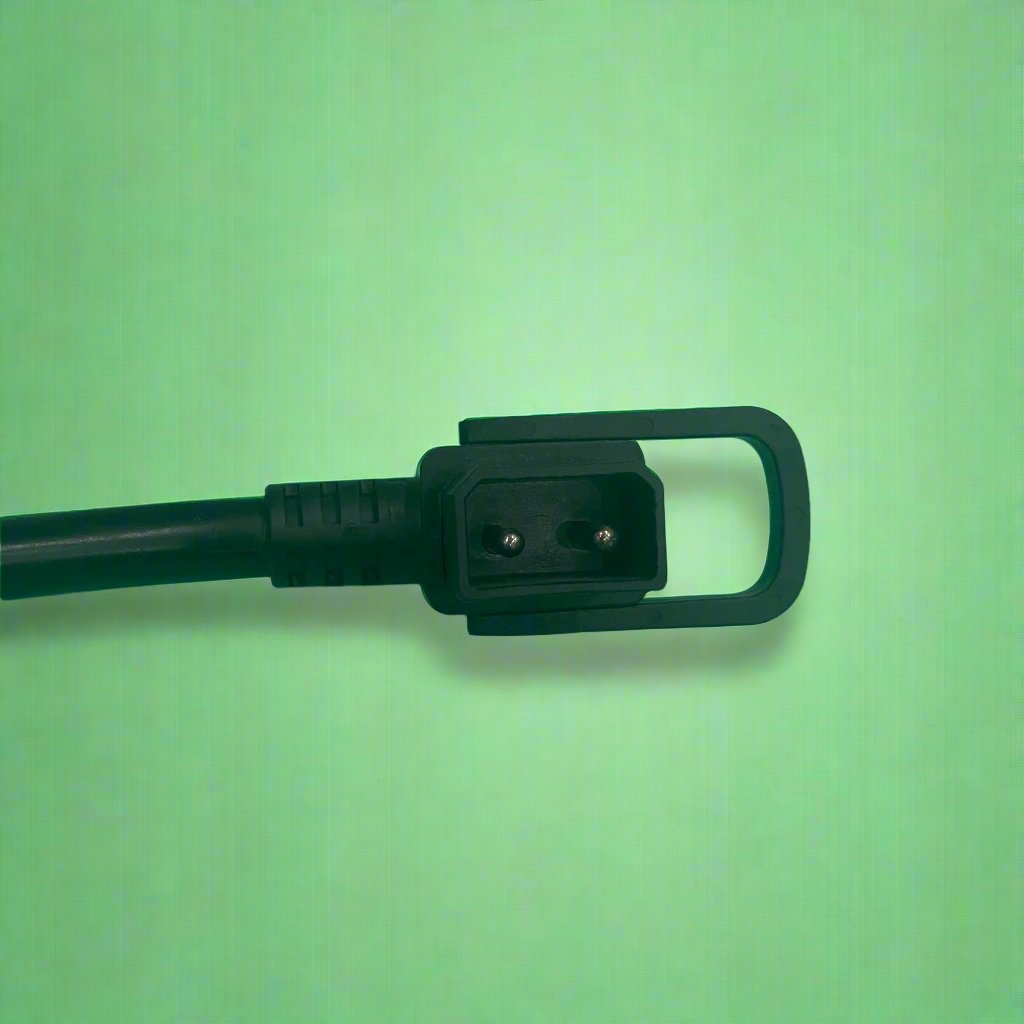

- Pre-2022 models → D-Type connector (rectangular slot) ✅ This is the right charger
- 2022 and newer → Chagori connector (round, 3-pin with blue ring)

👉 Not sure? Look at the charging port on your scooter:
- Rectangular slot = D-Type → order this
- Round hole with 3 pins and a blue ring = Chagori → see our Chagori charger instead

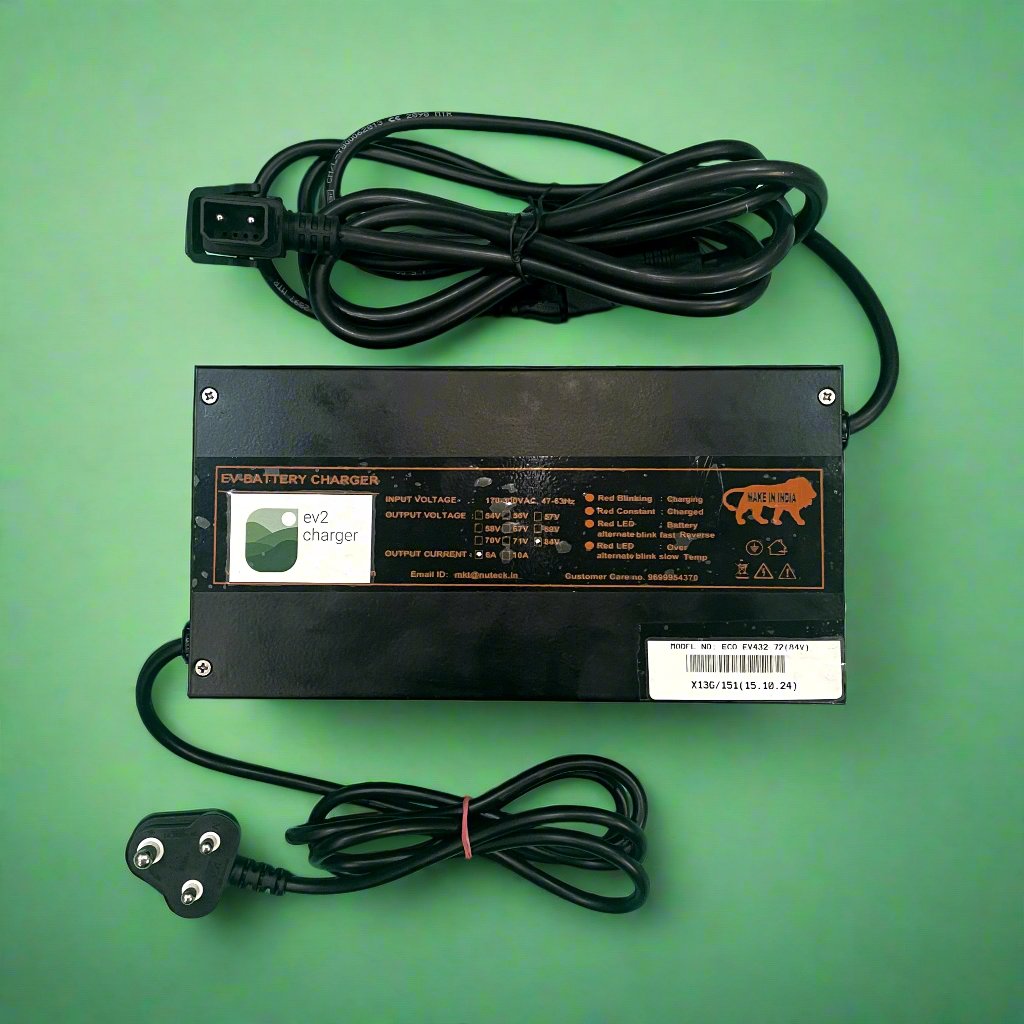

72V battery charger (84V cut-off voltage) with Okinawa D-type male connector for 72V lithium battery. Compatible with Okinawa Praisepro and IPraise+ pre 2022 models.

Key Highlights:

• Origin: Made in India.
• Warranty: 1 Year (12 Months) from the date of purchase.
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details).
• Delivery: 3-10 Days.

Technical Features:

• High Speed Charging: 10 Amp output current drastically reduces charging time compared to standard 6A chargers.
• Wide Input Range: Operates smoothly between 170V - 300V AC, handling voltage fluctuations effectively.
• Smart Protection: Microcontroller-based design with Auto Cut-off at 84V.
• Advanced Cooling: Internal DC fan with aluminium casing for optimal thermal management.
• Reliability: Type tested for bump and vibrations; 100% full load burn-in tested.

Mechanical Specifications:

• Dimensions (L x W x H): ~ 23.5 CM x 12.5 CM x 8 CM.
• Weight: ~ 2.6 Kg.
• Connector Type: D-Type Male (2 Pin Rectangular).

Electrical Specifications:

Input:

• Input Voltage: 170V - 300V AC.
• Frequency: 47 - 63 Hz.
• Max Input Current: 6.0 Amp (@ 230V AC).
• Note: Connect input mains cord to a standard 15Amp/5Amp wall socket with proper grounding.

Output:

• Nominal Voltage: 72V DC.
• Max/Cut-off Voltage: 84V DC.
• Output Current: 10.0 Amp ± 0.3 Amp.
• Model: RE2AC7210.

Safety Instructions:

• WARNING: Connect charger to battery BEFORE AC connection.
• Water Hazard: Keep away from water; do not expose to rain.
• Usage: For Li-Ion 72V Battery System Only.
• Environment: Use in a well-ventilated area; do not cover the charger.

Protection Systems:

• Output Short Circuit Protection.
• Over-Temperature Protection.
• Output Overload Protection.
• Battery Reverse Polarity Protection.

Warranty Terms & Conditions: We provide service and care. This battery charger is warranted to be free from defects in material and workmanship for a period of 12 months from the date of the original invoice.

The warranty is void under the following conditions:

• Missing Identification: If the serial number is missing or tampered with.
• Physical Damage: Damage resulting from abuse, misuse, dropping, or tampering.
• Unauthorized Repair: Attempted repair or maintenance by unauthorized personnel.
• Improper Connection: Connecting the DC output to an AC source or vice versa.
• Negligence: Damage caused by negligent use, improper cleaning, or storage.
• Environmental Damage: Damage resulting from fire, water, dust, wind, lightning, or other natural causes.
• Power Issues: Failure due to power fluctuations or high-voltage surges.

Looking for a different Okinawa charger?
→ Okinawa Praise Pro / iPraise+ Charger — Chagori Connector (2022 onwards)
→ Okinawa Ridge / Ridge+ / Dual 100 Charger 67.2V
→ Okinawa R30 Charger 54.6V
→ Browse all Okinawa chargers

Frequently Asked Questions

Q: How do I know if my scooter has a D-Type connector?
A: If your Okinawa Praise Pro or iPraise was purchased before 2022, it has the D-Type connector — a rectangular slot on the scooter body.

Q: Will this charger work on my 2022 or newer Praise Pro?
A: No. Newer models use a Chagori round connector. Order our Chagori charger instead.

Q: What is the charging time for Okinawa Praise Pro/IPraise with this charger?
A: Approximately 3/5 hours respectively for a full charge from empty with this 10A output charger.

Q: Is this an original Okinawa charger?
A: This is a high-quality compatible replacement charger, not an Okinawa branded unit. It meets the same 72V 84V cut-off specification as the original.

Q: What happens if I accidentally order the wrong connector type?
A: The charger will not fit your scooter's charging port. Please check your port before ordering. We accept returns within 7 days if the item is unused and in original packaging.
