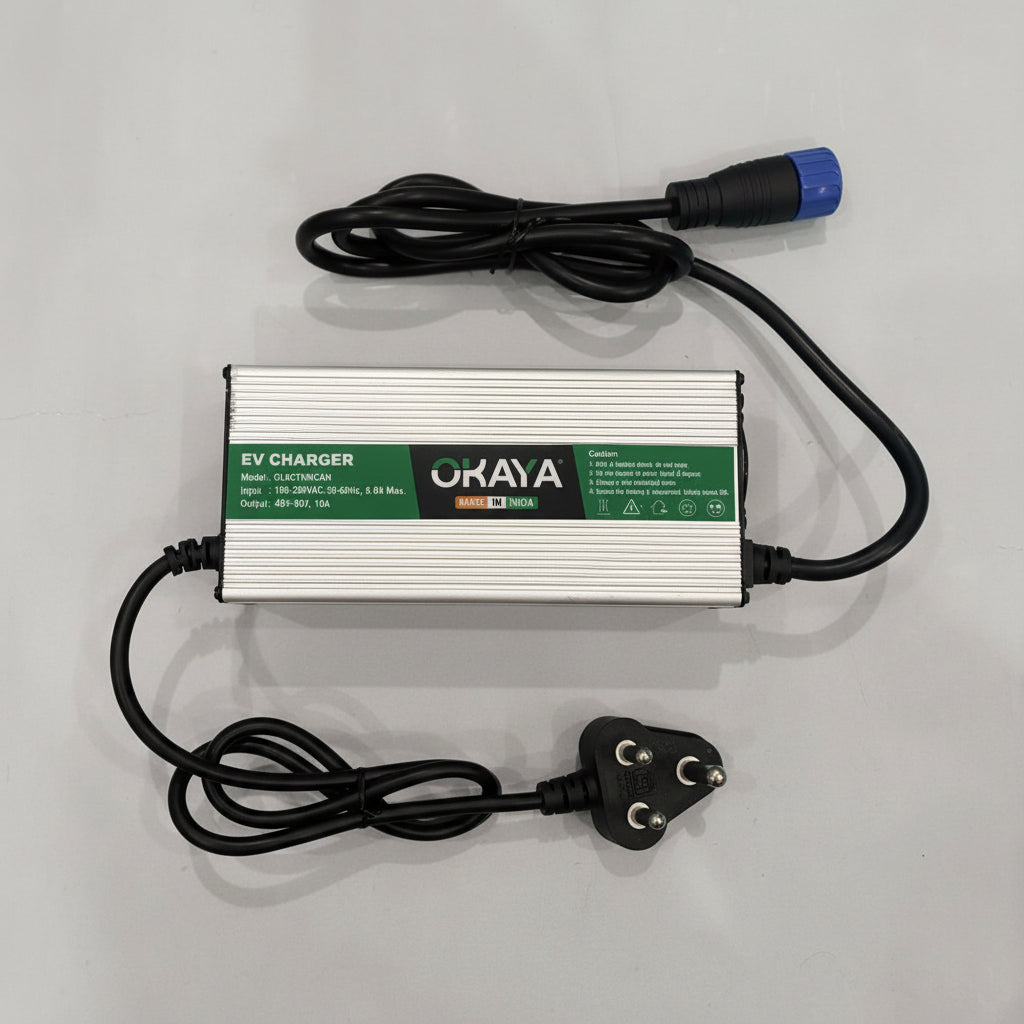

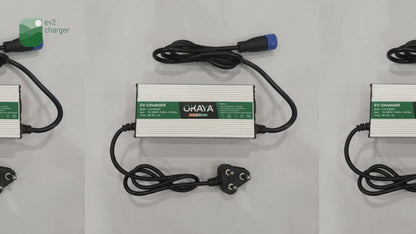

Okaya Electric Scooter Charger - 48V-90V 10A Lithium Battery Charger (CAN Protocol) - Model OLBC1KWCAN

Genuine Okaya EV Charger (Model OLBC1KWCAN) designed for high-performance electric scooters. This smart charger features a wide output range of 48V-90V and utilizes CAN Protocol communication to ensure precise and safe charging for Lithium-Ion battery packs. It is housed in a rugged aluminium metal casing for superior heat dissipation and durability.

Compatibility Note: This charger is designed for Okaya Electric Scooters supporting CAN communication and the specified voltage range. Please verify the connector type (Blue Chagori 2+4 Connector) with your scooter charging port before purchasing.

Key Highlights:

• Origin: Made in India
• Warranty: 6 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details)
• Delivery: 3-10 Days

Technical Features:

• Smart CAN Communication: Communicates directly with the battery BMS for optimized charging.
• Wide Voltage Range: Automatically adjusts between 48V and 90V based on battery requirements.
• Robust Build: Aluminium extrusion body acts as a heatsink for efficient cooling.

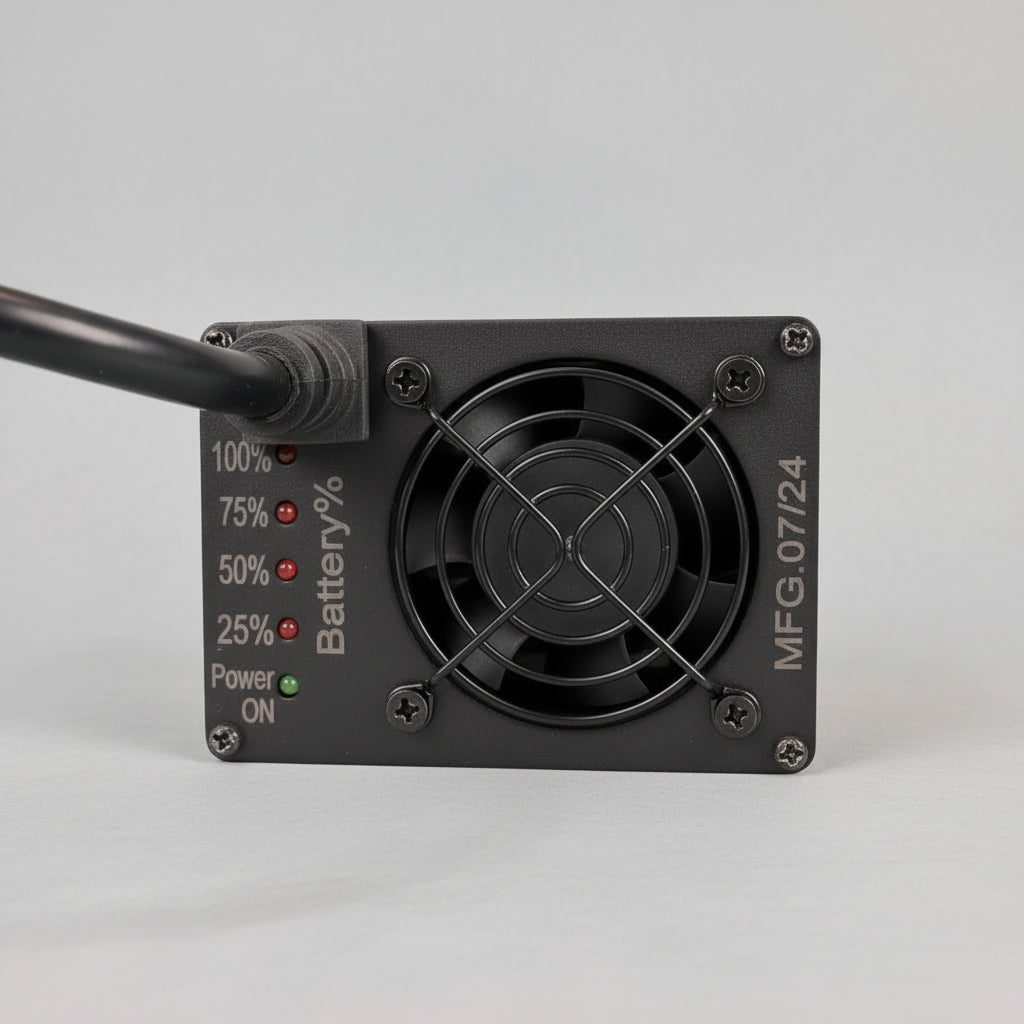

• LED/Status Indication: Integrated status indicators (as per model design).
• SMPS Technology: High-efficiency switching power supply.
• Safety Standard: Designed with IP protections against dust and moisture (Indoor use recommended).

Mechanical Details:

• Body Material: Aluminium Metal Case

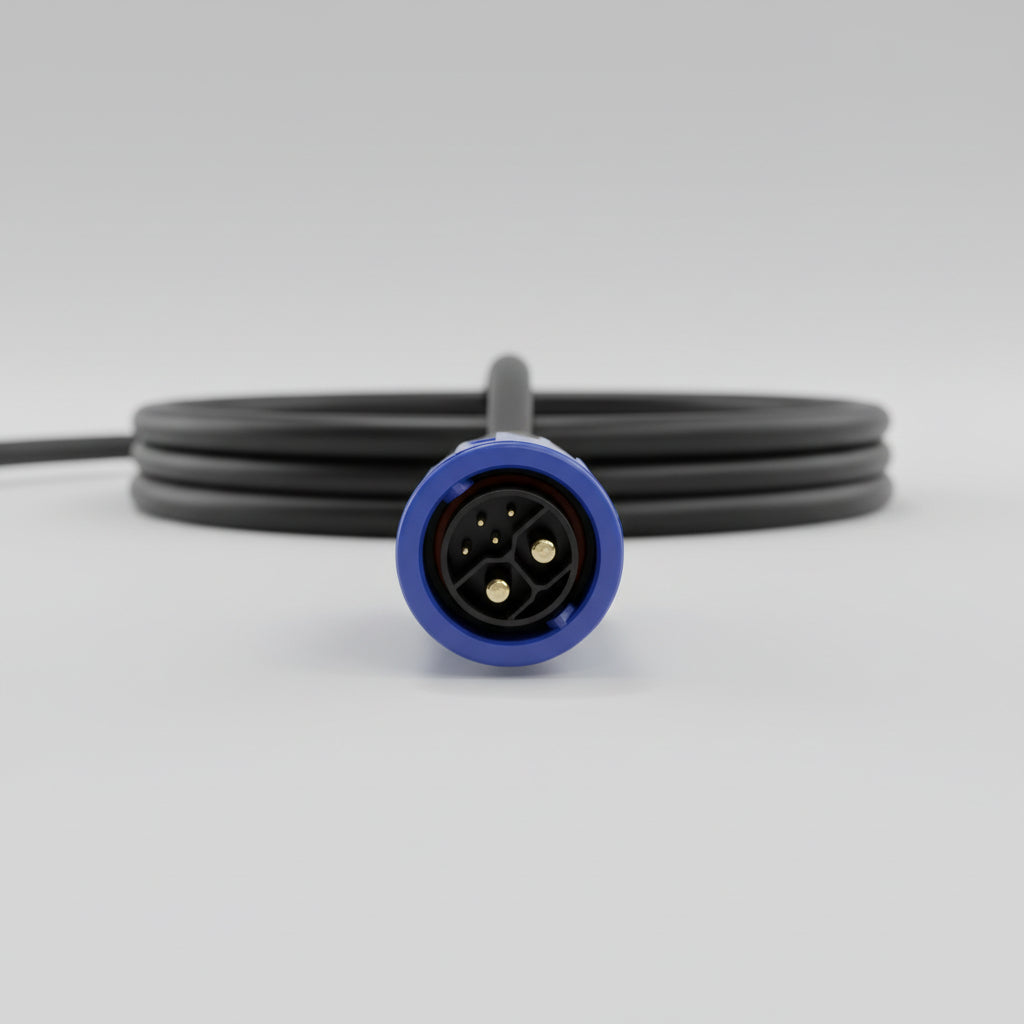

• Connector Type: Chagori 2+4 Connector (Round Blue Ring/Tip)
• Cooling: Passive cooling via metal heatsink fins (Silent operation)

Specification:

Input:

• Input Voltage: 180V - 280V AC
• Frequency: 50 - 60 Hz
• Max Input Current: 8.0 Amps

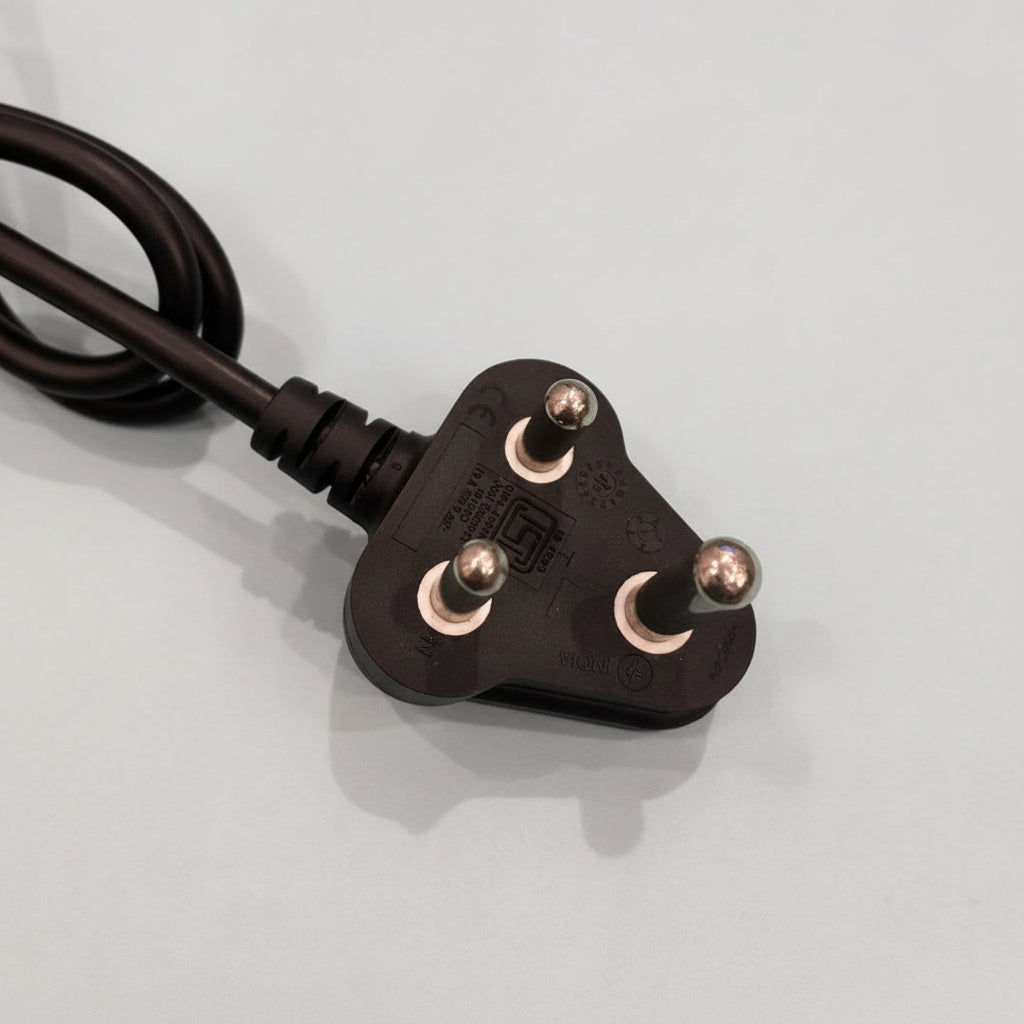

• Note: Connect input mains supply cord to a standard wall socket with proper grounding.

Output:

• Output Voltage: 48V - 90V DC (Variable via CAN)
• Output Current: 10 Amps
• Model: OLBC1KWCAN

Safety Instructions:

• Connection Sequence: Ensure the battery is connected to the charger before turning on the mains power.
• Risk of Shock: Do not open or tamper with the charger unit.
• Environment: Do not expose to water, rain, or other liquids. Charge in a dry, well-ventilated area.
• Heat Warning: The metal body may become warm during charging; this is normal heat dissipation.

Protection:

• Over Temperature Protection
• Output Short Circuit Protection
• Output Overload Protection
• Reverse Polarity Protection

Warranty Terms: We provide service and care; the battery charger shall be free from material and workmanship defects for 6 months from the date of original invoice.

This warranty is void if:

• Serial number or seal is removed or tempered with.
• The charger shows signs of physical damage, abuse, or misuse.
• The unit has been opened or repaired by unauthorized personnel.
• Damage is caused by water, fire, or high-voltage power surges.
• The charger is used with an incompatible battery or vehicle.
