84V 10A Lithium Battery Charger for Okaya Faast - Non-CAN, IEC Connector

Reliable 84V 10A lithium battery charger for 72V Okaya electric scooters. This is the non-CAN version with a standard IEC 3-pin female connector, built on SMPS technology with forced-air cooling for dependable everyday charging.

Compatible Okaya Models: Okaya Faast, Okaya Faast F3, and Okaya Faast F4 — 72V Okaya Faast scooters that use the IEC (non-CAN) charging connector. For the Faast F2B, F2F, and F2T, please check your charging port first, as some units may use the Blue Chagori (CAN) connector instead.

Important — Check Your Connector: If your scooter uses a Blue Chagori 2+4 connector, this charger will not fit. In that case order our Okaya CAN Protocol charger (Model OLBC1KWCAN) instead. Please verify your charging port and connector type before ordering.

Key Highlights:

• Origin: Made in India
• Warranty: 12 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (see Refund Policy for details)
• Delivery: 3–10 Days

Technical Features:

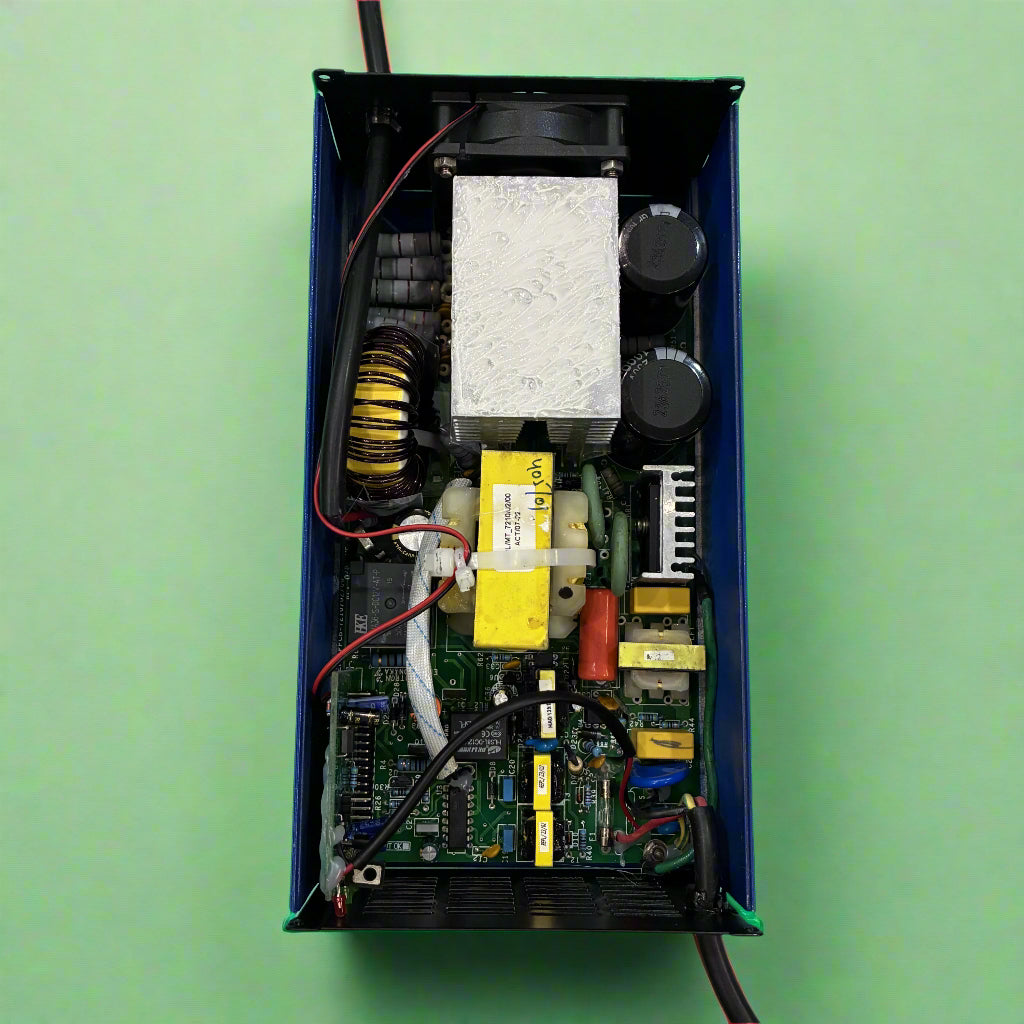

• SMPS-based technology for high efficiency and reliability
• Forced air cooling via built-in DC fan
• LED indication for Mains ON and charging status
• 100% full-load burn-in tested
• High-reliability build

Mechanical Details:

• Dimensions (L×W×H): 265 × 140 × 65 mm
• Weight: 2.4 kg

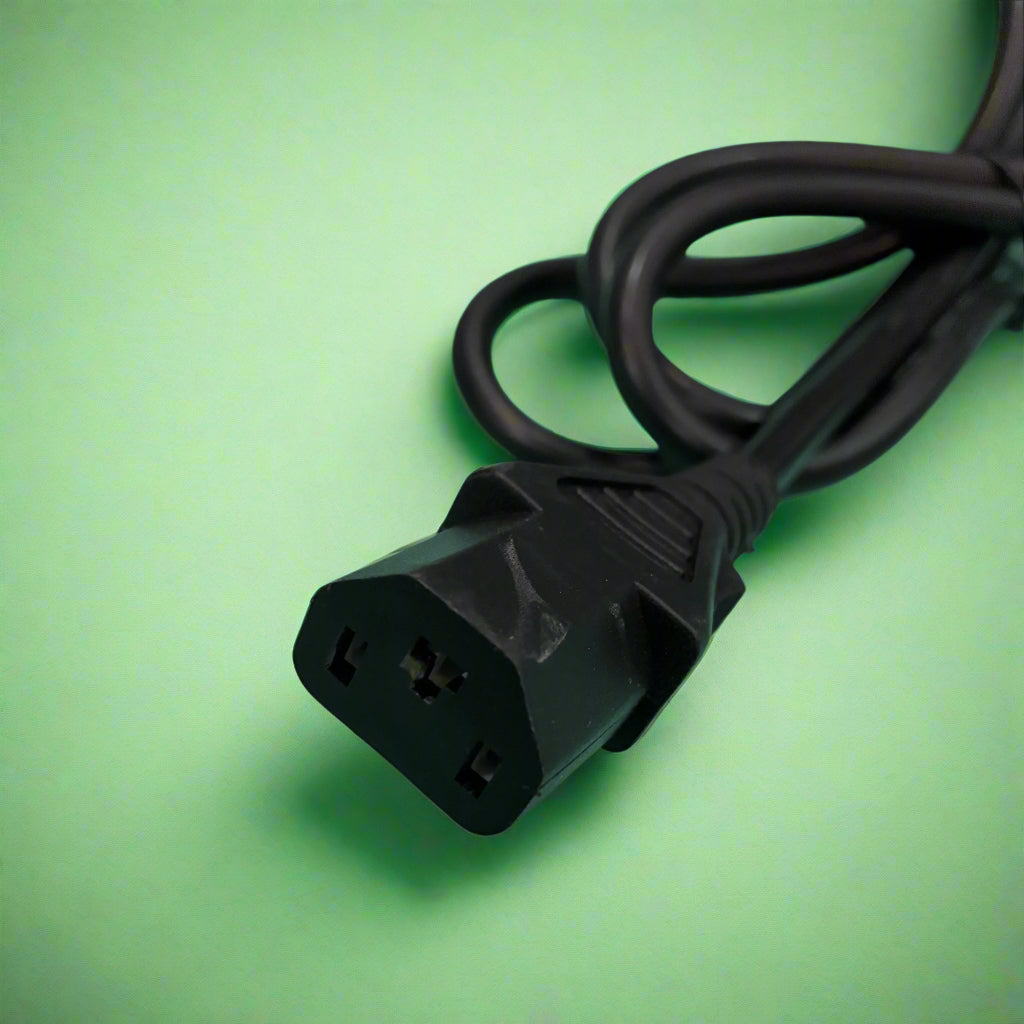

• Connector Type: IEC 3-Pin Female Connector
• Cooling: Forced-air (built-in DC fan)

Specification

Input:

• Input Voltage: 230V AC
• Frequency: 50 Hz
• Max Input Current: 5 Amps
• Connect to a properly grounded wall socket; ensure Earth is connected.

Output:

• Output Voltage: 84V DC
• Output Current: 10 Amps
• Efficiency: greater than 85%

Safety Instructions:

• Connect the charger output to the battery before switching on mains power.
• Match polarity: battery +ve to charger +ve, battery −ve to charger −ve.
• Do not touch uninsulated output wires.
• Charge in a dry, well-ventilated area; do not expose to water or rain.

Protection:

• Output Short Circuit Protection
• Over Temperature Protection
• Output Overload Protection
• Battery Reverse Polarity Protection

Warranty Terms: The battery charger shall be free from material and workmanship defects for 12 months from the date of original invoice. Warranty is void if the serial number is missing or tampered with, or in cases of abuse, misuse, unauthorized repair, improper (AC in place of DC) connection, or damage from fire, water, dust, or power surge.
