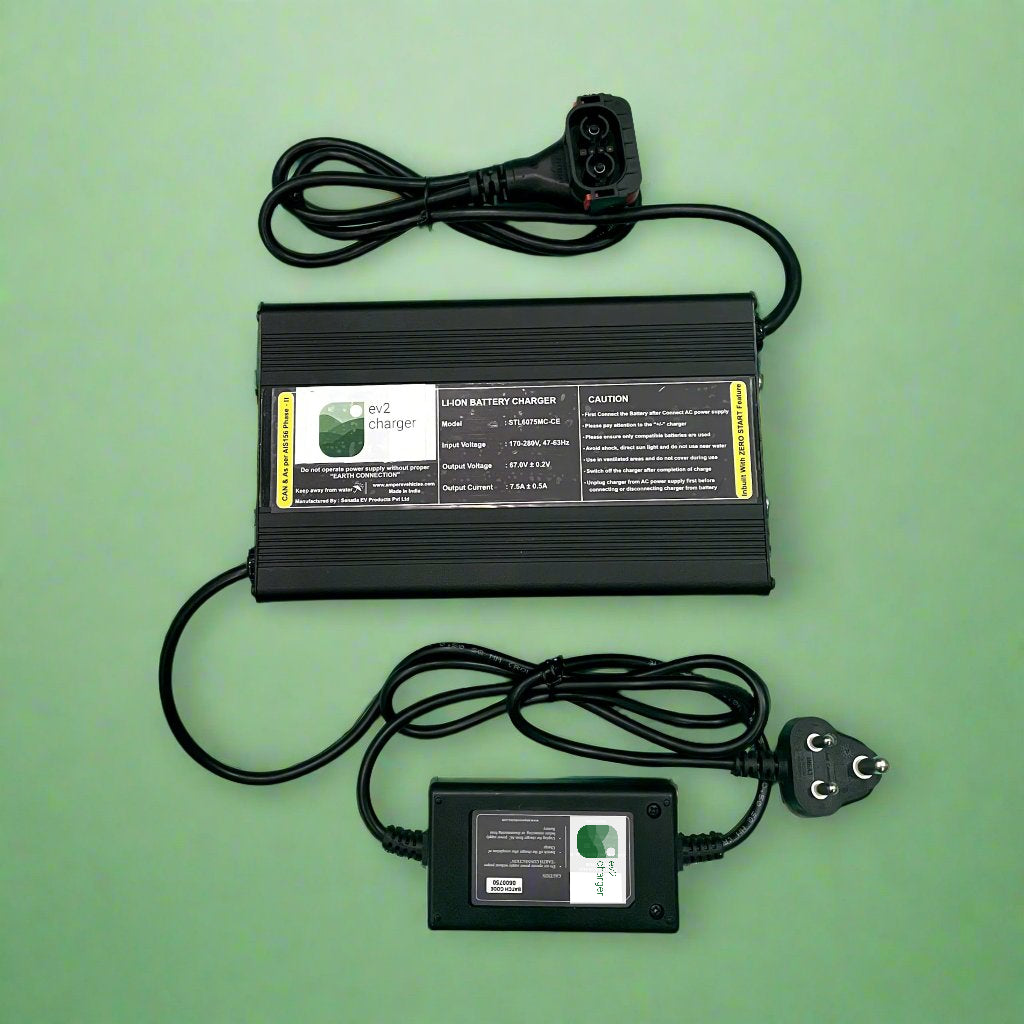

Ampere Electric Scooter Charger - 67V 7.5A Lithium Battery Charger (CAN Protocol Phase 2) - Magnus Ex & Zeal Ex

Original Ampere Electric Scooter Charger, Model STL6075MC-CE. This advanced charger is fully compliant with AIS 156 Phase 2 standards and features CAN Protocol communication. It is designed for the Ampere Magnus Ex and Zeal Ex (2023/2024 models) and comes equipped with a dedicated Earth Leakage Detector module for enhanced safety.

Compatibility Note:

• Vehicle: Ampere Magnus Ex & Zeal Ex (Phase 2 models).

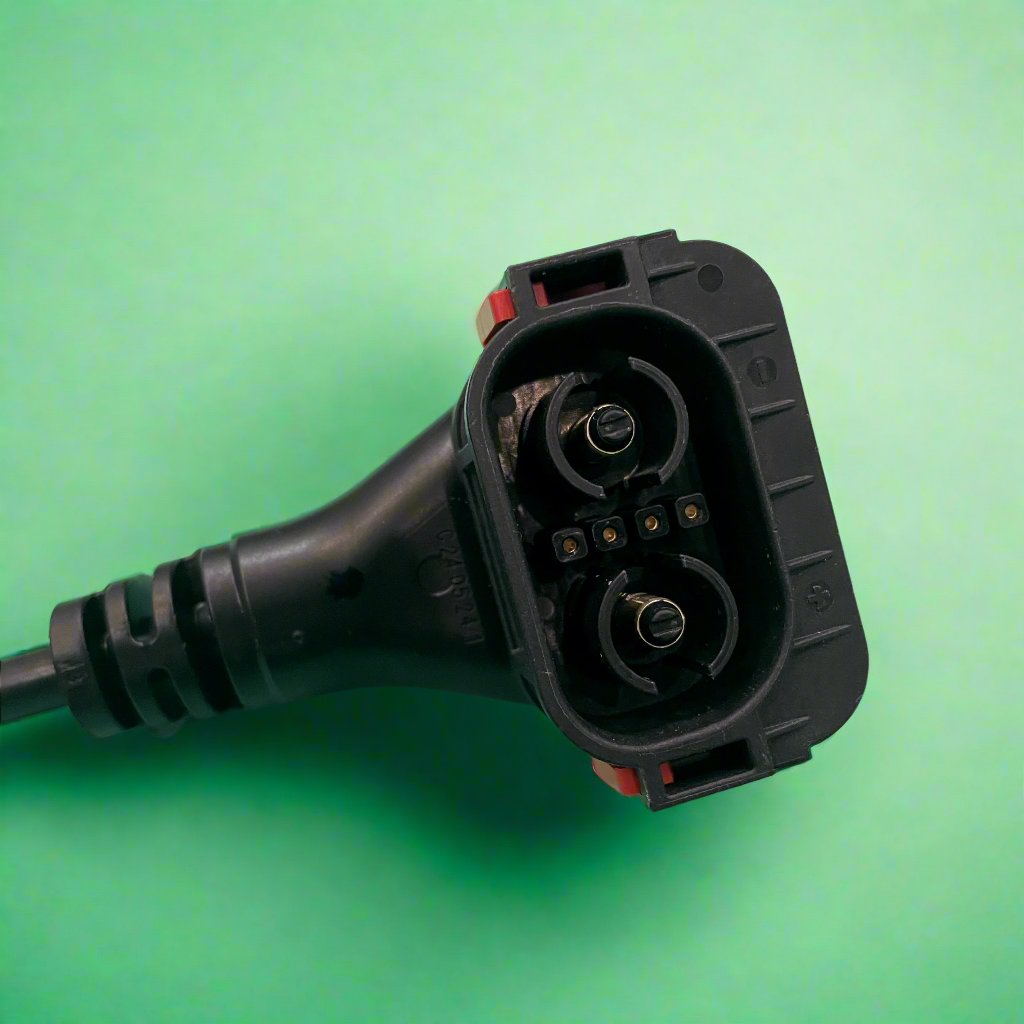

• Connector: Amphenol 2+4 Pin (Rectangular connector with 2 large power pins and 4 small signal pins).
• Warning: Not compatible with older models using the round XLR connector.

Key Highlights:

• Origin: Made in India
• Warranty: 6 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy)
• Delivery: 3-10 Days

Technical Features:

• AIS 156 Phase 2 Compliant: Meets the latest safety standards for EV chargers.
• Zero Start Feature: Inbuilt capability to charge deeply discharged batteries.

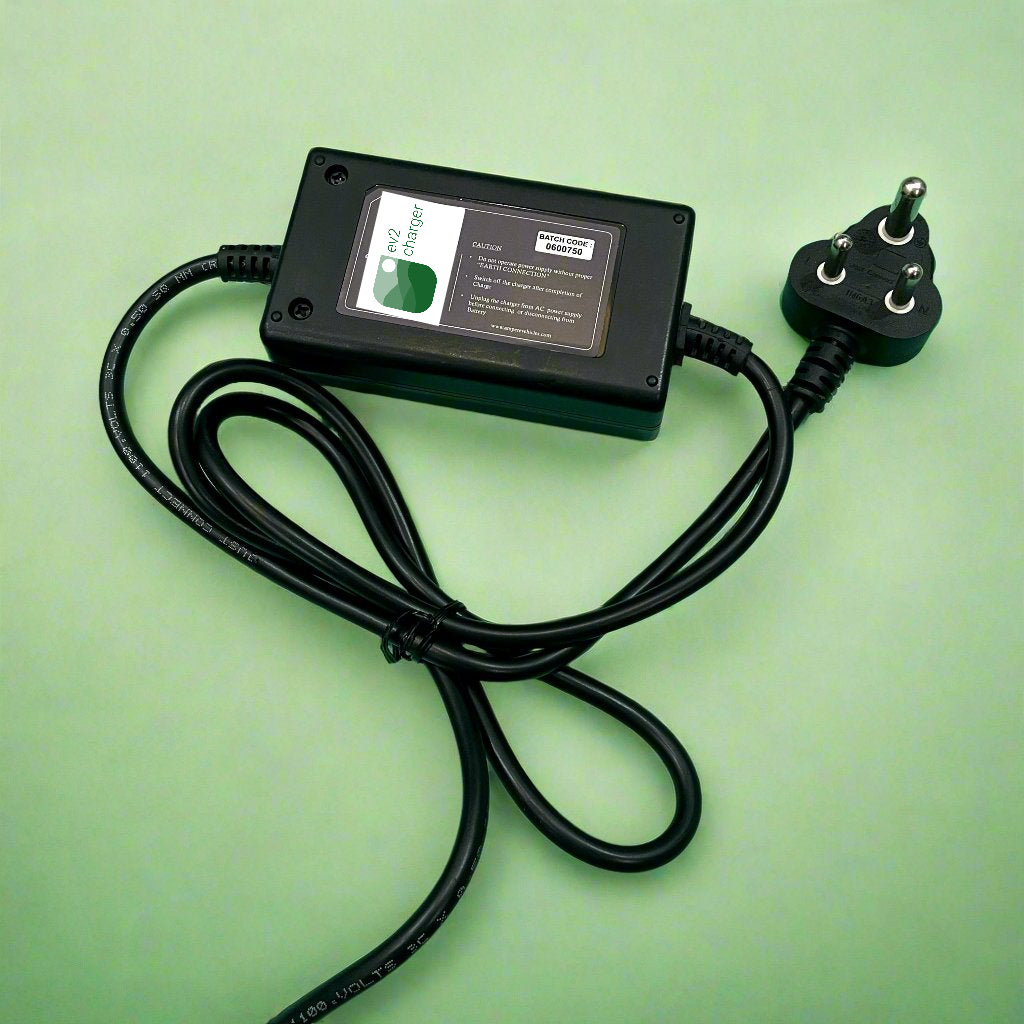

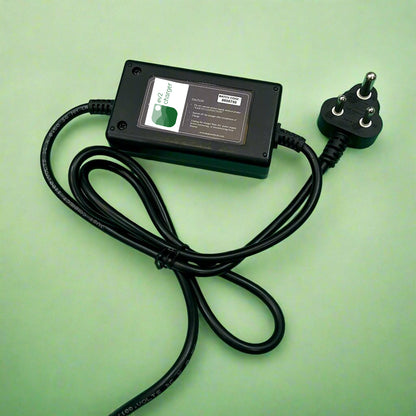

• Earth Leakage Detector: Specialized inline protection device on the AC cord to prevent shock hazards.
• Smart CAN Communication: Ensures precise charging by communicating with the battery BMS.

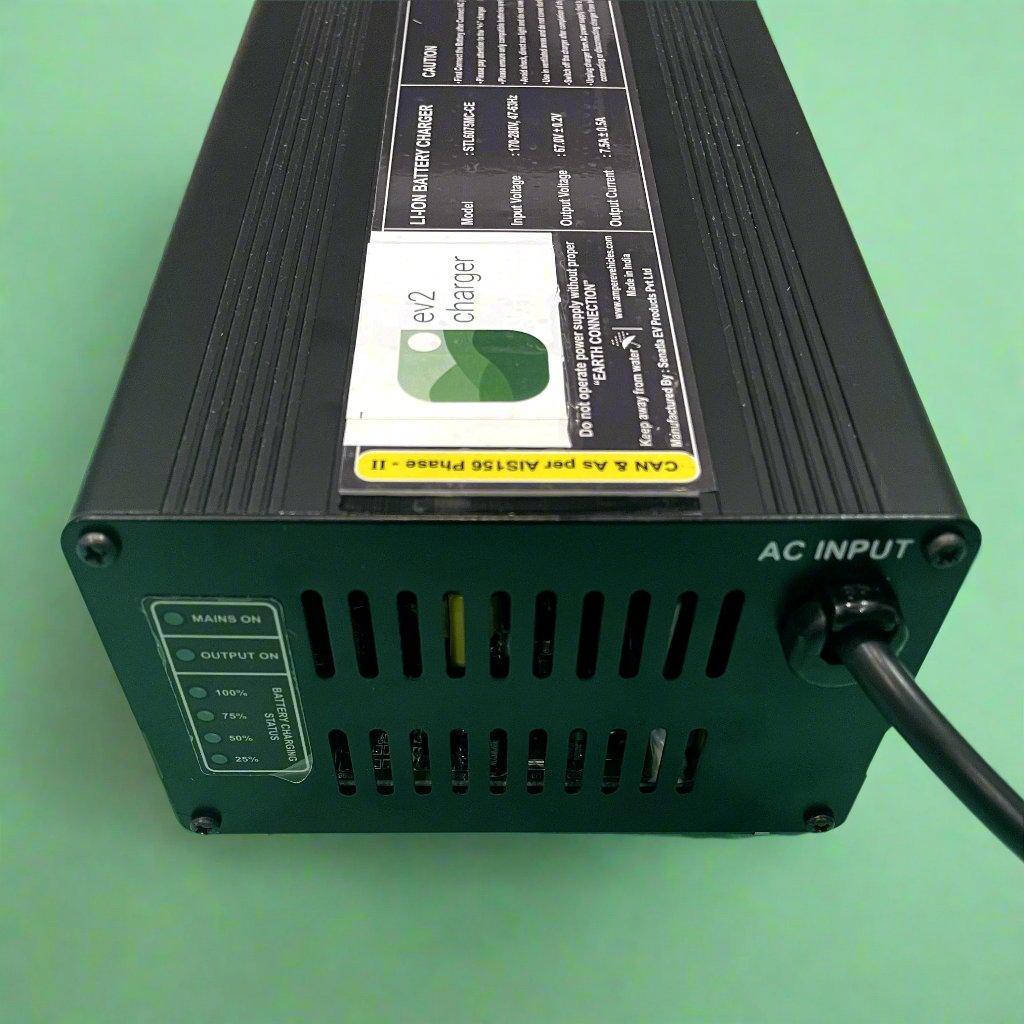

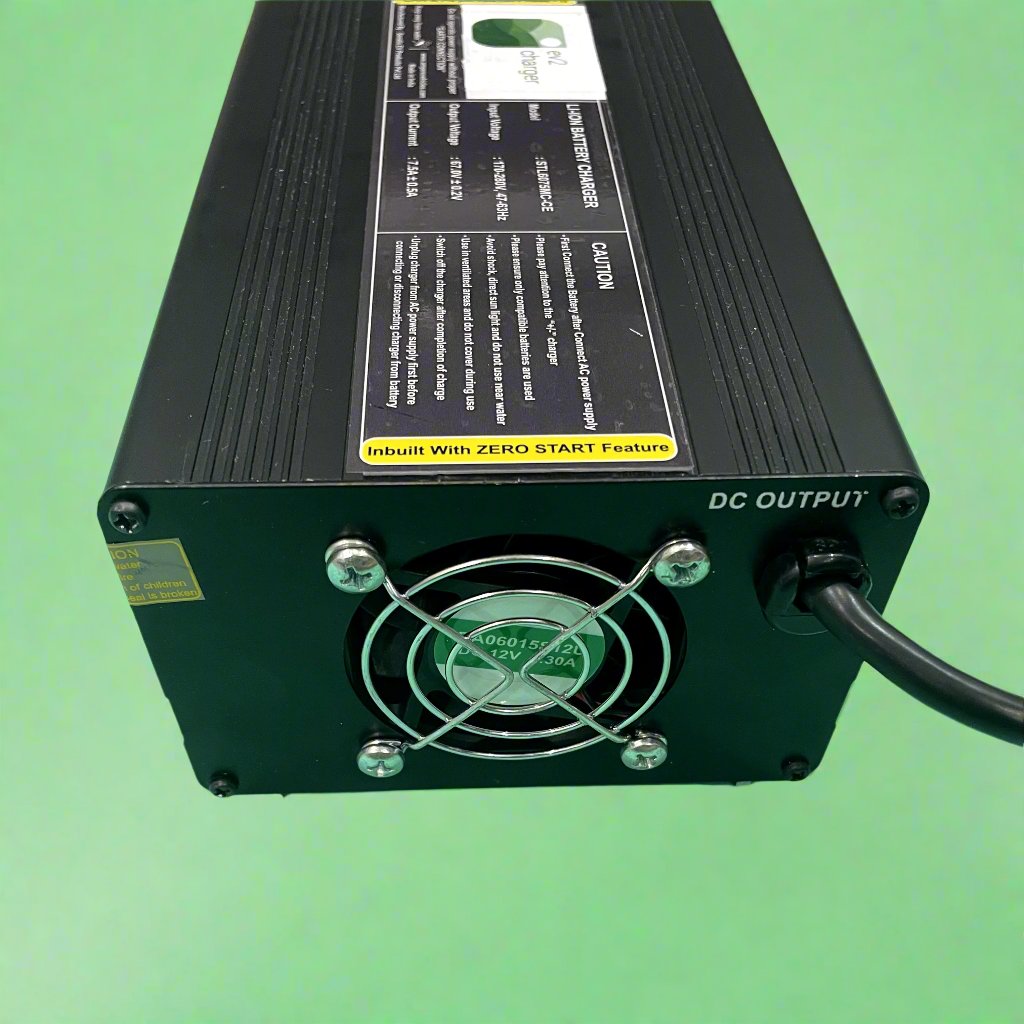

• Robust Build: Black metal casing with active cooling.

Mechanical Specifications:

• Dimensions: Standard (approx. 22 x 12 x 8 cm)
• Weight: ~2.1 Kg
• Connector Type: Amphenol (2+4 Pin)

Electrical Specifications:

Input:

• Input Voltage: 170V - 280V AC
• Frequency: 47 - 63 Hz
• Connection: Standard 3-Pin Plug with Earth connection

Output:

• Output Voltage: 67.0V ± 0.2V DC
• Output Current: 7.5A ± 0.5A
• Model: STL6075MC-CE

Safety Instructions:

• Grounding Essential: Do not operate the power supply without a proper "EARTH CONNECTION".
• Water Warning: Keep away from water; do not expose to rain or moisture.
• Disconnection: Always unplug the charger from the AC power supply before connecting or disconnecting it from the battery.
• Usage: Use only in ventilated areas and do not cover during use.

Protection Systems:

• Earth Leakage Detection
• Output Short Circuit Protection
• Over-Temperature Protection
• Output Overload Protection

Warranty Terms: We provide service and care. This battery charger is warranted to be free from defects in material and workmanship for a period of 6 months from the date of the original invoice.

This warranty is void if:

• Serial number or seal is missing or tampered with.
• Physical damage occurs due to dropping, misuse, or tampering.
• The Earth Leakage Detector or cables are damaged due to negligence.
• Damage is caused by water, fire, or voltage surges.
• Used with an incompatible battery or vehicle.
