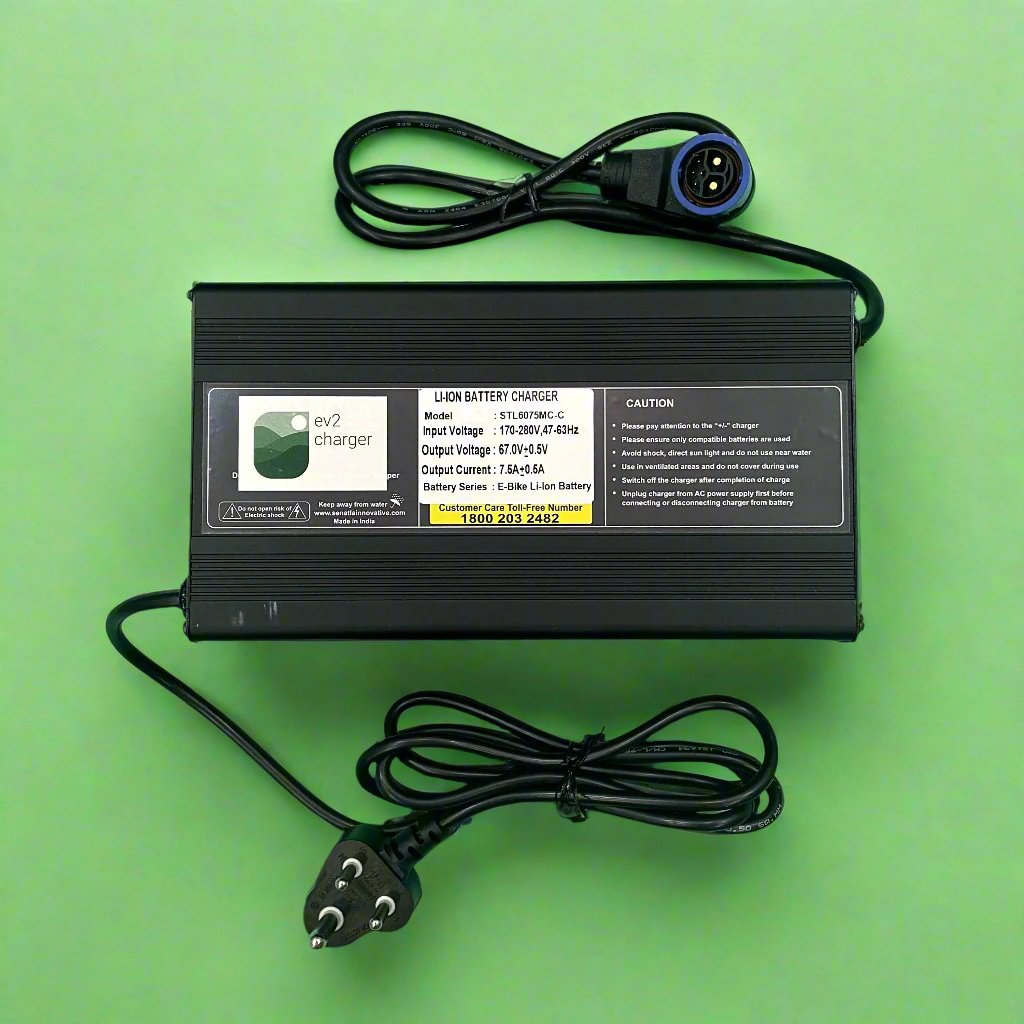

Ampere Magnus Ex & Zeal Ex Charger – 67V 7.5A CAN Phase 1 (Chagori 2+4 Pin)

Original Ampere Electric Scooter Charger, Model STL6075MC-C. Designed specifically for Ampere Magnus Ex and Zeal Ex 2023 models (CAN Protocol Phase 1). Features a Chagori 2+4 Pin circular connector with blue inner ring, engineered for 60V Lithium-Ion battery packs. Includes Zero Start feature and robust SMPS technology for reliable daily charging.

Compatibility:

• Vehicles: Ampere Magnus Ex and Zeal Ex — Phase 1 (2023 models)
• Connector: Chagori 2+4 Pin circular connector with blue inner ring
• Model check: Verify your existing charger model is STL6075MC-C or compatible
• ⚠️ NOT compatible with Phase 2 models (2024+) that use the rectangular Amphenol connector

Key Highlights:

• Origin: Made in India
• Warranty: 6 Months from date of purchase
• Return Policy: 7 Days Return/Replacement
• Estimated Delivery: 3–10 Days

Technical Features:

• Zero Start: Charges batteries even from deeply discharged low-voltage states
• CAN Protocol: Communicates with the vehicle BMS for smart, safe charging

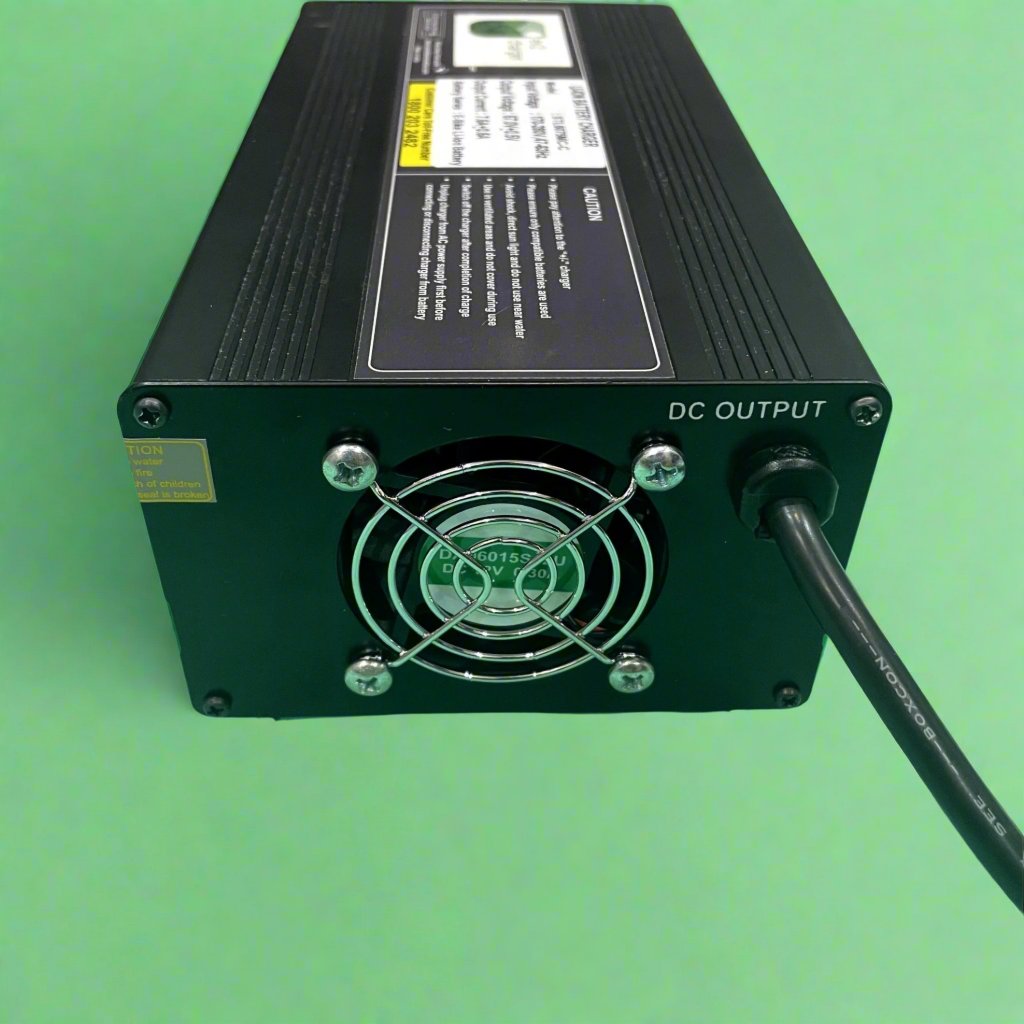

• Cooling System: Forced air cooling via built-in DC fan

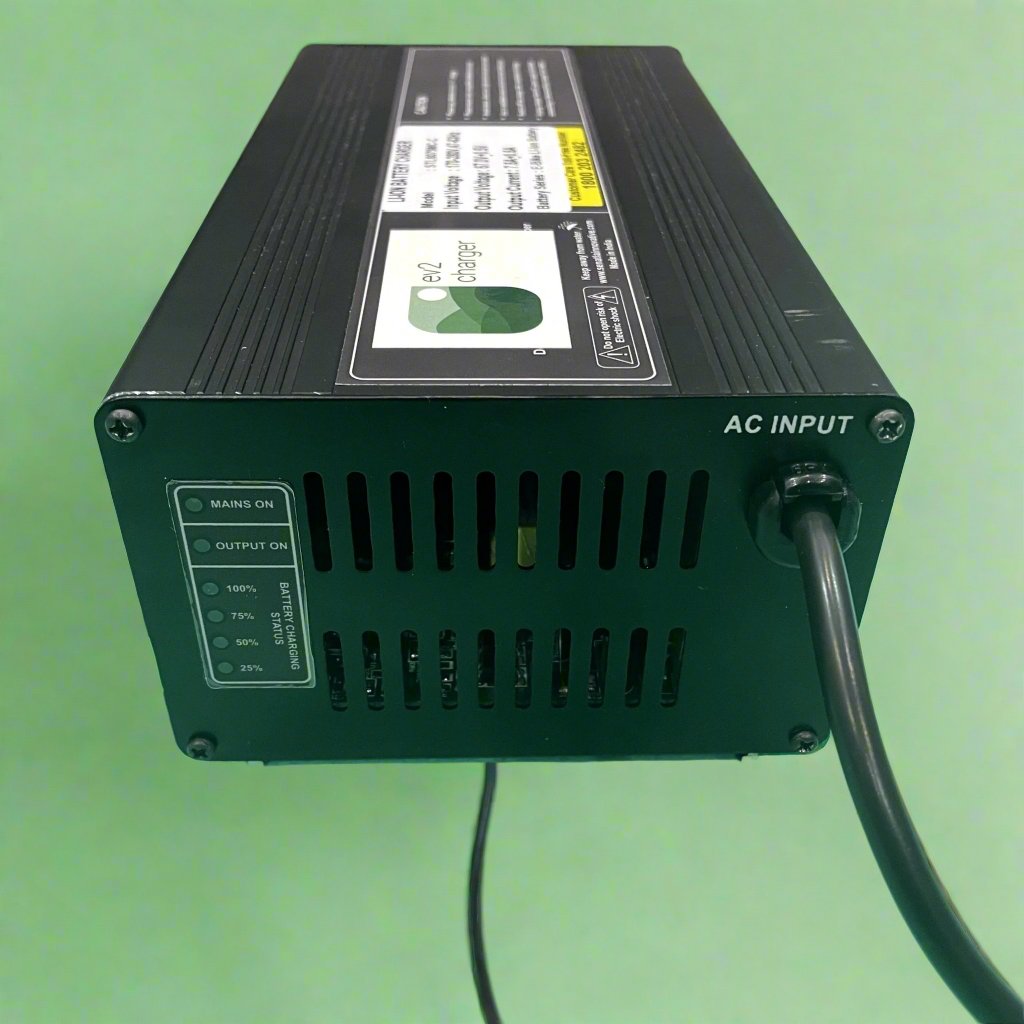

• LED Indicators: Mains ON, Output ON, and Charging Stage (25%, 50%, 75%, 100%)

Mechanical Specifications:

• Dimensions (L × W × H): ~22 cm × 12 cm × 8 cm
• Weight: ~1.8 kg
• Connector Type: Chagori 2+4 Pin circular connector with blue inner ring

Electrical Specifications:

Input:

• Input Voltage: 170V–280V AC
• Frequency: 47–63 Hz
• Max Input Current: 5A
• Note: Connect to a standard 5A wall socket with proper grounding.

Output:

• Output Voltage: 67.0V ± 0.5V DC
• Output Current: 7.5A ± 0.5A
• Battery Application: 60V Li-Ion
• Model: STL6075MC-C

Protection Systems:

• Output Short Circuit Protection
• Over-Temperature Protection
• Output Overload Protection
• Battery Reverse Polarity Protection

Safety Instructions:

• Ensure wall socket has a proper Earth (Ground) connection
• Connect DC output to battery before switching on AC mains
• Avoid shock, direct sunlight, and do not use near water
• Use in a well-ventilated area; do not cover the charger while in use

Warranty Terms: Warranted against defects in material and workmanship for 6 months from the original invoice date. Warranty void if serial number or seal is missing or tampered, or damage results from misuse, unauthorized repair, improper connection, or environmental factors.

🔍 Not sure this is the right charger for your Ampere scooter?

This charger fits the round Chagori 2+4 Pin connector found in:
✅ Ampere Magnus Ex (2023 models)
✅ Ampere Zeal Ex (2023 models)

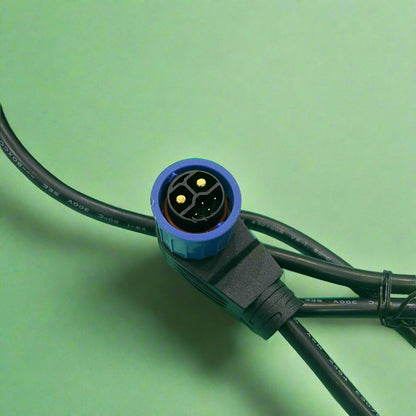

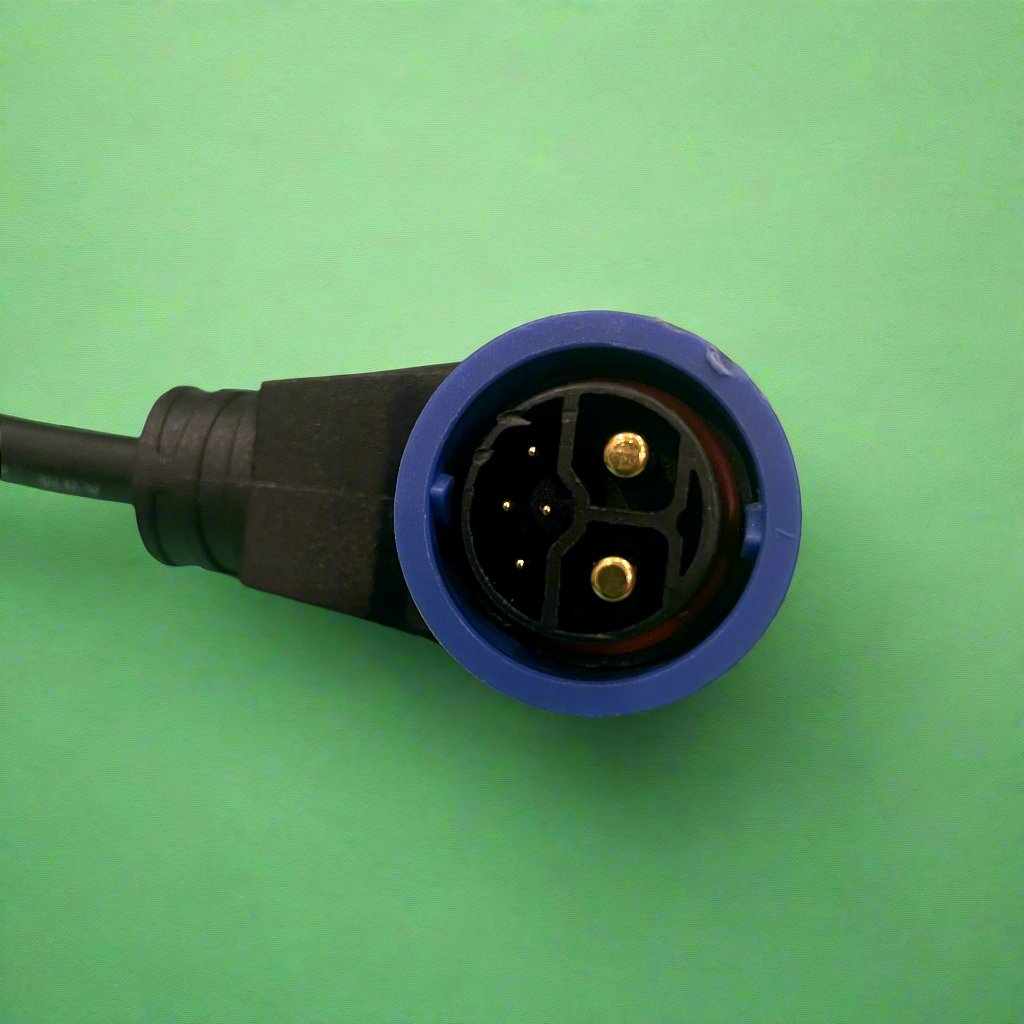

💡 The Chagori connector is round with a blue inner ring and 6 pins (2 large power + 4 small signal). If your connector looks different, you need a different charger.

Different connector?
→ Magnus Pro / Magnus Ex / Zeal / Zeal Ex (2020–2022) with XLR 3-Pin — See OEM Charger or See Budget Version
→ Magnus Neo / Grand / G Max / Magnus Ex / Zeal Ex (2024+) with Amphenol rectangular connector — See Phase 2 Charger
→ Reo / Reo Plus — See Charger
→ Browse all Ampere chargers & spare parts

❓ Frequently Asked Questions

Q: How do I know if I have Phase 1 or Phase 2?
A: Check your existing charger model number printed on the label. Phase 1 = STL6075MC-C (Chagori round connector). Phase 2 = STL6075MC-CE (Amphenol rectangular connector). If you can't find the label, look at the charging port on your scooter — round blue ring = Phase 1, rectangular slot = Phase 2.

Q: What does CAN Protocol mean?
A: CAN (Controller Area Network) Protocol means the charger communicates directly with your scooter's Battery Management System (BMS). This ensures smarter, safer charging — the BMS tells the charger exactly how to charge based on the battery's current state. A non-CAN charger will not work safely with these models.

Q: Will this work on my 2022 Magnus Ex?
A: The 2022 Magnus Ex uses the XLR 3-Pin MIC connector, not Chagori. See the correct charger here.

Q: Will this work on 2024+ Magnus Ex or Zeal Ex?
A: No — 2024+ models use Phase 2 with an Amphenol rectangular connector. See Phase 2 charger.

Q: My battery is completely dead. Will this revive it?
A: Yes — the Zero Start feature can activate and charge deeply discharged batteries that standard chargers cannot start.
