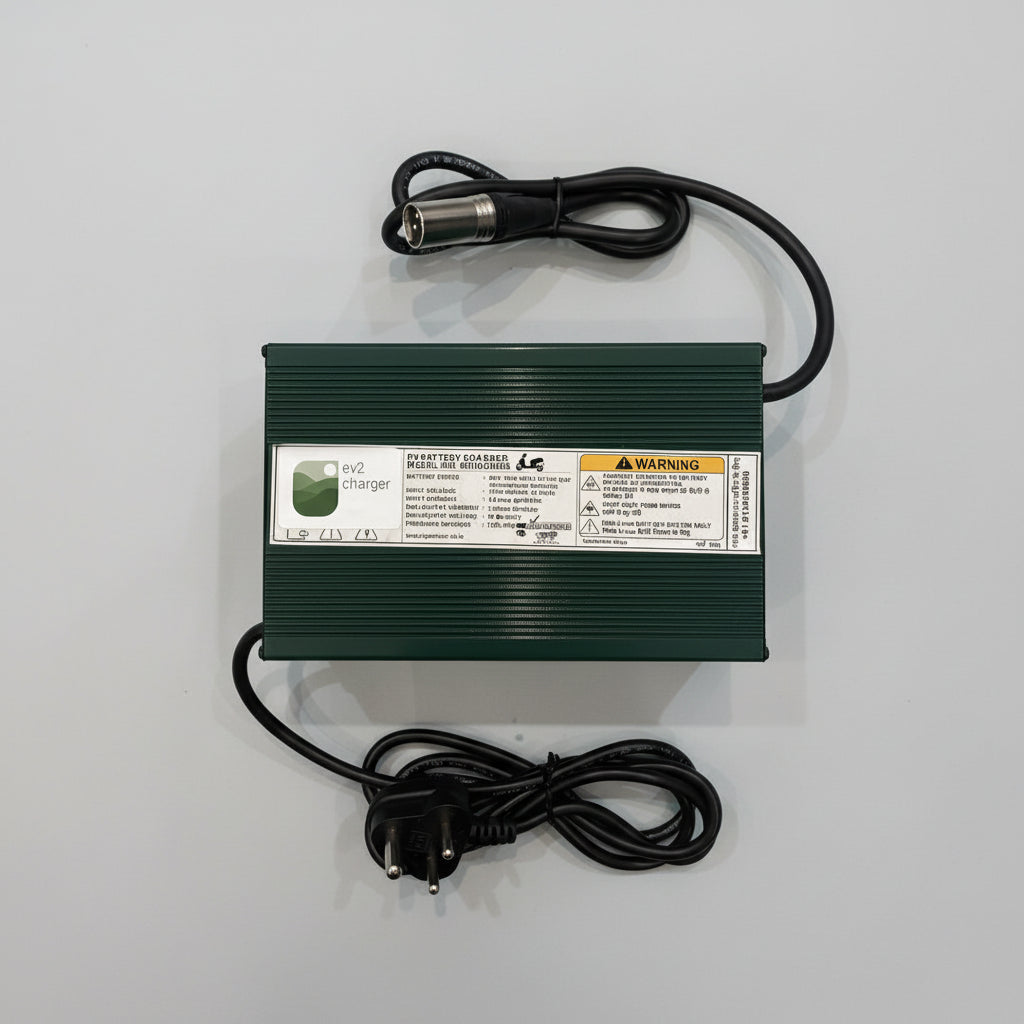

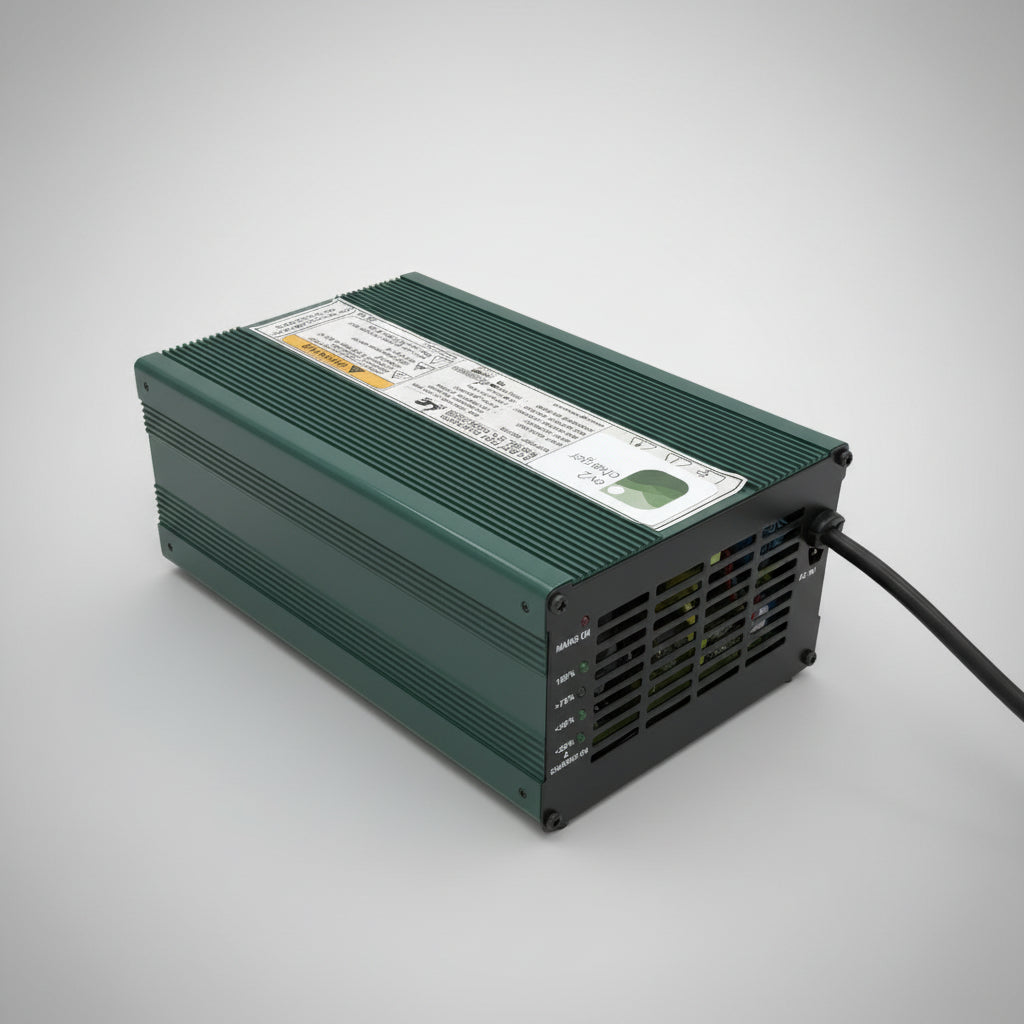

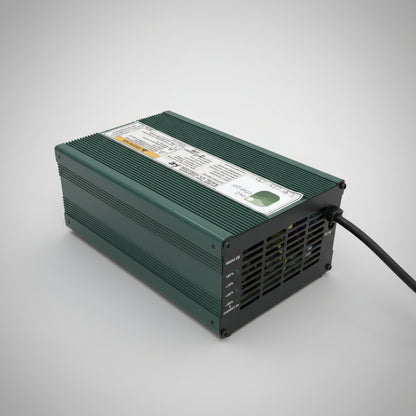

Ampere Electric Scooter Charger - 66.8V 7.5A Lithium Battery Charger - Magnus Pro, Magnus Ex, Zeal and Zeal Ex (New Improved Model STL6075MC)

Introducing the New Improved Model (STL6075MC) of the premium 66.8V 7.5A Lithium Battery Charger, designed specifically for Ampere Electric Scooters. This charger features a standard XLR 3-Pin Male Connector (commonly referred to as a Mic Connector) and is engineered for 60V Lithium-Ion battery packs.

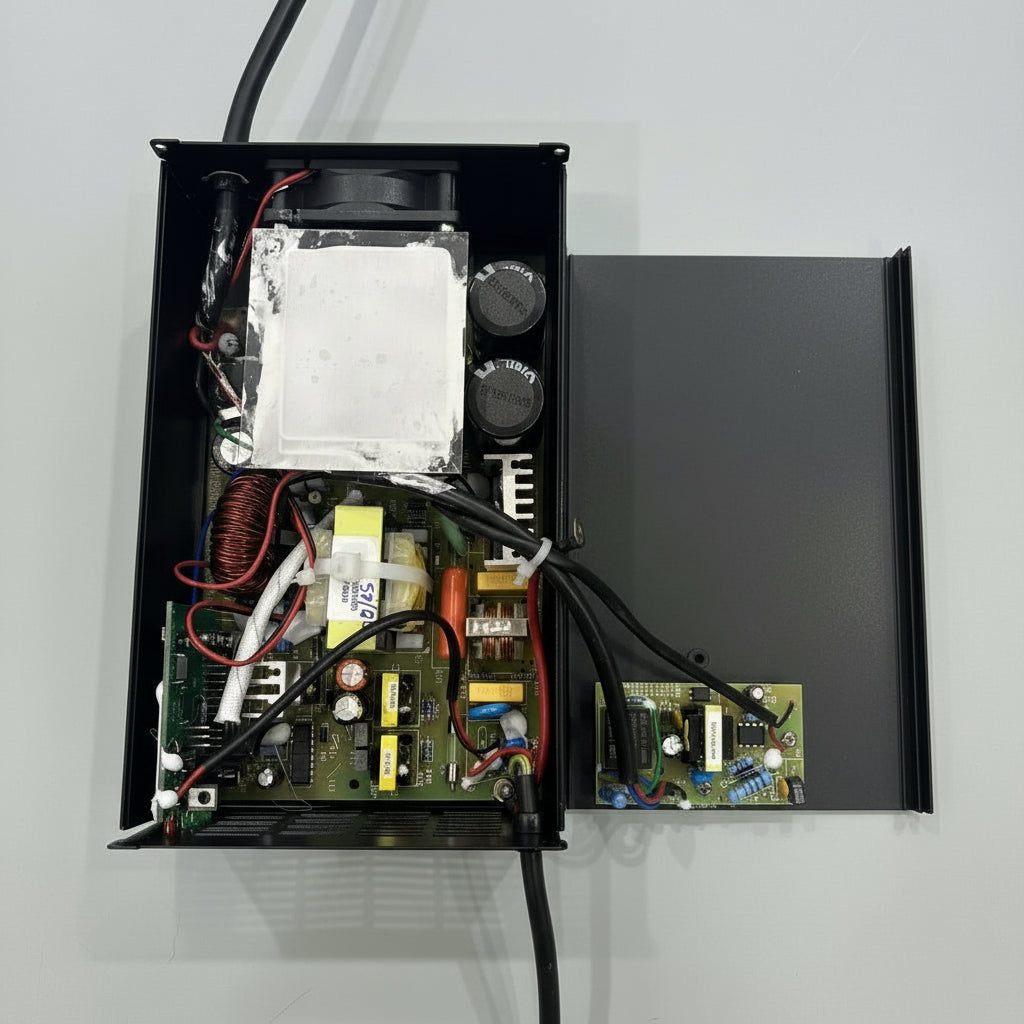

Equipped with an advanced Zero Start feature, this charger can activate and safely charge batteries even from low voltage states. Its robust SMPS technology and forced air cooling ensure efficient, cool operation, making it highly reliable for daily use.

Compatibility Note:

• Vehicle Compatibility: Specifically compatible with Ampere Magnus Pro, Magnus Ex, Zeal, and Zeal Ex (including 2020, 2021, and 2022 models).
• Connector Check: Please ensure your scooter charging port matches the XLR 3-Pin (MIC Type) Round connector. Note: This is NOT compatible with newer models using the square/rectangular Amphenol connector.

Key Highlights:

• Origin: Made in India
• Warranty: 12 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details)
• Estimated Delivery: 3-10 Days

Technical Features:

• Zero Start Feature: Smart capability to revive and charge deeply discharged batteries.
• SMPS Technology: High-efficiency switching power supply (>85% efficiency).

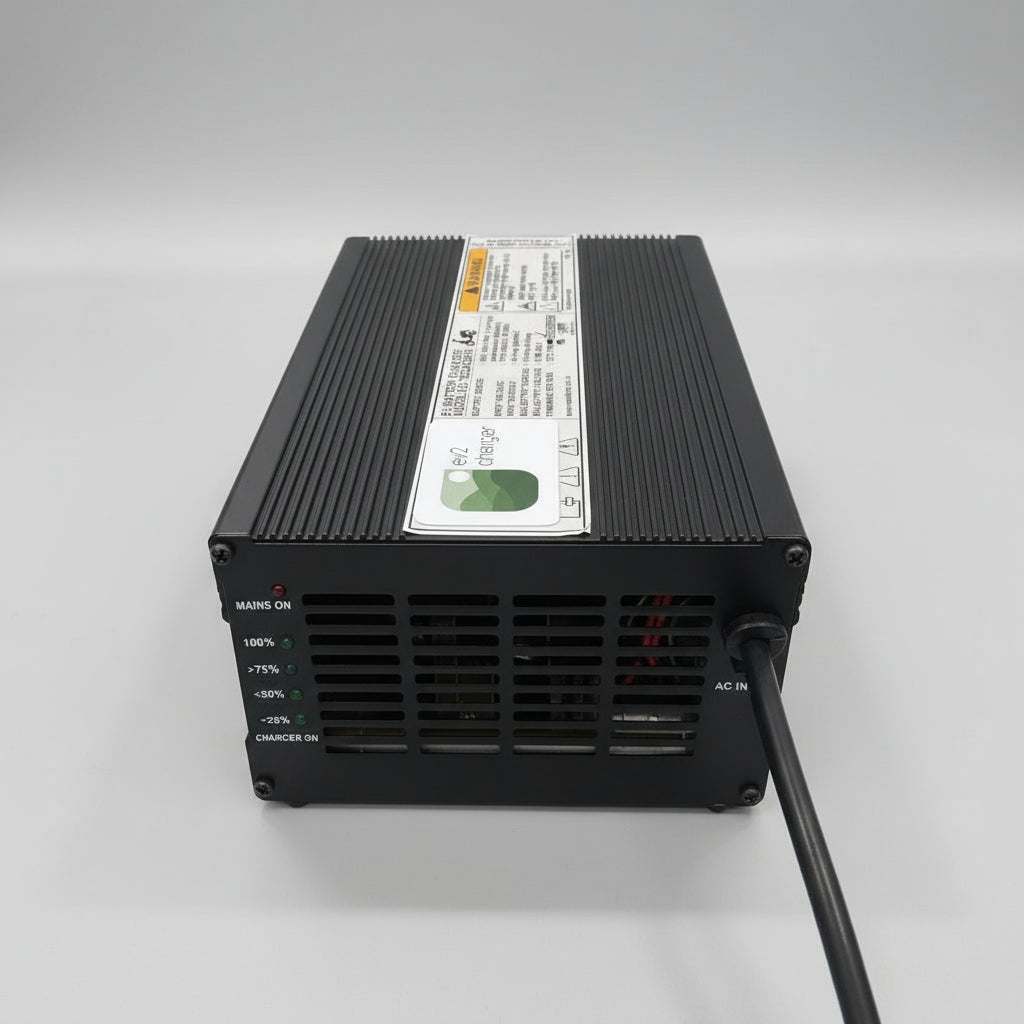

• Smart Indicators: Clear LED display for Mains ON, Output ON, and Charging Stages (25%, 50%, 75%, 100%).

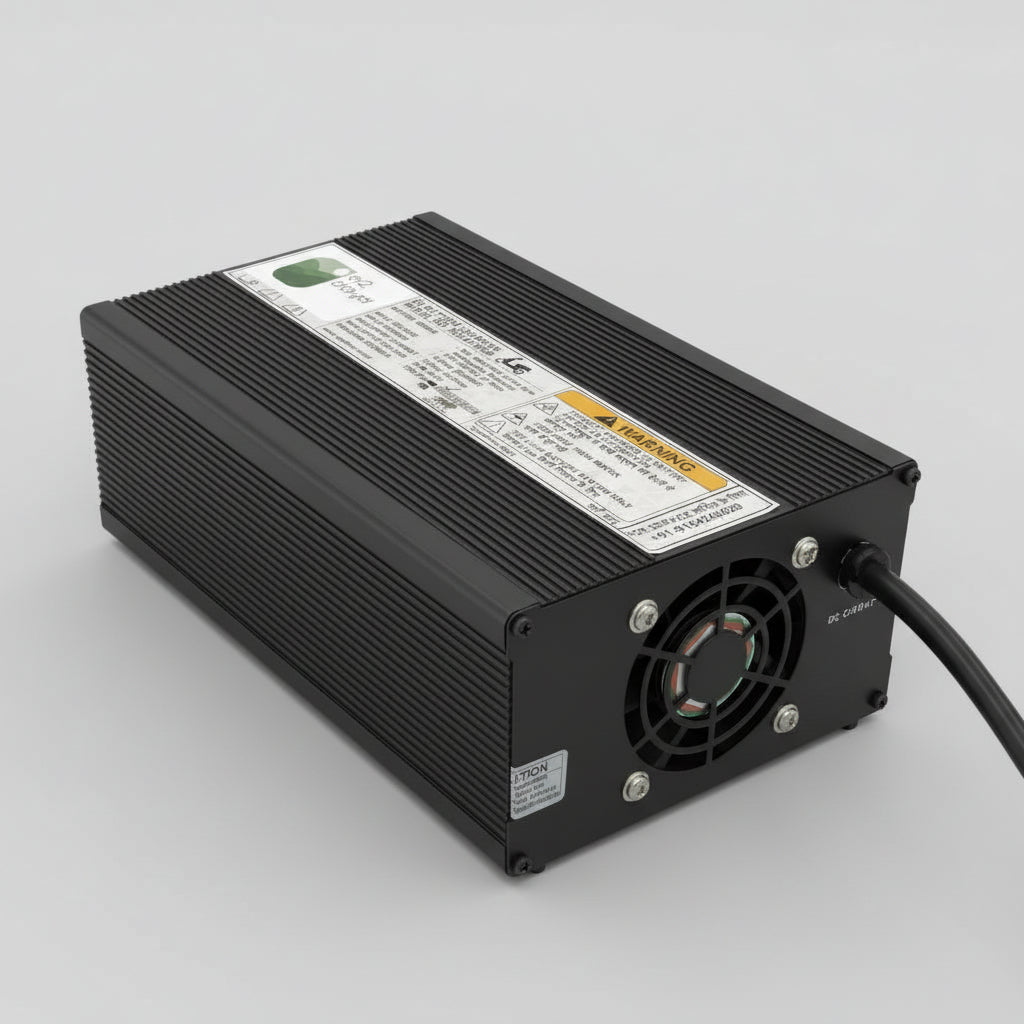

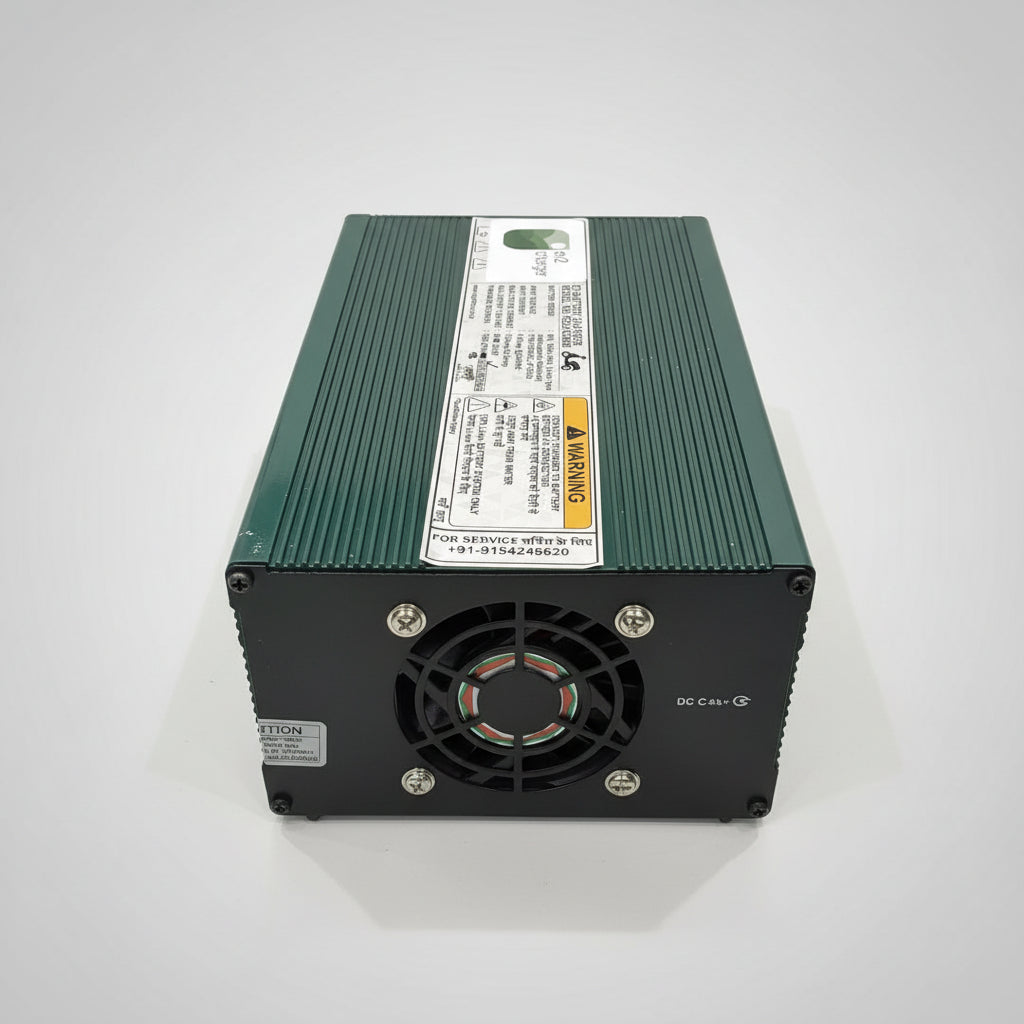

• Advanced Cooling: Built-in high-speed DC fan prevents overheating during charging.
• Wide Input Range: Designed to handle Indian voltage fluctuations (170V-300V).
• High Reliability: Rugged construction built for long-term durability.

Mechanical Specifications:

• Dimensions (L x W x H): 20 cm x 12.5 cm x 8 cm
• Weight: 1.75 Kg

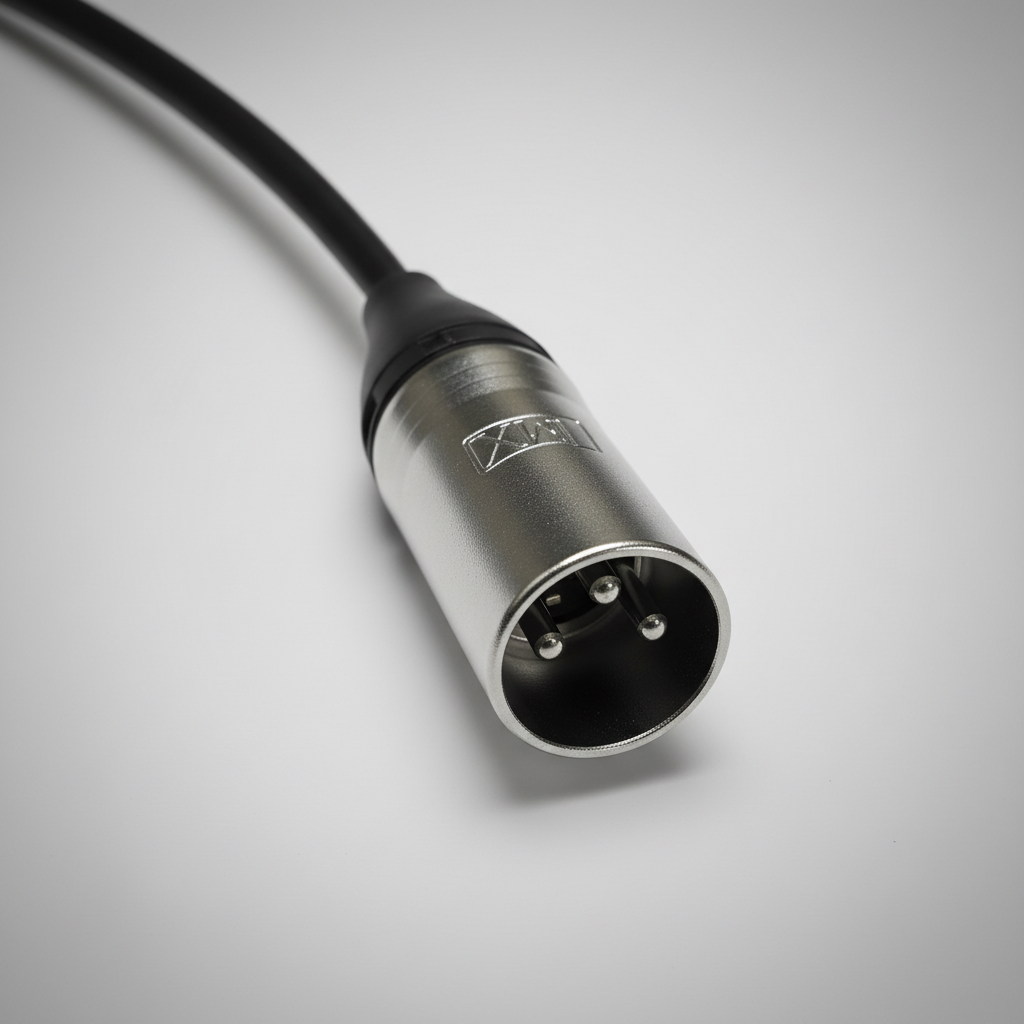

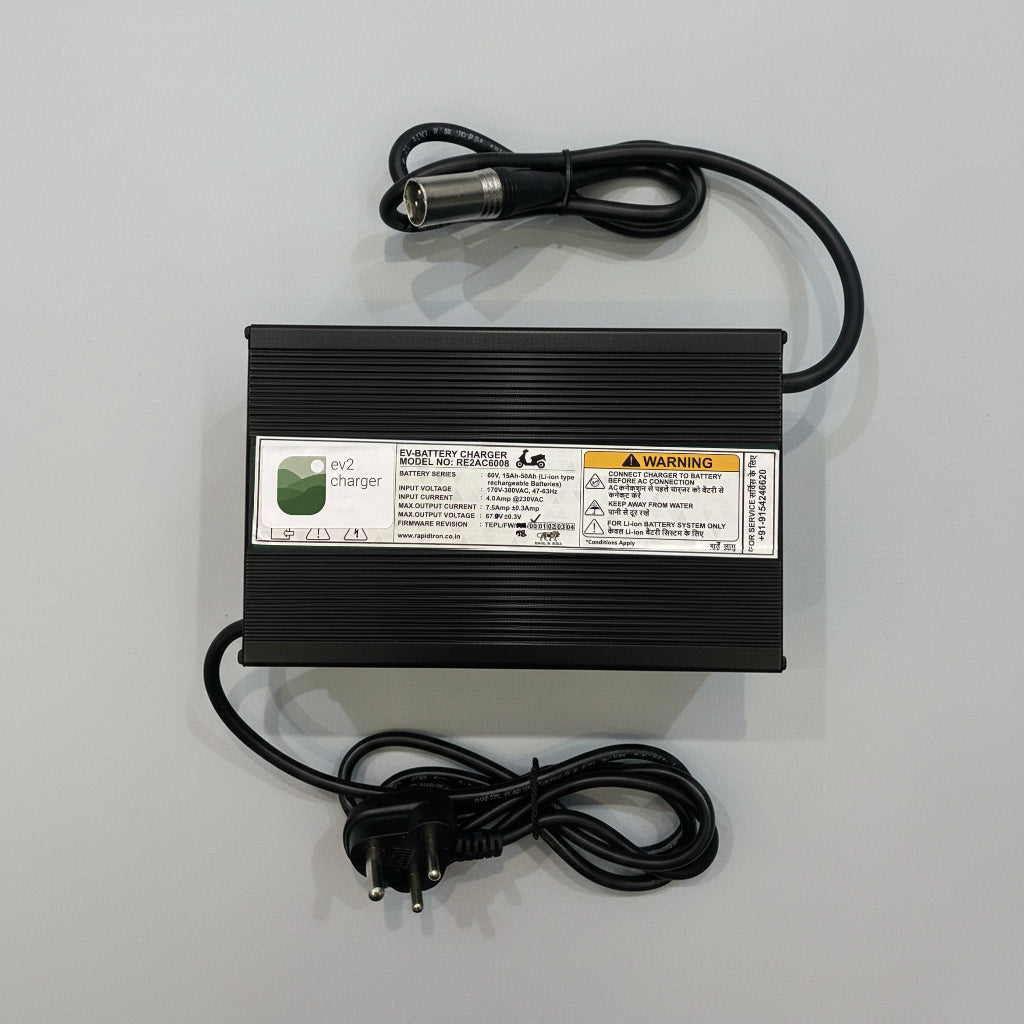

• Connector Type: XLR 3-Pin Male (MIC Connector)

Electrical Specifications:

Input:

• Input Voltage: 170V - 300V AC
• Frequency: 47 - 63 Hz
• Max Input Current: 4 Amps

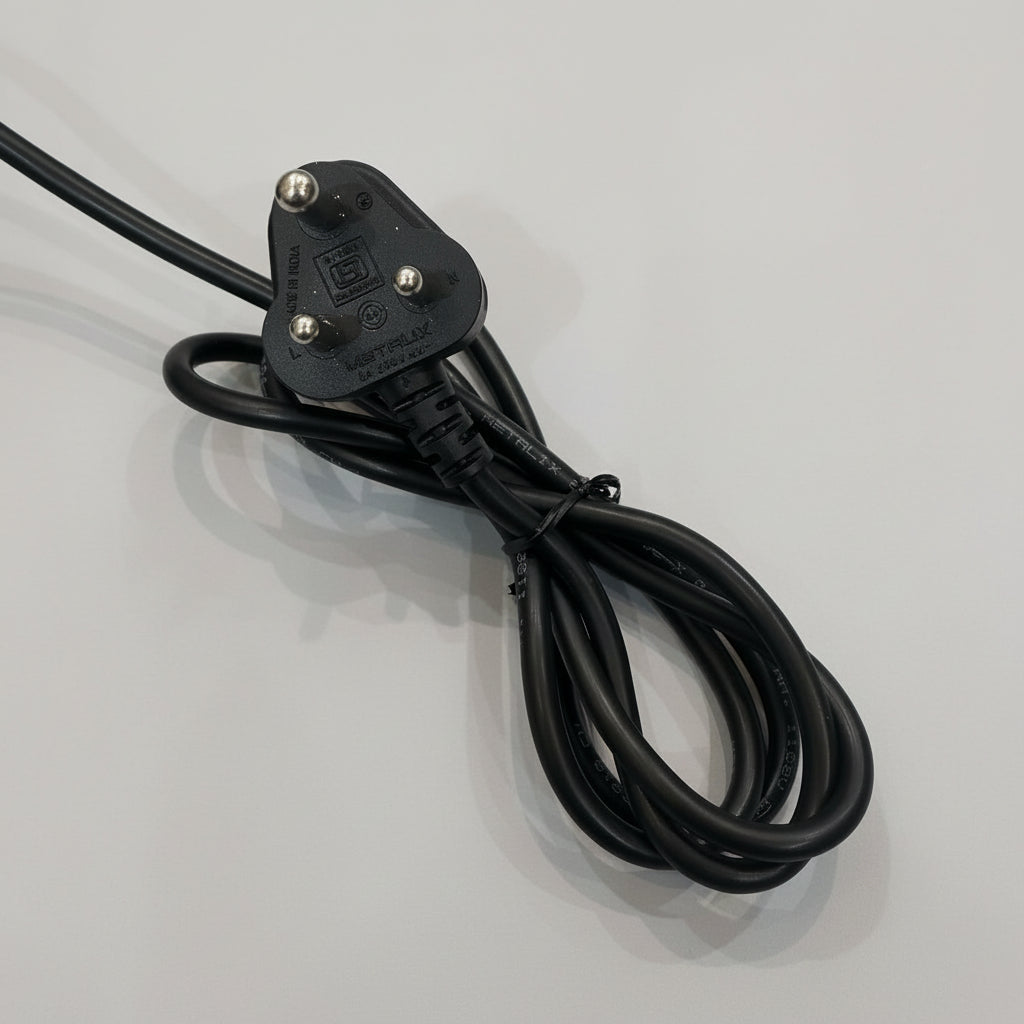

Note: Connect input mains cord to a standard 5Amp wall socket with proper grounding.

Output:

• Model: STL6075MC
• Output Voltage: 66.8V DC
• Output Current: 7.5 Amps
• Battery Application: 60V Lithium-Ion

Safety Instructions:

• Grounding: Ensure the wall socket has a proper Earth (Ground) connection.
• Connection Sequence: Connect the DC output connector to the battery before switching on the AC mains.
• Safety First: Do not touch uninsulated output wires.
• Polarity Check: Ensure Battery Positive (+ve) connects to Charger Positive (+ve) and Negative (-ve) to Negative (-ve).

Protection Systems:

• Output Short Circuit Protection
• Over-Temperature Protection
• Output Overload Protection
• Battery Reverse Polarity Protection

Warranty Terms & Conditions: We provide service and care. This battery charger is warranted to be free from defects in material and workmanship for a period of 12 months from the date of the original invoice.

The warranty is void under the following conditions:

• Missing Identification: If the serial number or warranty seal is missing or tampered with.
• Physical Damage: Damage resulting from abuse, misuse, dropping, or tampering.
• Unauthorized Repair: Attempted repair or maintenance by unauthorized personnel.
• Improper Connection: Connecting the DC output to an AC source or vice versa.
• Negligence: Damage caused by negligent use, improper cleaning, or storage.
• Environmental Damage: Damage resulting from fire, water, dust, wind, lightning, or other natural causes.
• Power Issues: Failure due to power fluctuations or high-voltage surges.
