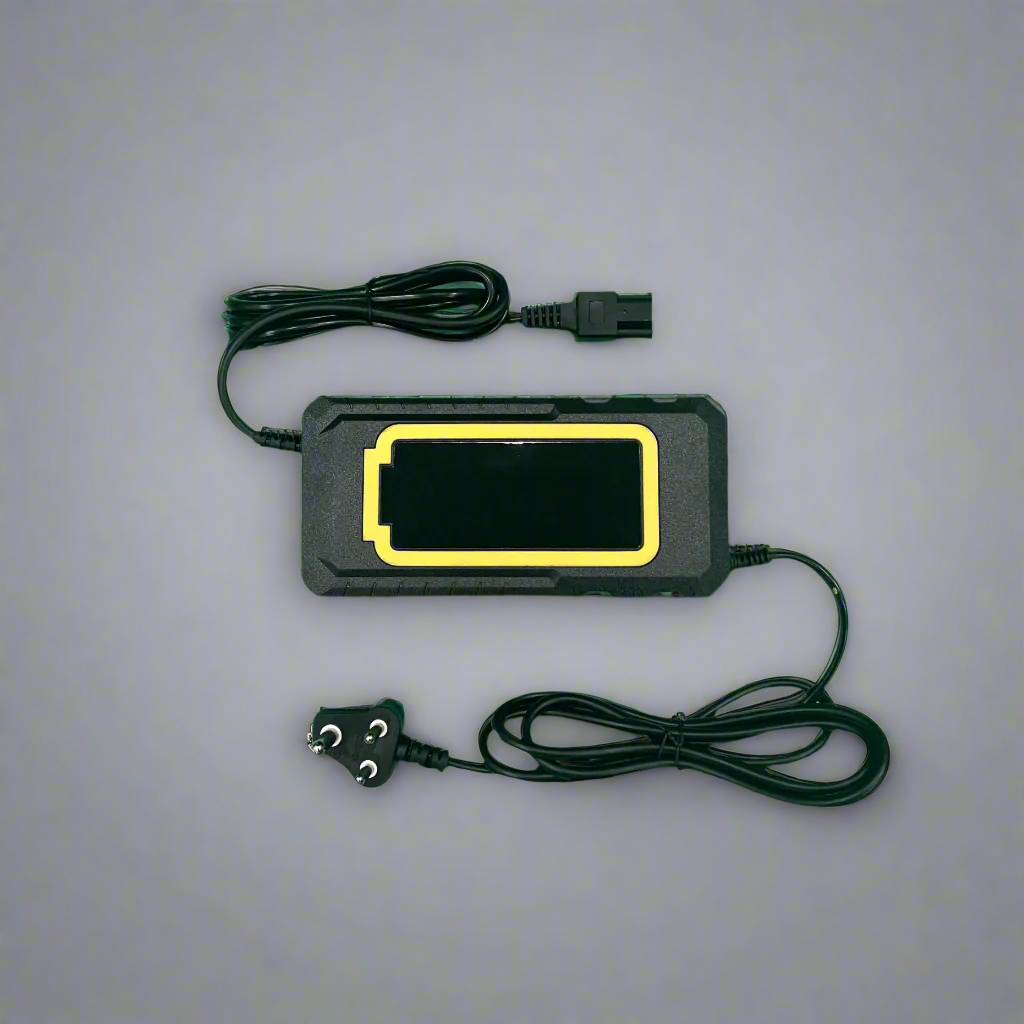

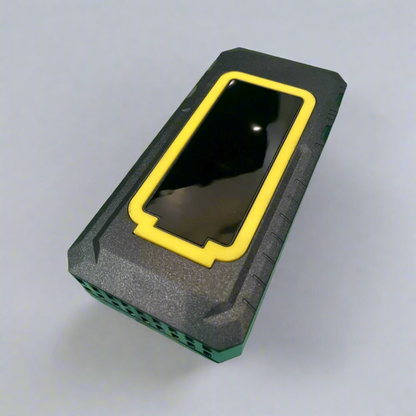

Tiranga Electric Scooter Battery Charger 48V 3A (Lead Acid) - Vajra, Vyom, Nandi, Epic

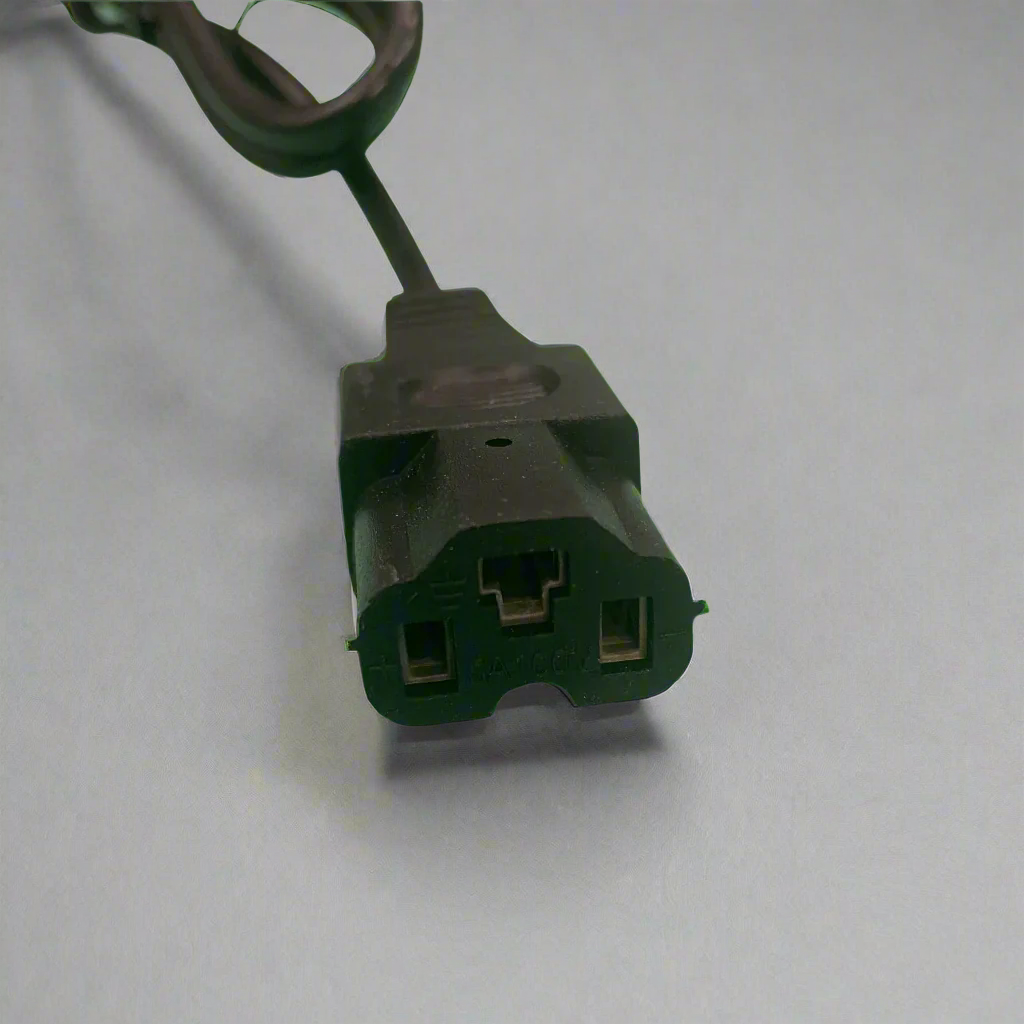

48V 3A battery charger with IEC 3 pin female connector for 48V (12V * 4) lead battery used in Tiranga electric scooter models like Vajra, Vyom, Nandi, Epic etc.

Origin: Made in China

Warranty: 6 Months from the date of purchase

Return: 7 days Return/Replacement (Please read Refund policy for more information)

Delivery: 3-10 days

Features:

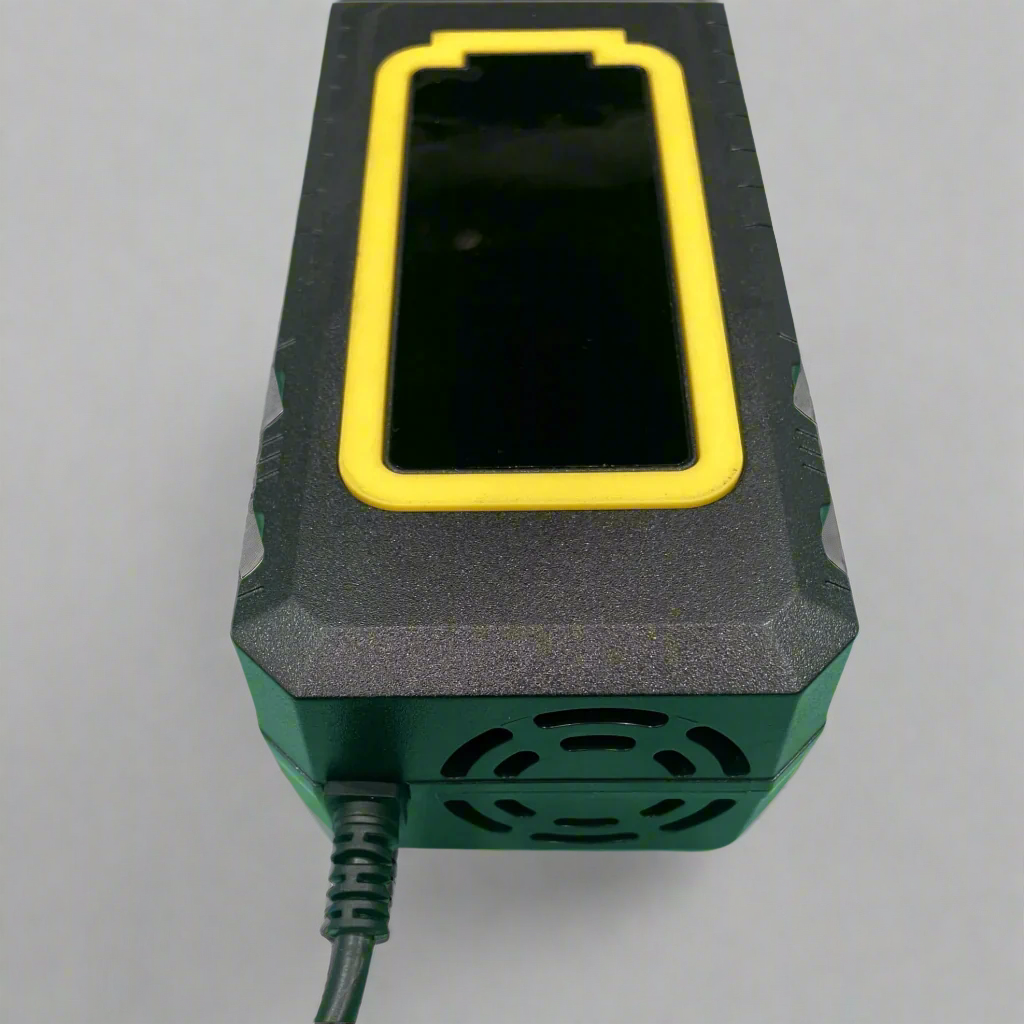

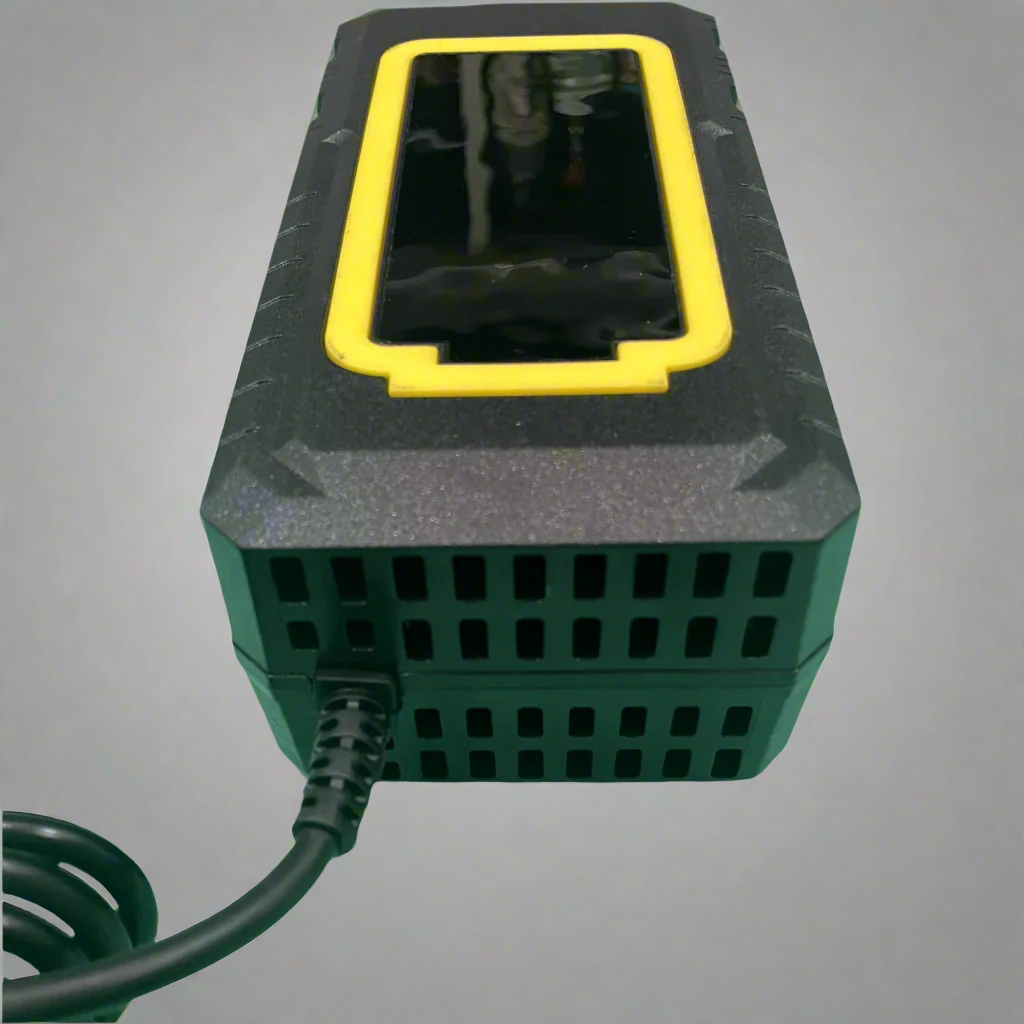

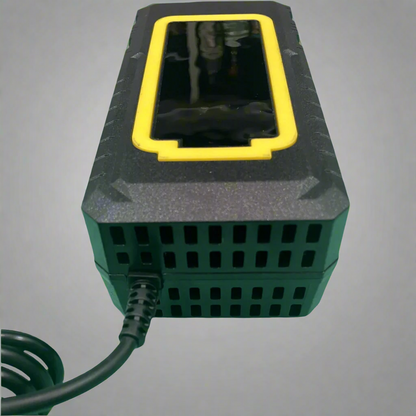

• Forced air cooling by built in DC fan
• LED Indication for Mains ON

Mechanical Details:

• Dimension(L*W*H) :
• Weight : 0.5Kg

Specification:

Input:

• Input Voltage : 230 Vac
• Frequency : 50 Hz
• Input AC Current at 230Vac : Max 5 Amps

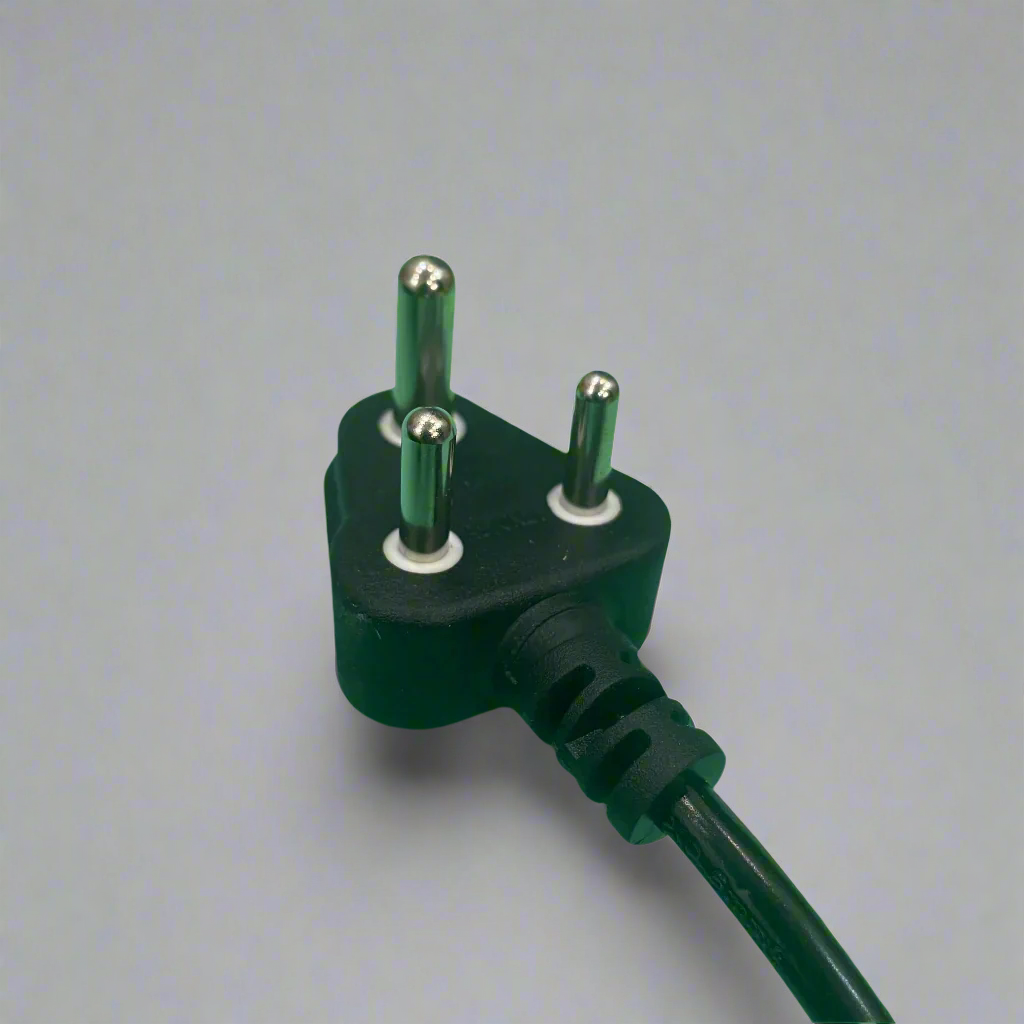

• Connect input mains supply cord to the 5Amp Ac plug wall socket with proper grounding
• Make sure that Earth(Ground) is connected

Output:

• Output Voltage : 48 V
• Output Current : 3 Amps
• Do not touch uninsulated output wires
• Connect the charger output cable with connector (DC OUTPUT) to the battery connector
• Make sure that Battery +ve terminal connected to +ve terminal of charger and Battery -ve terminal connected to -ve terminal of charger

 Warranty Terms:

We provide service and care, the battery charger shall be free from the material and workmanship for 6 months from the date of original invoice.
This warranty does not include any damage to, malfunctioning or improper operation of battery charger resulting to

• Abuse, misuse or tampering
• Repair or maintenance of battery charger or related equipments
• Improper connection may damage charger. means in place of AC connection DC
• Negligent use, operation, care, cleaning, storage or handling
• Fire, water, dust, wind lighting or other natural causes
• Power fluctuation due to surge
