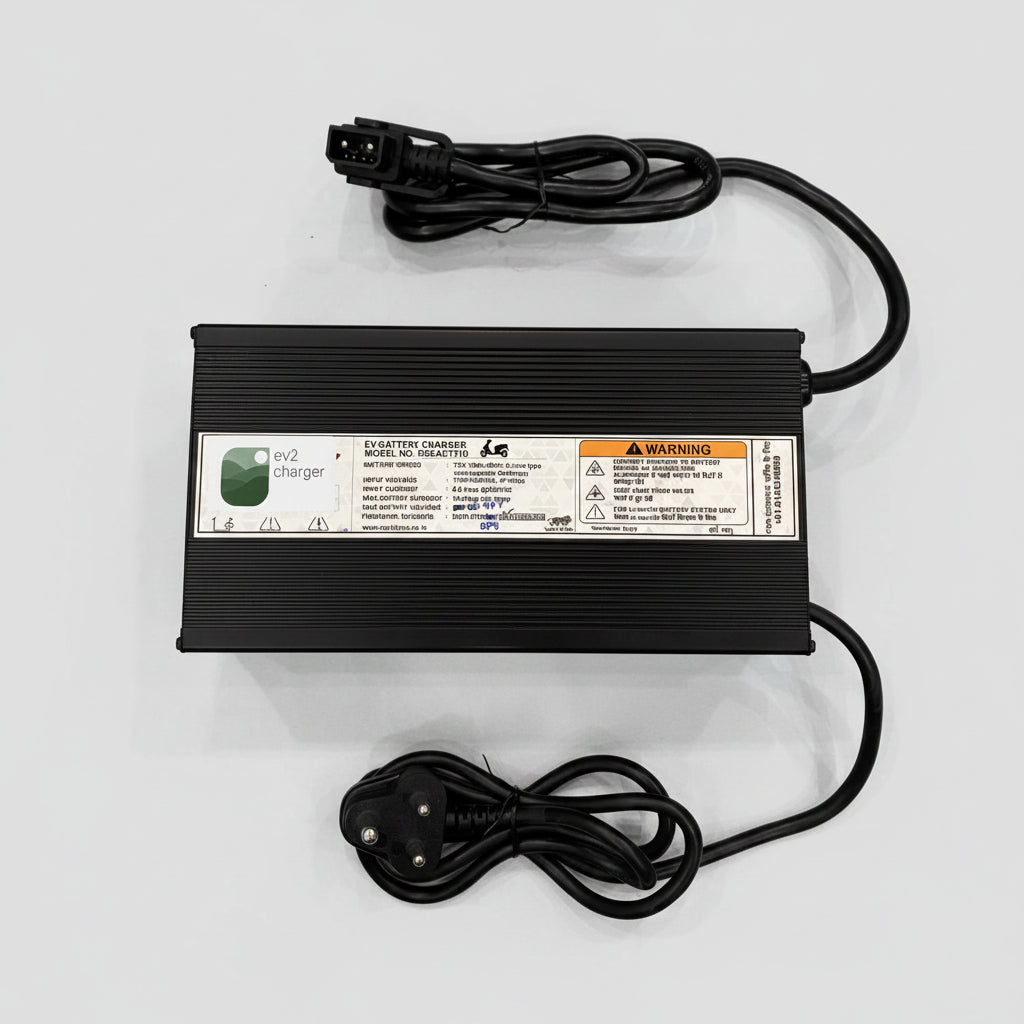

Sokudo 72V 10A Lithium Battery Charger (D-type connector) - Acute, Acute 2.2 (83.95V Cut-off)

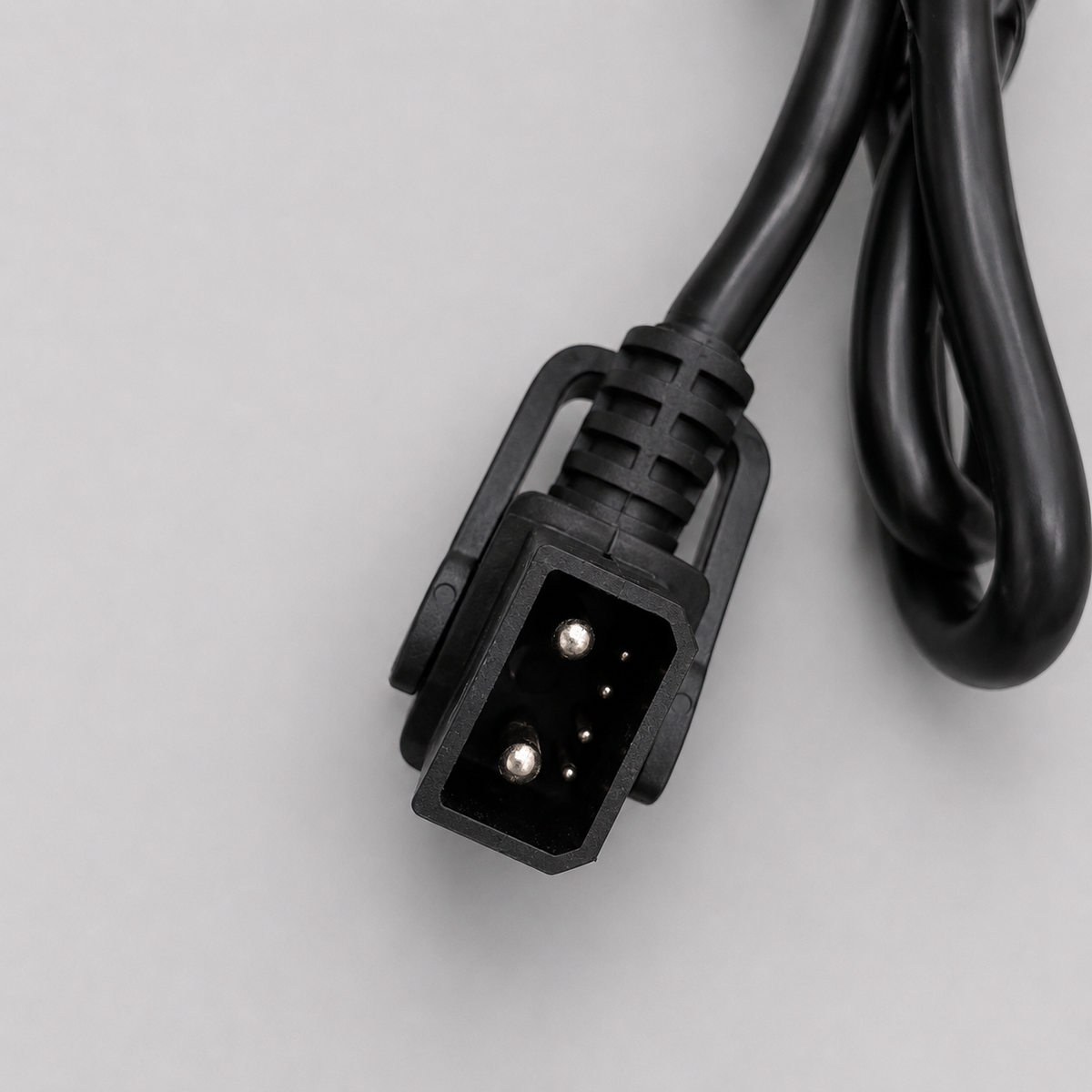

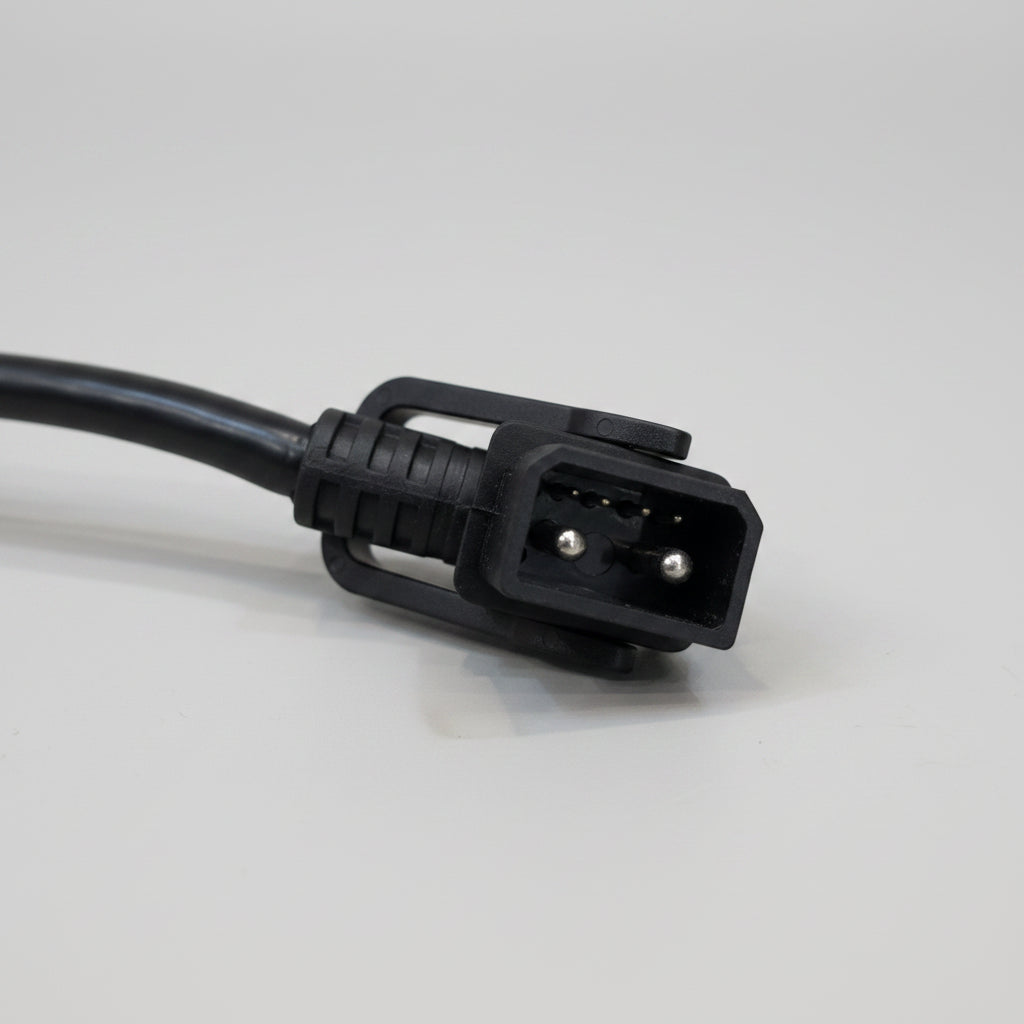

72V 10A battery charger (83.95V/84V cut-off voltage) with D-type male connector for 72V lithium battery used in Sokudo electric scooter models like Acute, Acute 2.2 etc.

Origin: Made in India

Warranty: 1 Year from the date of purchase

Return: 7 days Return/Replacement (Please read Refund policy for more information)

Delivery: 3-10 days

Features:

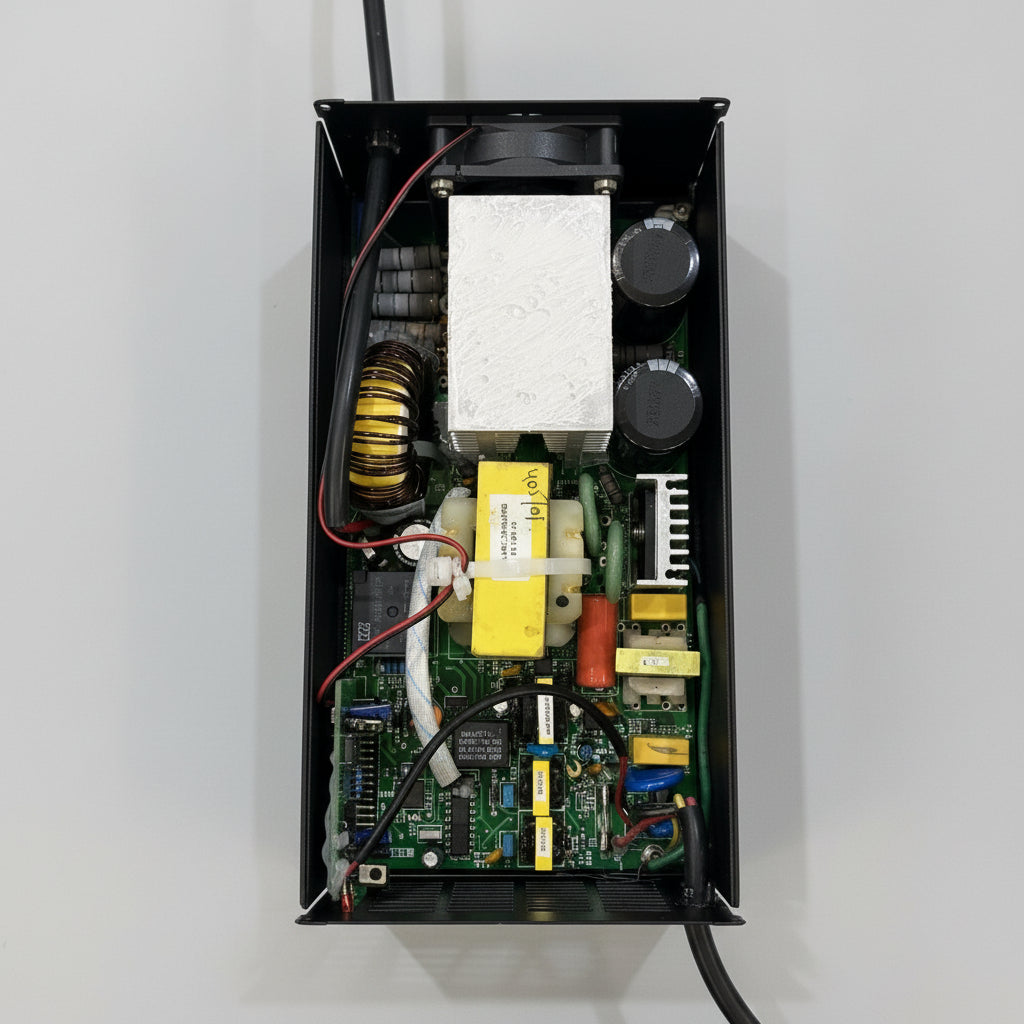

• SMPS based technology

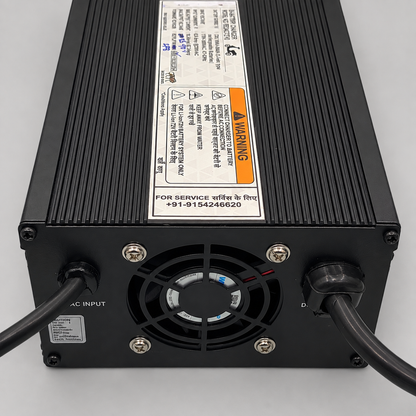

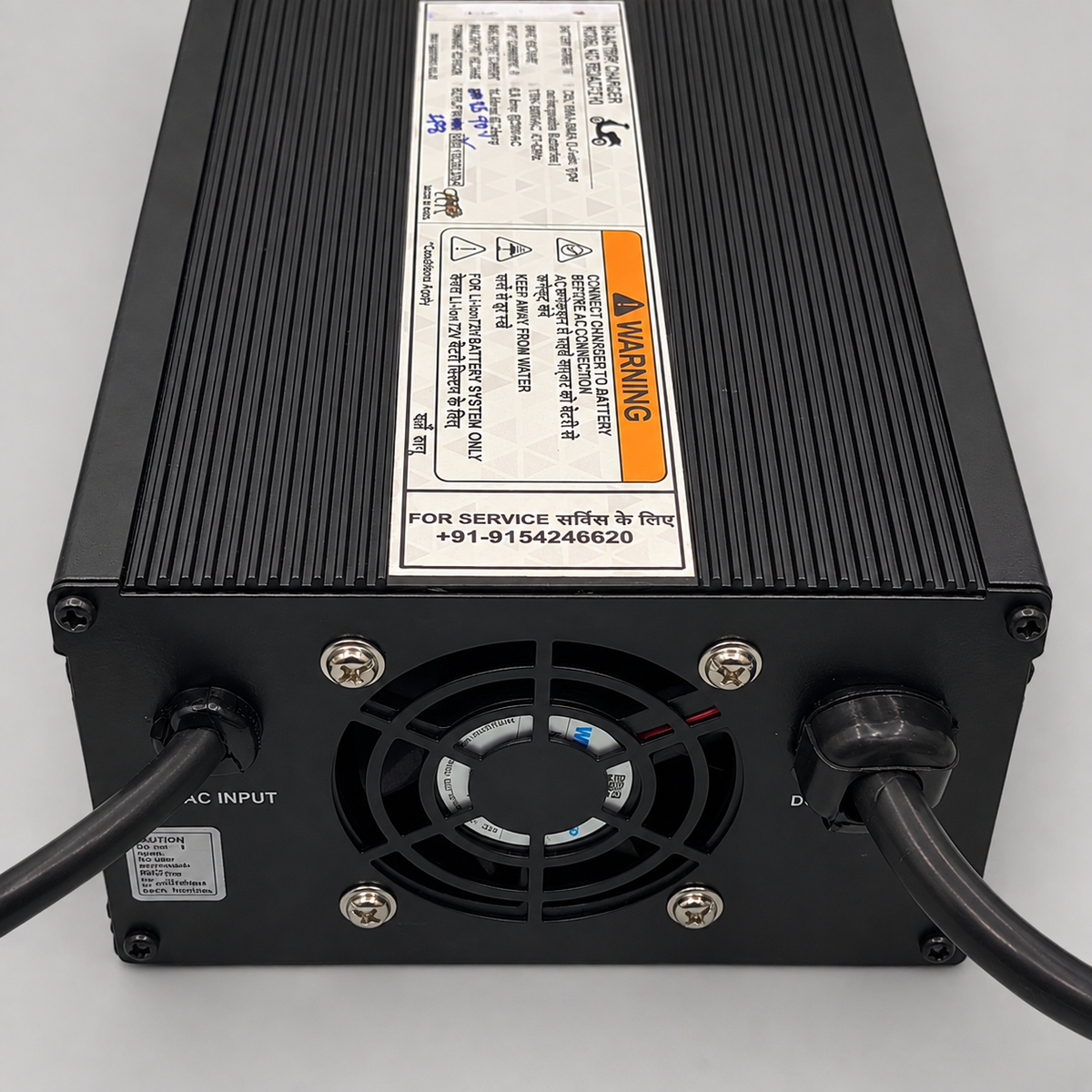

• Forced air cooling by built in DC fan

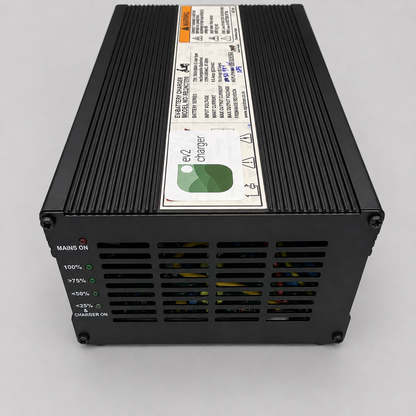

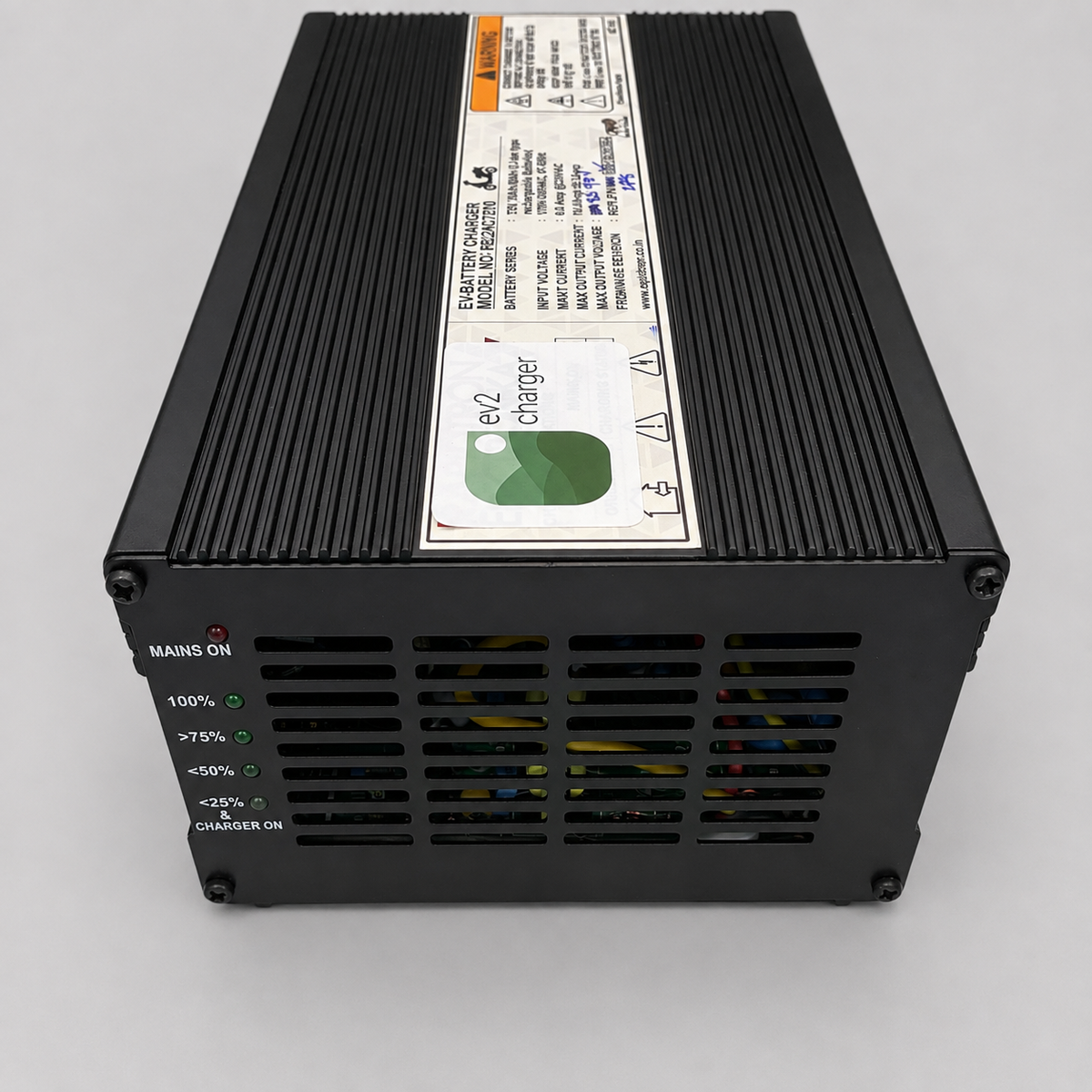

• LED Indication for Mains ON, Charging percentage

Mechanical Details:

• Dimension(L*W*H) : 243*152*85MM
• Weight : 2.5 Kg

Specification:

Input:

• Input Voltage : 170V - 300V AC
• Frequency : 47 - 63 Hz
• Input AC Current at 230Vac : 6.0 Amp (@ 230V AC)
• Connect input mains cord to a standard 15Amp/5Amp wall socket with proper grounding.

Output:

• Output Voltage : 84 V
• Output Current : 10 Amps
• Do not touch uninsulated output wires
• Connect the charger output cable with connector (DC OUTPUT) to the battery connector
• Make sure that Battery +ve terminal connected to +ve terminal of charger and Battery -ve terminal connected to -ve terminal of charger

Warranty Terms:

We provide service and care, the battery charger shall be free from the material and workmanship for 12 months from the date of original invoice.
This warranty does not include any damage to, malfunctioning or improper operation of battery charger resulting to

• If seal is not present on unit, warranty will be void
• Abuse, misuse or tampering
• Repair or maintenance of battery charger or related equipments
• Improper connection may damage charger. means in place of AC connection DC
• Negligent use, operation, care, cleaning, storage or handling
• Fire, water, dust, wind lighting or other natural causes
• Power fluctuation due to surge
