SB75 Connector Pair (2+4 Pin) - Male & Female Set - Compatible with Mahindra, Piaggio, Montra L5

Replacement SB75 Connector Pair — one male and one female — each with the 2+4 pin configuration used on L5 electric three-wheelers. Two heavy-duty silver-plated power pins (75A rated) carry the charging current; four smaller communication pins carry the CAN data signal between the vehicle’s BMS and the charger. This is the connector set you need when the connector body or pins are damaged — ready for you to crimp directly onto your existing cable.

Compatible Models: Mahindra Treo, Mahindra Treo Zor · Piaggio Ape E-City · Montra Electric Super Auto — and other L5 electric autos using the SB75 2+4 pin charging port.

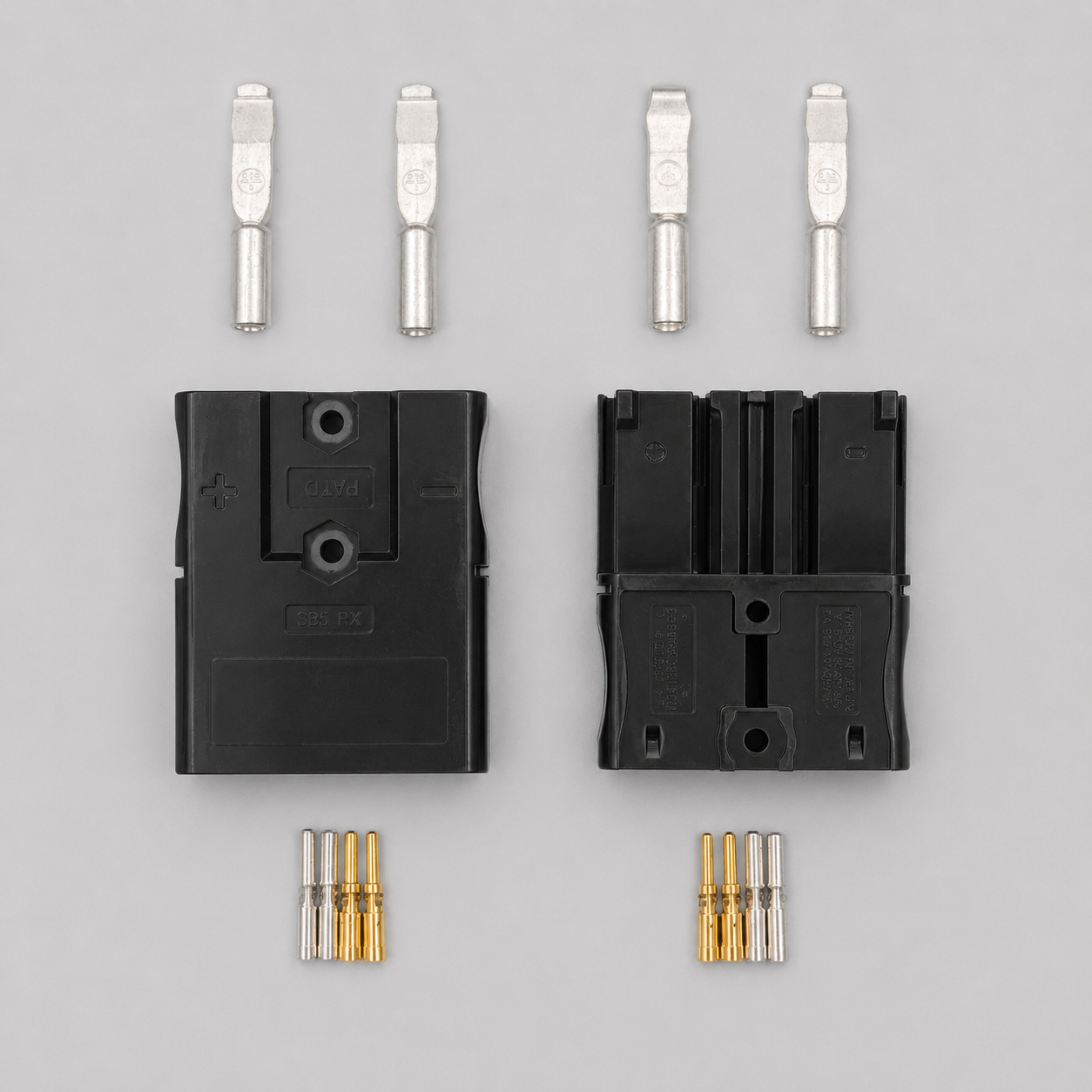

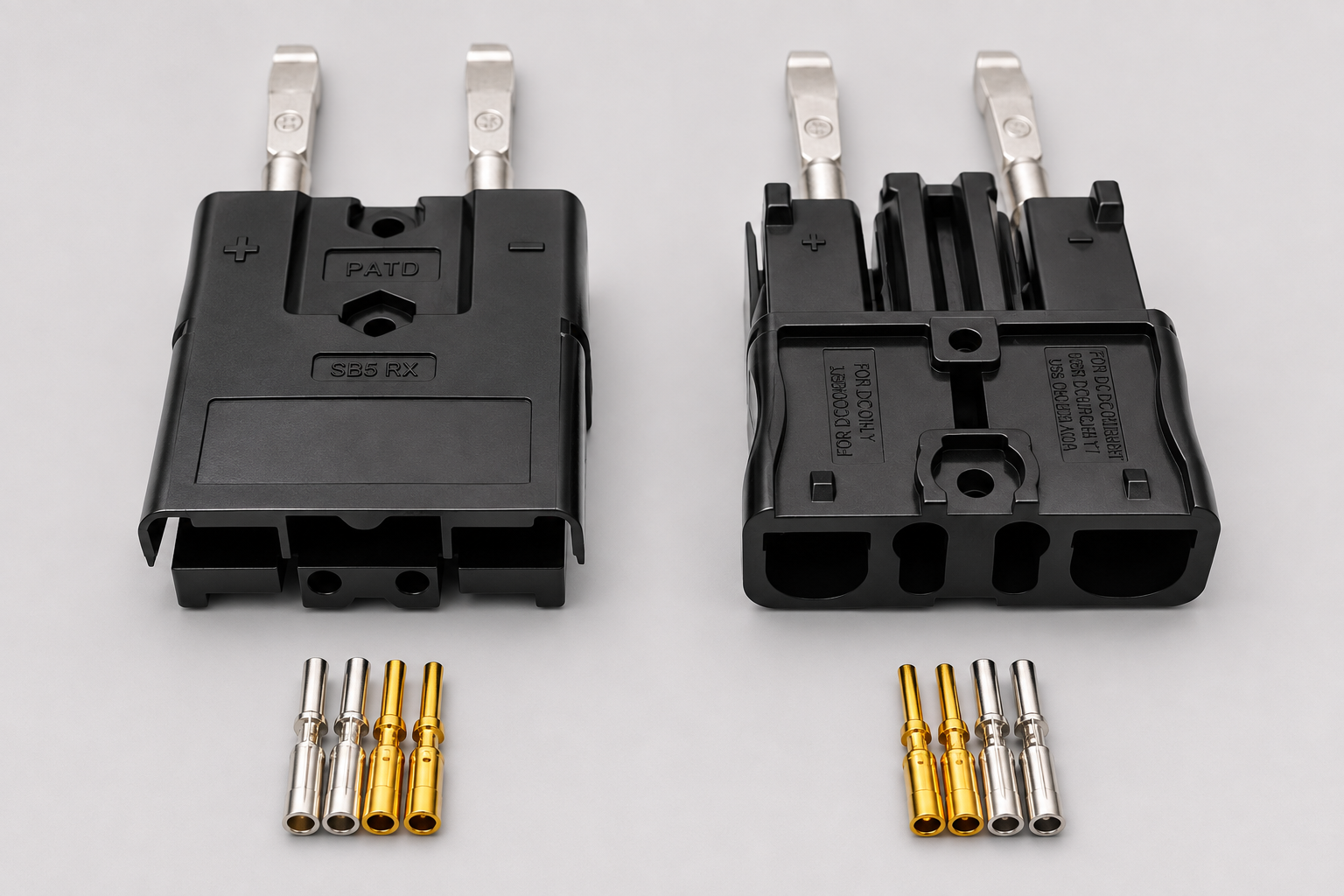

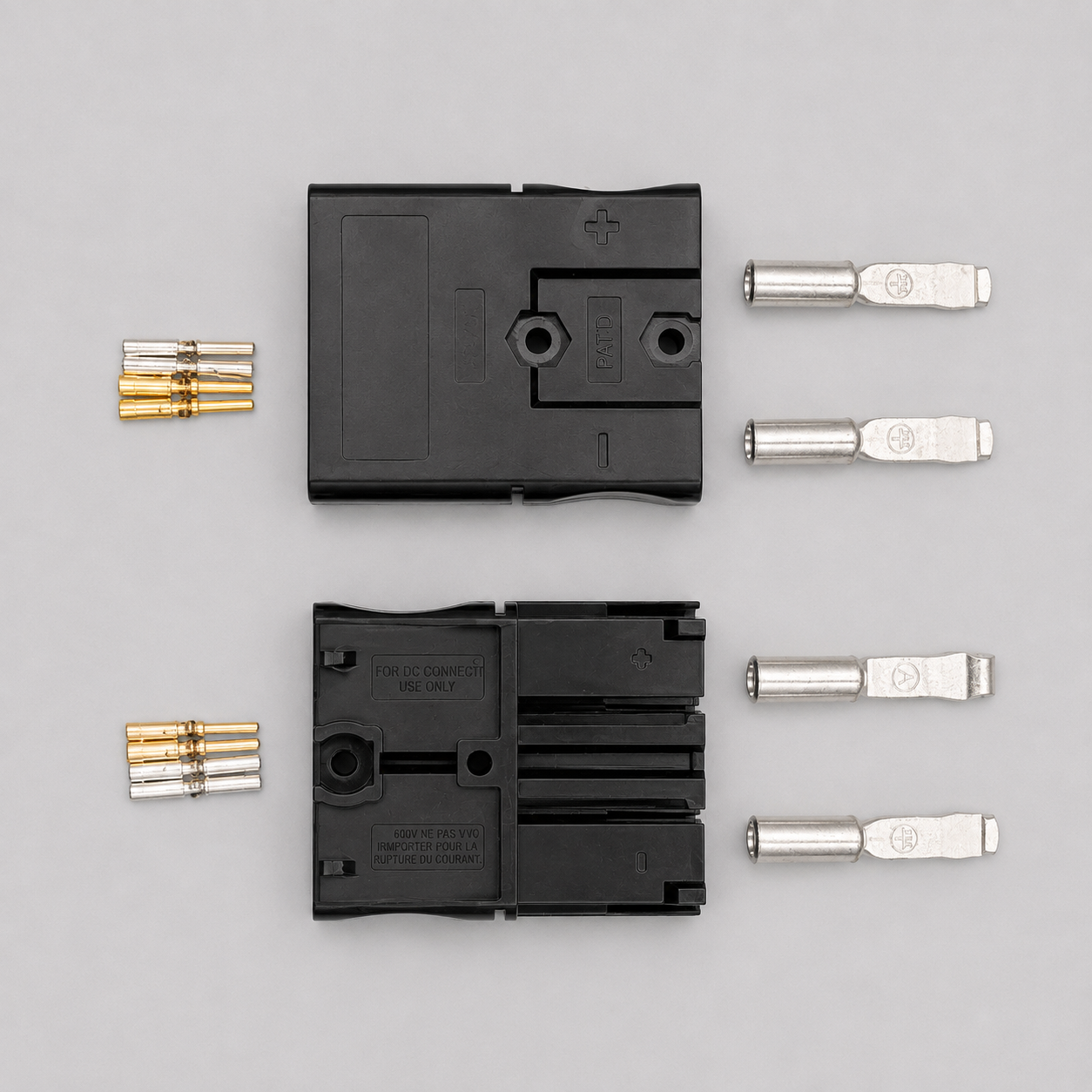

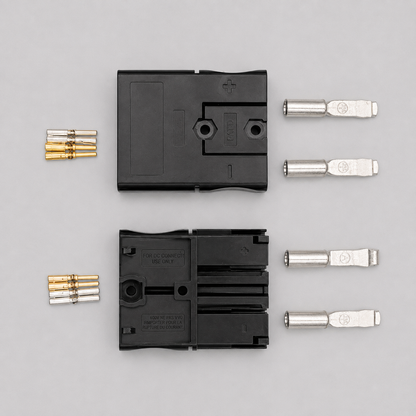

What’s in the box: 1 × SB75 Male Connector (2+4 pin) + 1 × SB75 Female Connector (2+4 pin) — connector bodies with pins included, no wire.

Need a ready-to-use cable instead? See our SB75 Connector Charging Cable (8 sq mm, 1 metre) — connector already fitted to wire, plug and charge.

Key Highlights:

• Origin: Made in India
• Delivery: 3–10 Days
• ⚠️ This is a spare part — not eligible for return or replacement once dispatched. Please verify compatibility before ordering.

Connector Specifications:

• Type: SB75 Anderson-style (2+4 pin)

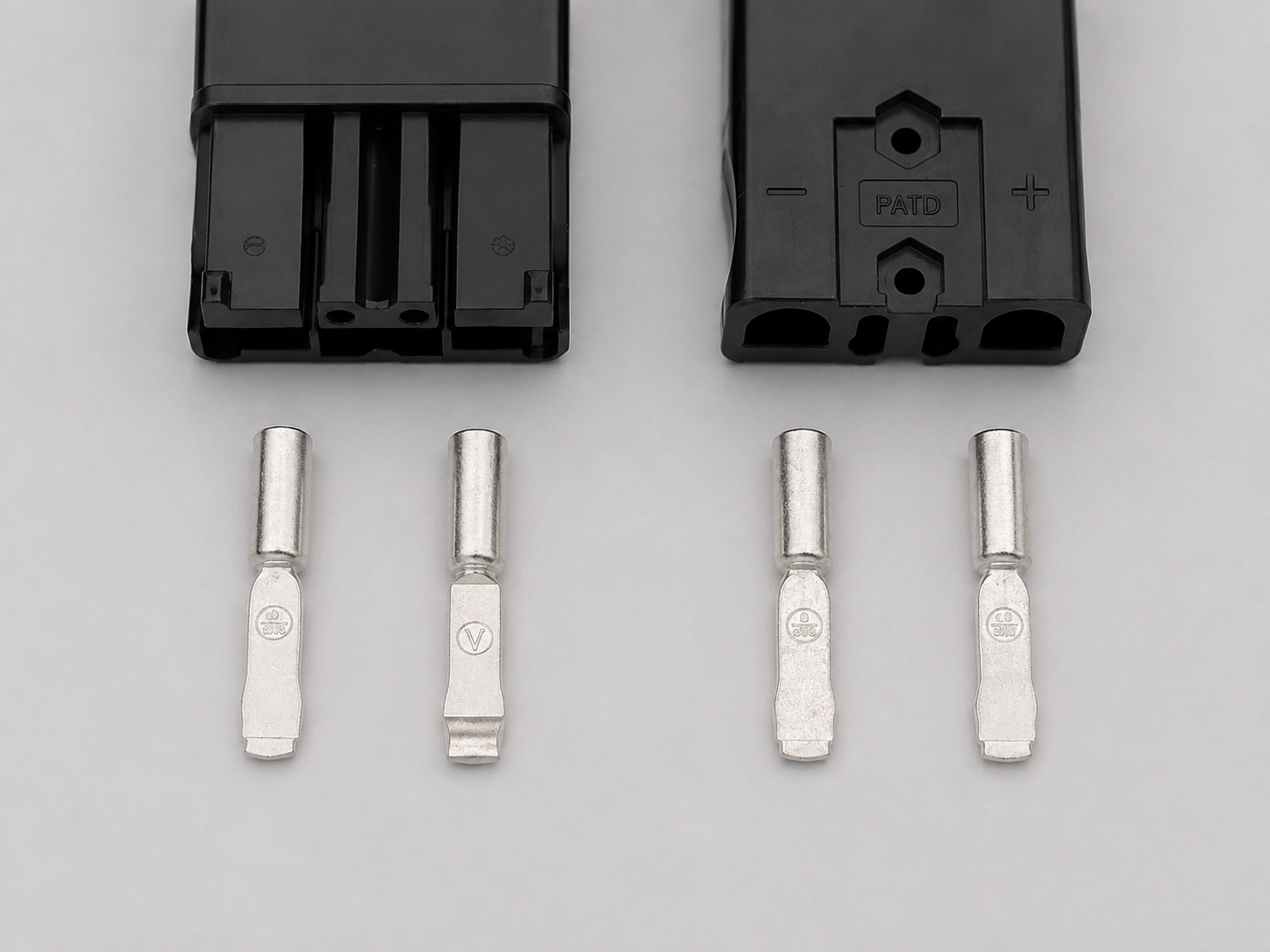

• Power Pins: 2 × silver-plated copper, 75A rated
• Communication Pins: 4 × CAN data pins
• Gender: 1 Male + 1 Female (pair)
• Compatible wire size: Up to 10 sq mm
• Wire / cable included: No
