Revolt Battery Charging Socket Assembly - Extended Wires CAN | RV400, BRZ, Blaze X, RV1, RV1+

Which Revolt charging part do I need?

This is the battery side charging socket assembly — the socket that fits on the battery inside the bike, not the bike body socket.

Key features of this assembly:
- Extended wiring with metal DC ring terminals — same as original factory fitment
- CAN protocol wires included for full battery management compatibility
- Direct replacement for the battery-side socket only

Compatible with: Revolt RV400, RV400 BRZ, RV Blaze X, RV1, RV1+

Not sure which part you need?
- Bike body socket damaged → See our Revolt Female Charging Socket
- Charger cable damaged → See our Revolt Charger Cable with Male Connector
- Charger unit not working → See our Revolt 84V Charger

Product Description:

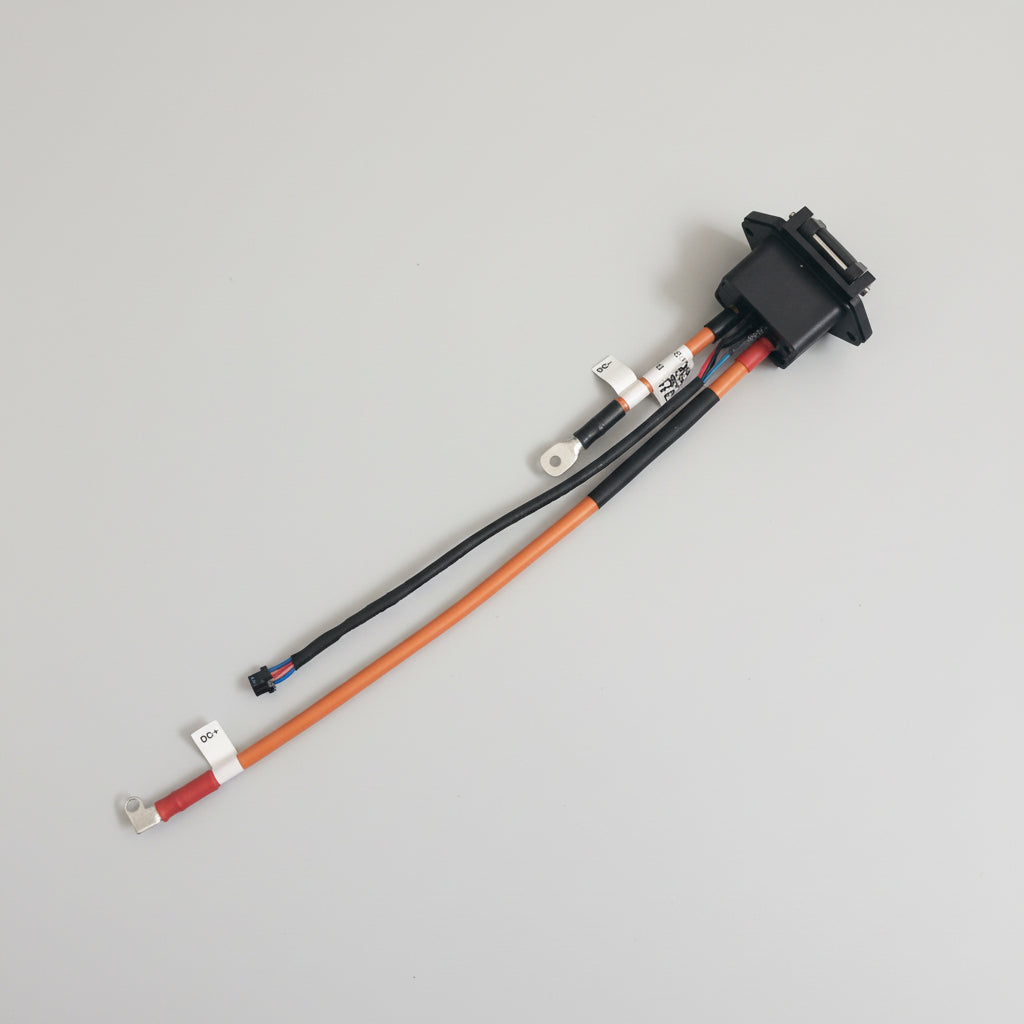

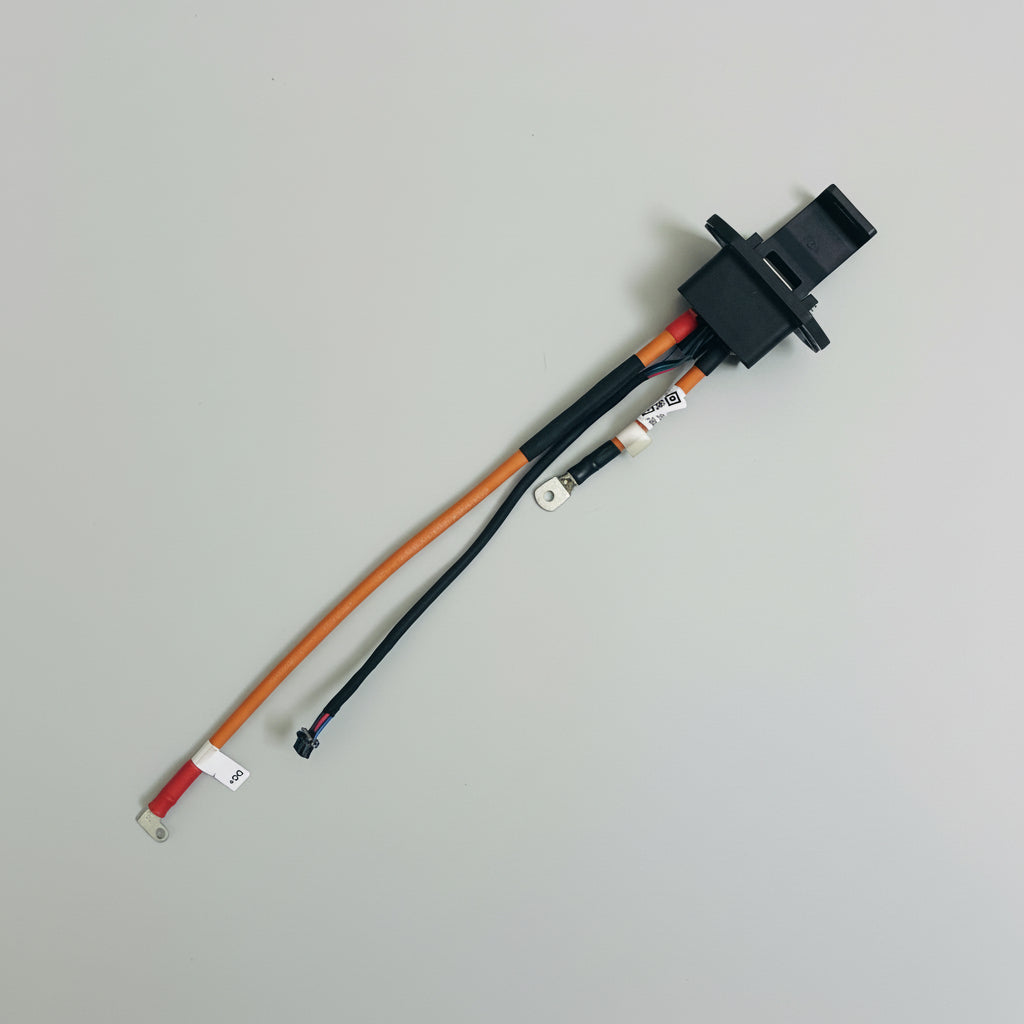

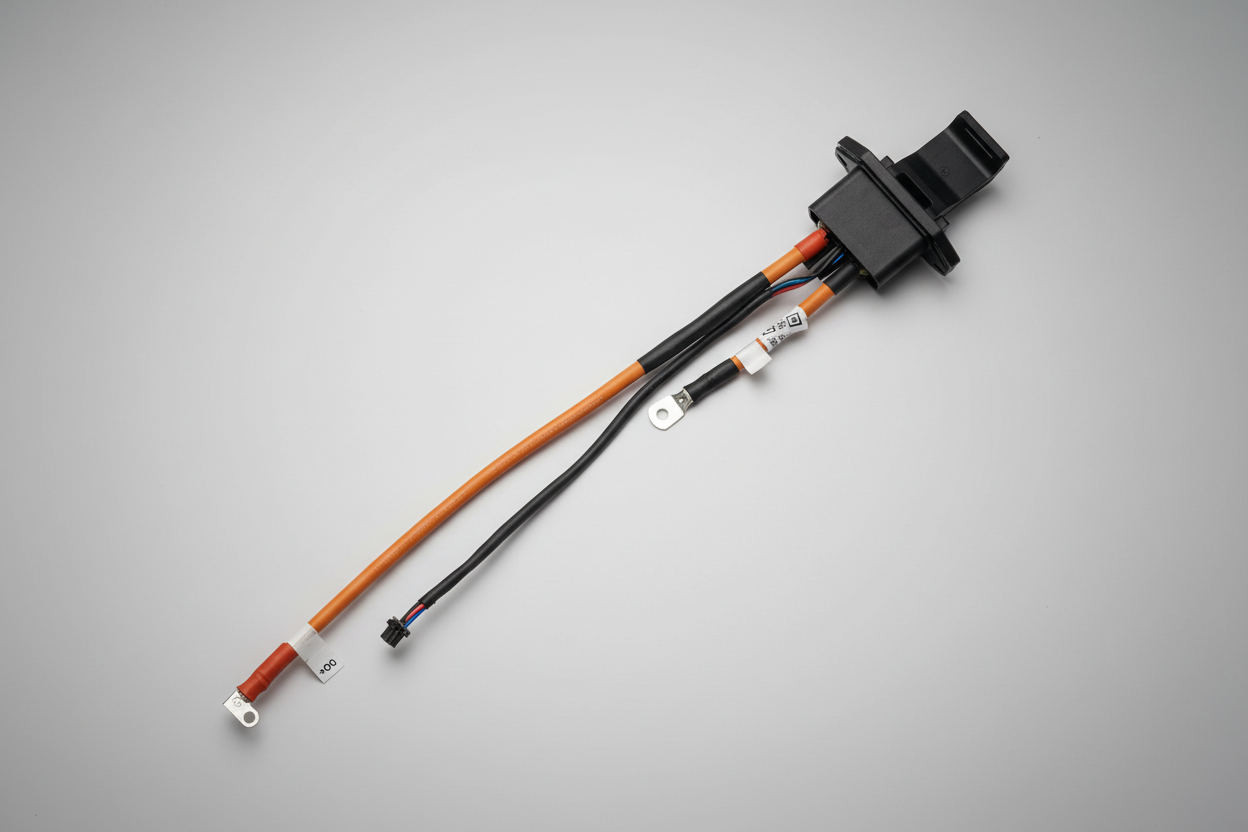

Restore your Revolt battery’s charging capability with this premium Revolt Battery-Side Internal Charging Socket. Unlike the standard external charging port that mounts to the bike frame, this specialized, complex assembly is designed to fit directly into the Revolt battery pack itself.

Featuring a robust design with extended cable lengths, this harness connects the external charging port to the internal battery cells. It includes heavy-duty DC+ and DC- power cables terminated with secure ring lugs, along with the essential signal/data connector for BMS communication. This is the critical component required if your battery's physical connector or internal wiring has sustained damage.

Key Features:

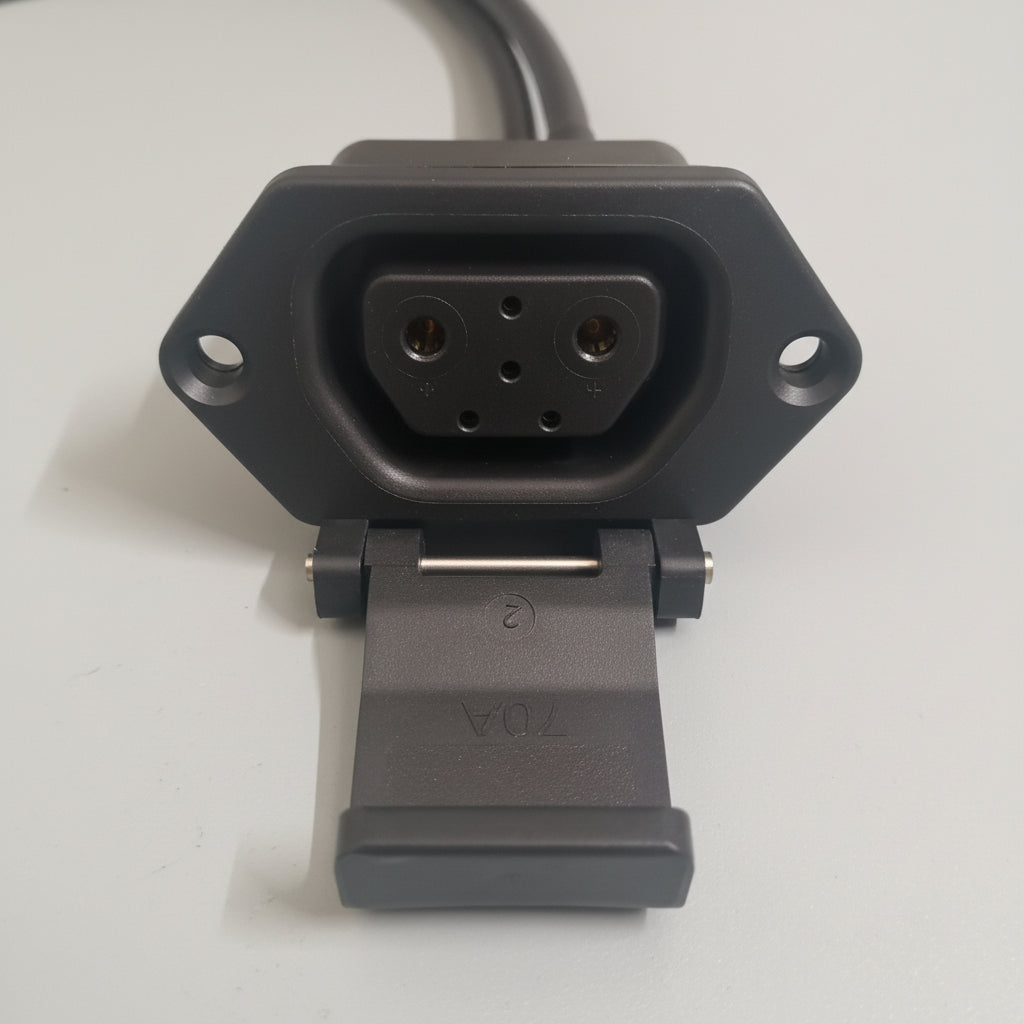

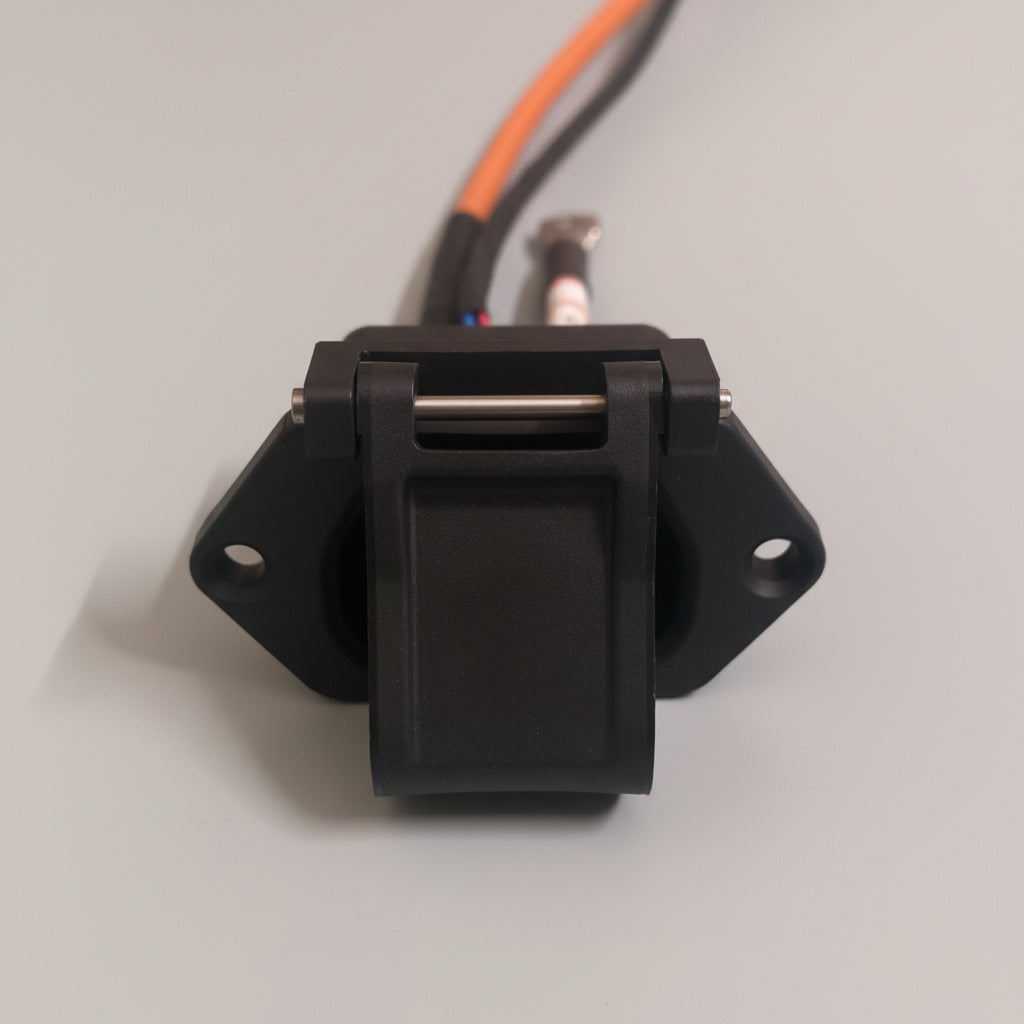

✅ Battery-Side Application Specifically engineered to mount onto the removable Revolt battery pack (not the bike frame).

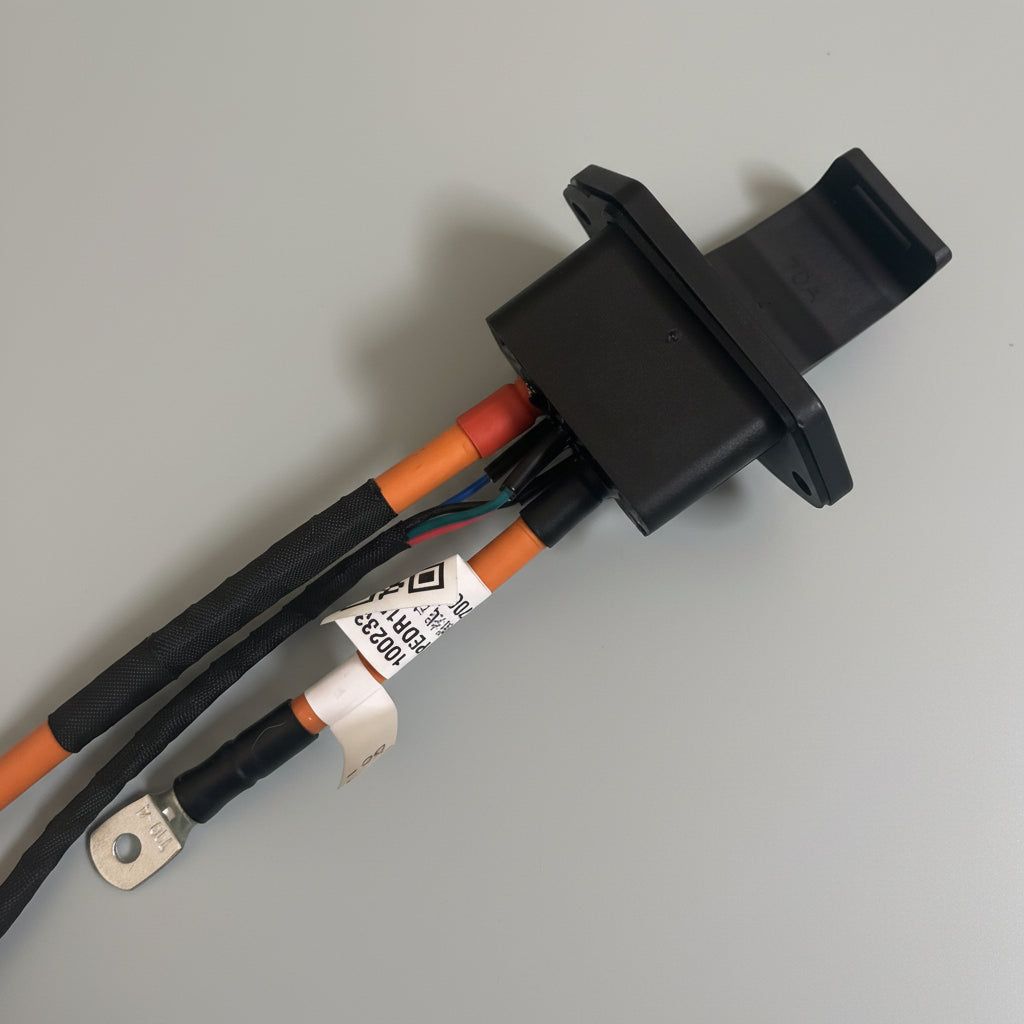

✅ Extended Wiring Harness Features longer, heavy-gauge cables compared to standard sockets, allowing for proper internal routing and connection to battery terminals.

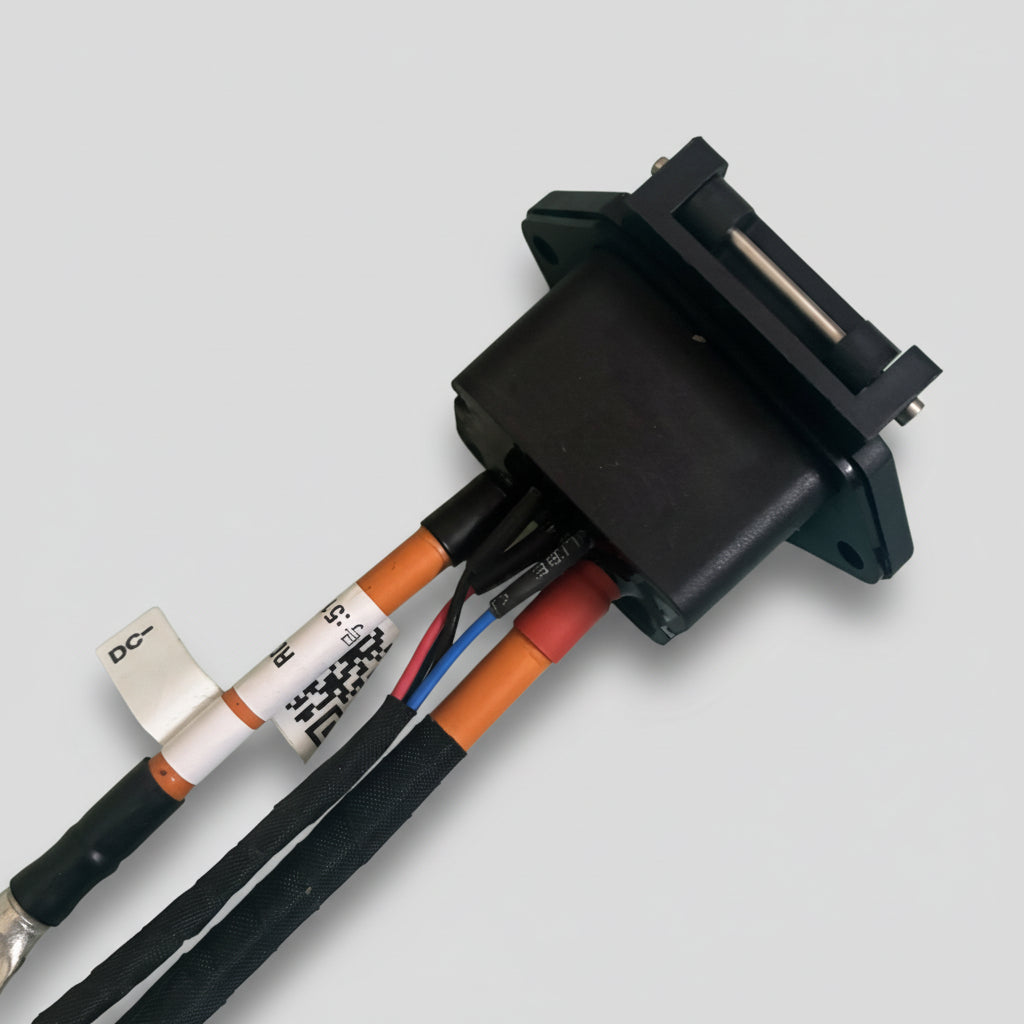

✅ Secure Terminal Connections Pre-crimped Ring Terminals (Lugs) on the Orange (DC+) and Black (DC-) wires ensure a safe, bolt-on connection to the internal battery cells.

✅ CAN & BMS Compatible Includes the dedicated signal connector to maintain vital data communication between the charger, battery management system (BMS), and the bike.

✅ Heavy-Duty Construction Built with high-grade insulation and heat-resistant materials to withstand the internal operating temperatures of the battery pack.

Why Choose This Premium Replacement?

🔹 Complex Assembly Solution This is a complete assembly designed to replace the intricate internal wiring interface of your battery.

🔹 Critical Repair Part Essential for fixing batteries that are not detecting the charger or have loose/burnt internal connections.

🔹 OEM-Grade Fitment Designed to match the exact mounting specifications of the Revolt RV400 series battery casing.

⚠️ Important Safety Note:

This component requires opening the high-voltage battery casing to install. Installation should strictly be performed by a certified EV technician or battery specialist. Mishandling internal battery components can result in electrical shock or fire.

Revitalize your Revolt’s power source with this professional-grade internal battery socket! ⚡

Looking for other Revolt spare parts?
→ Revolt Female Charging Socket - 2+4 CAN Bike Body
→ Revolt Charger Cable - 2+4 Male CAN Connector
→ Revolt RV400 84V 12A Charger
→ Browse all Revolt products

FAQ:

Q: What is this assembly and how is it different from the bike body socket?
A: This is the socket that sits on the battery inside the bike, connected via extended wires with metal DC ring terminals. The bike body socket (sold separately) is the external charging port you see on the outside of the bike. Both are separate parts - check which one is faulty before ordering.

Q: Why does this have extended wires?
A: The battery side socket needs longer wires to connect from the battery to the charging circuit, with metal ring terminals for secure battery connections. This assembly comes with the same extended wiring configuration as the original factory fitment.

Q: What does "CAN wires included" mean?
A: CAN (Controller Area Network) wires allow the battery management system to communicate with the charger during charging. This assembly includes the CAN wires, maintaining full compatibility with Revolt's smart charging system.

Q: Is this a complete wiring harness?
A: No. This is the battery side charging socket assembly with extended wires only - not the full bike wiring harness.

Q: Is this compatible with all Revolt models?
A: Yes. Compatible with Revolt RV400, RV400 BRZ, RV Blaze X, RV1 and RV1+.

Q: Is this an original Revolt part?
A: Yes. This is an original replacement assembly with the same specifications as the factory-fitted battery side socket.
