Quantum Electric Scooter Charger - 66.7V 10A Lithium Battery Charger - Model A4EK667100

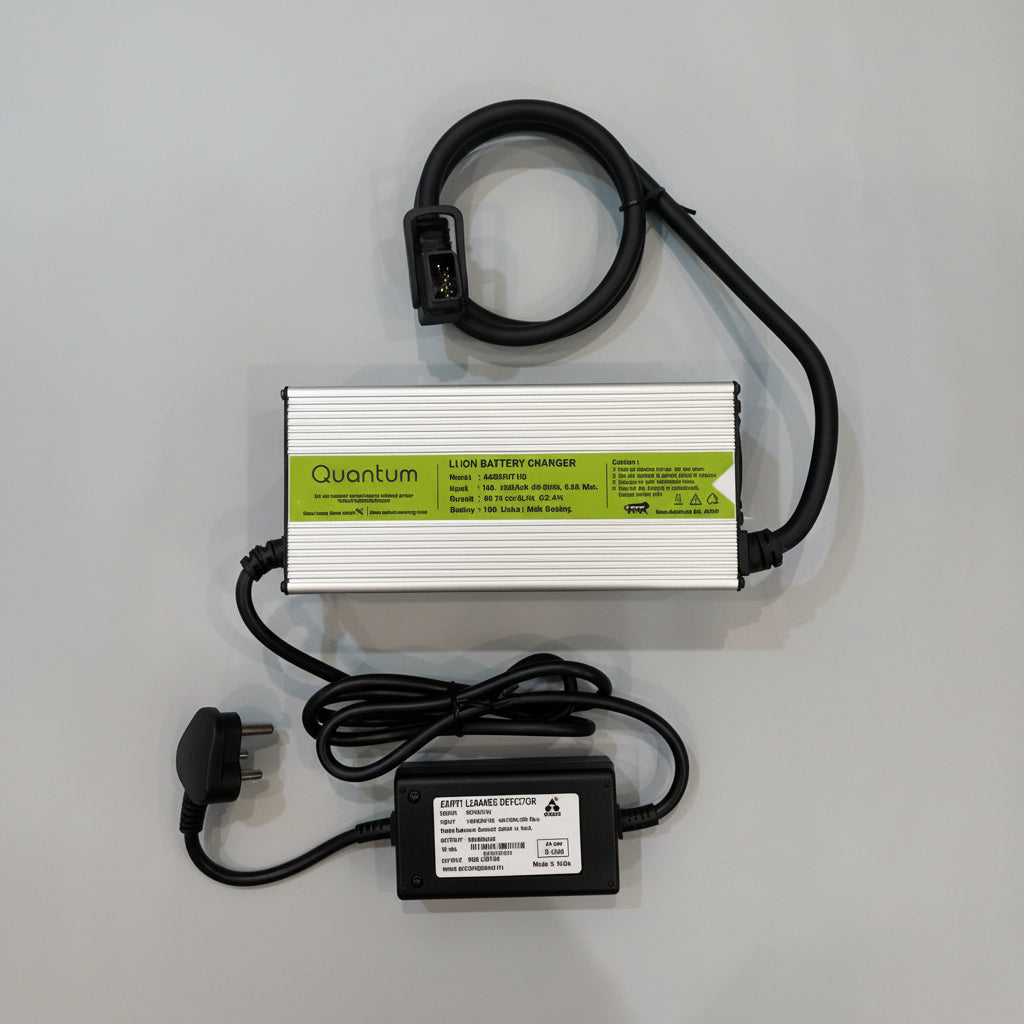

Original Quantum EV Charger (Model A4EK667100), manufactured by APCP (Accord Power Conversion Pvt Ltd). This high-performance smart charger is engineered for 16S Li-Ion / NMC Battery packs and features CAN Protocol for intelligent communication with the vehicle's BMS. It delivers a robust 66.7V 10A output using a CC-CV (Constant Current - Constant Voltage) charging profile. A standout feature is the integrated Earth Leakage Detector (ELD) module on the input cord, providing superior electrical safety.

Compatibility Note:

• Vehicle: Designed for Quantum Electric Scooters running on 60V/16S systems with CAN communication.

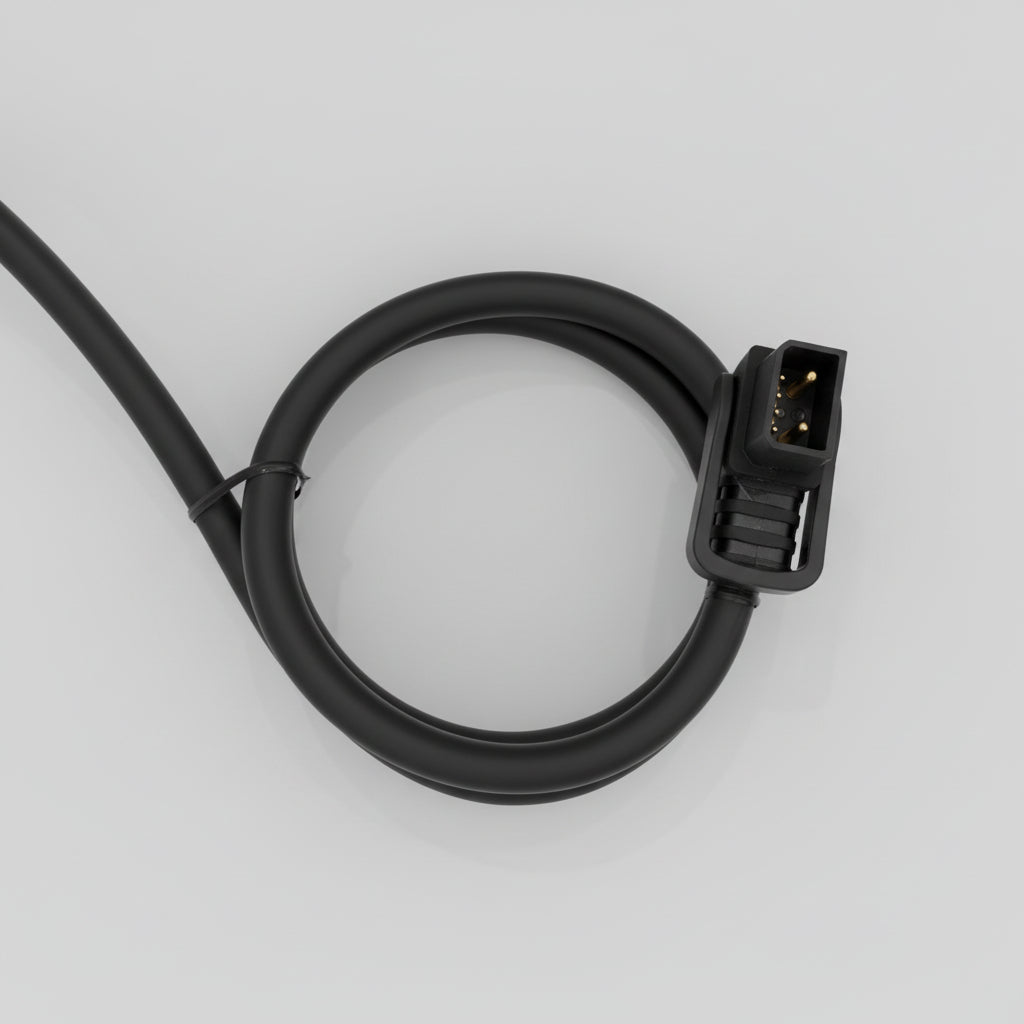

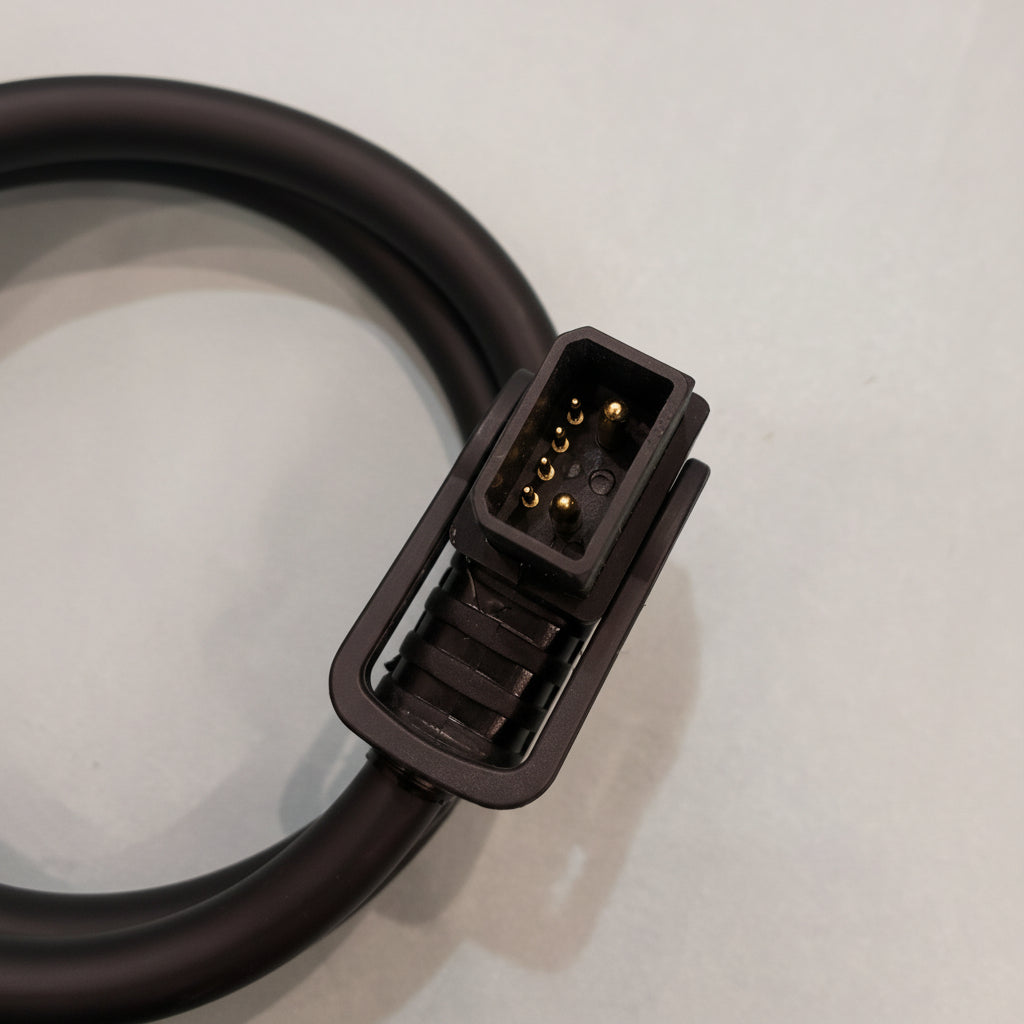

• Connector: D-Type 2+4 Pin Connector (Rectangular connector with 2 large power pins and 4 small signal pins).
• Please carefully compare the connector shown in the image with your scooter's charging port.

Key Highlights:

• Origin: Made in India (Manufactured by APCP)
• Warranty: 6 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details)
• Delivery: 3-10 Days

Technical Features:

• CAN Protocol: Supports smart communication with the battery management system.
• Earth Leakage Detector: Integrated inline module (Model DPEK100) detects leakage currents (30mA Sensitivity) to prevent shock hazards.
• CC-CV Charging: Constant Current and Constant Voltage mode ensures safe and efficient battery charging.
• Battery Optimization: Specifically calibrated for 16S Li-Ion / NMC Batteries.

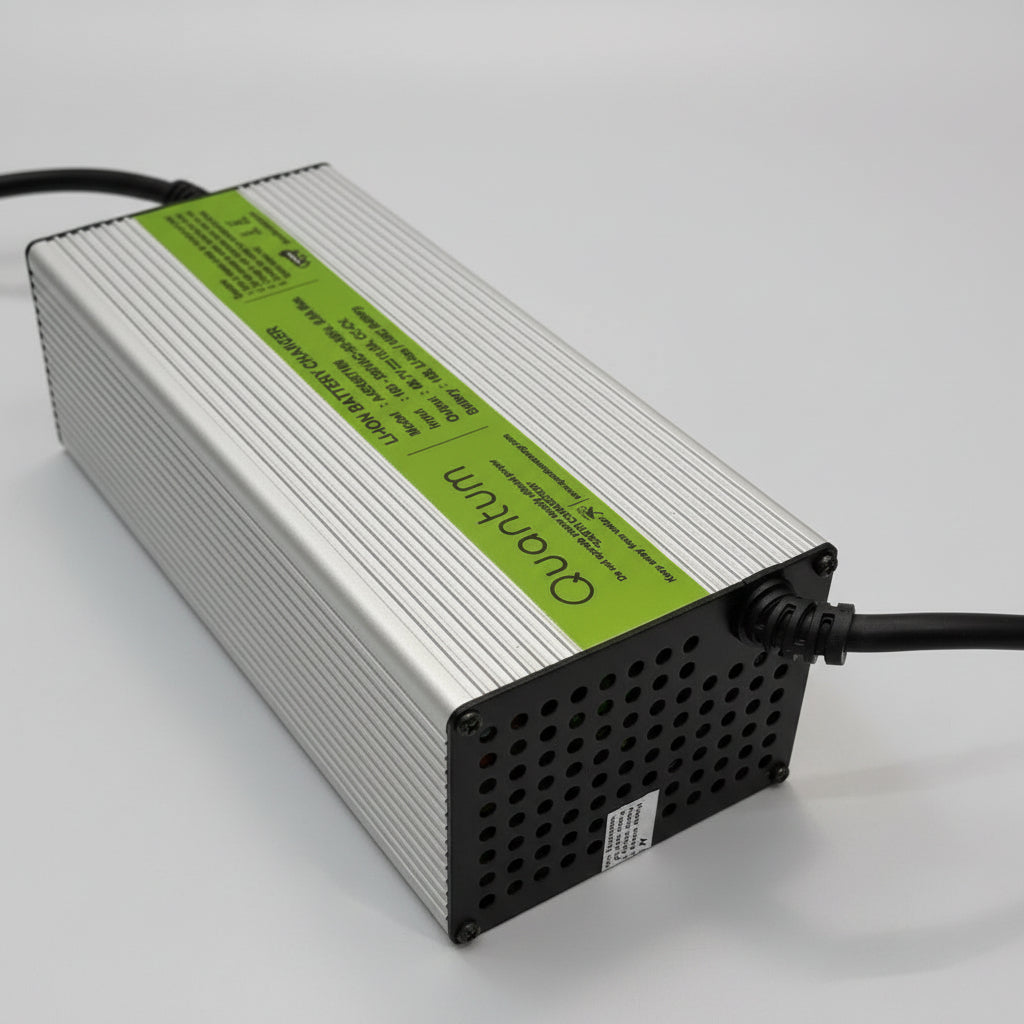

• Robust Build: Aluminium metal casing acts as a heatsink for passive cooling.

Mechanical Details:

• Body Material: Aluminium Extrusion Case
• Connector Type: D-Type 2+4 Pin (Rectangular)
• Safety Module: Integrated Earth Leakage Detector box on AC cable

Specification:

Input:

• Input Voltage: 180V - 280V AC
• Frequency: 50 - 60 Hz
• Max Input Current: 8.0 Amps Max

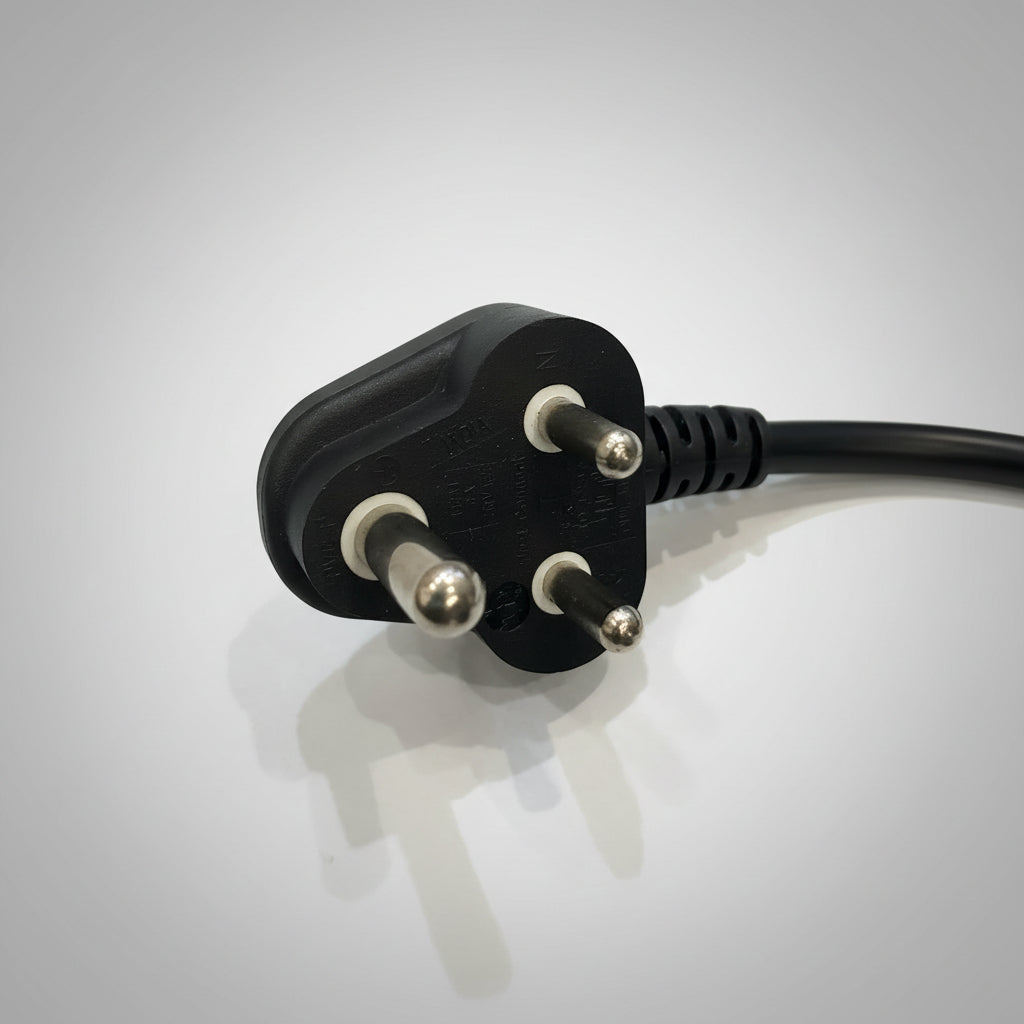

• Note: Connect input mains supply cord to a standard wall socket with proper grounding.

Output:

• Output Voltage: 66.7V DC
• Output Current: 10.0 Amps
• Charging Profile: CC-CV
• Battery Application: 16S, Li-Ion / NMC Battery
• Model: A4EK667100

Safety Instructions: Based on the cautions printed on the device label:

• Risk of Shock: Caution: Risk of electric shock, do not open.
• Environment: Do not expose to water, liquid, or vapour.
• Ventilation: Charge in a well-ventilated room.
• Connection: Ensure the battery is connected before mains ON.

Protection:

• Earth Leakage Protection (via DPEK100 module)
• Output Short Circuit Protection
• Over-Temperature Protection
• Output Overload Protection
• Reverse Polarity Protection

Warranty Terms: We provide service and care; the battery charger shall be free from material and workmanship defects for 6 months from the date of original invoice.

This warranty is void if:

• Serial number or seal is removed or tempered with.
• The charger shows signs of physical damage, abuse, or misuse.
• The unit has been opened or repaired by unauthorized personnel.
• Damage is caused by water, fire, or high-voltage power surges.
• The Earth Leakage Detector is damaged due to negligence.
