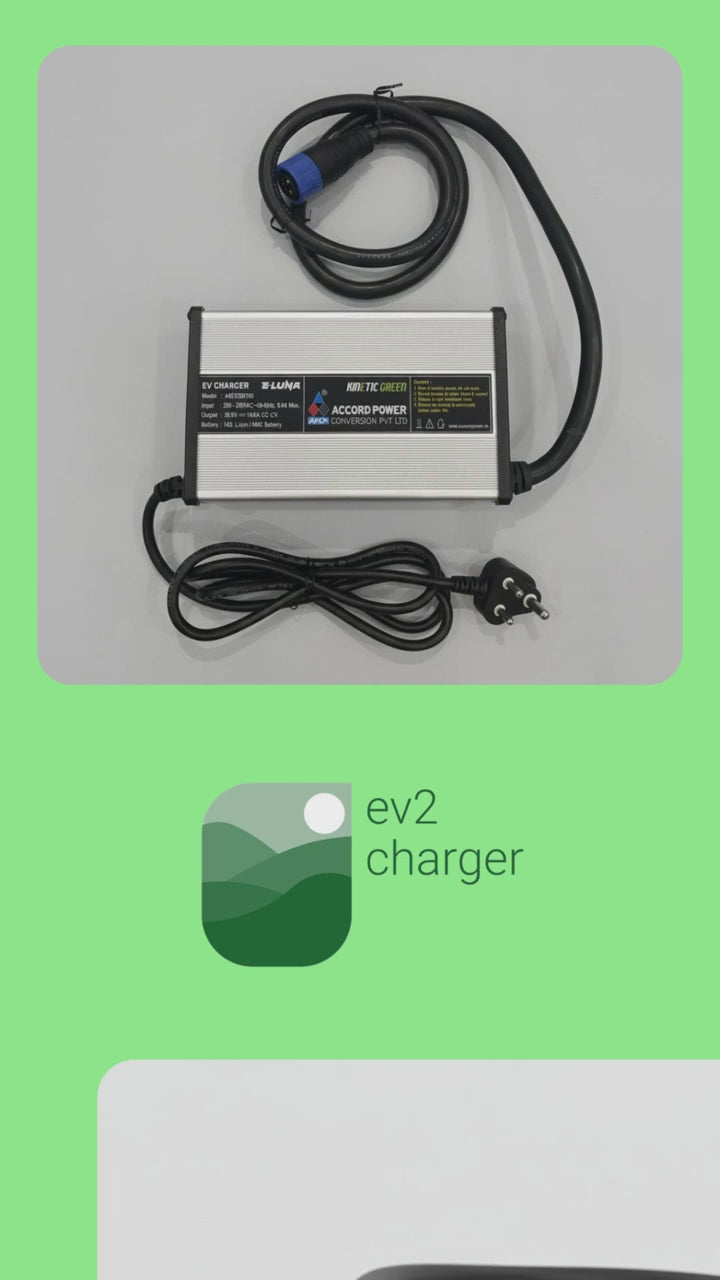

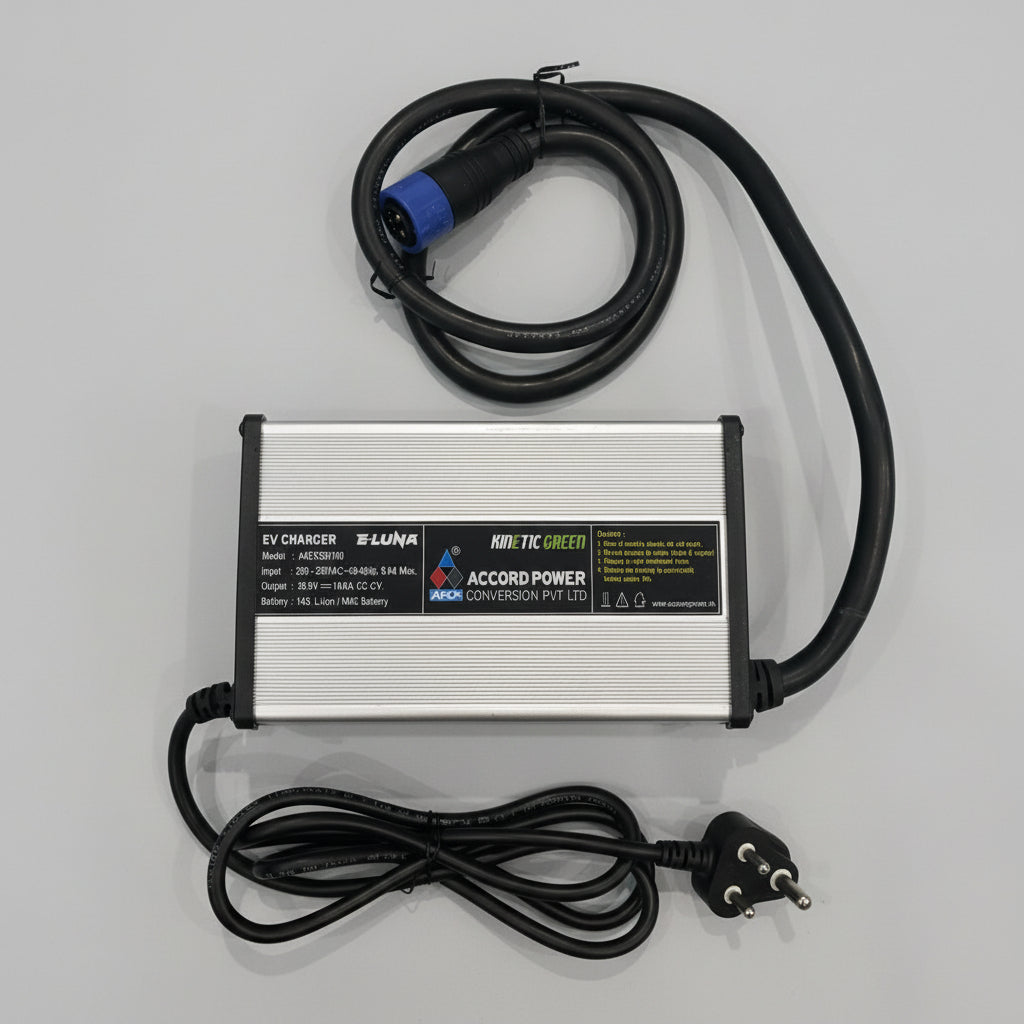

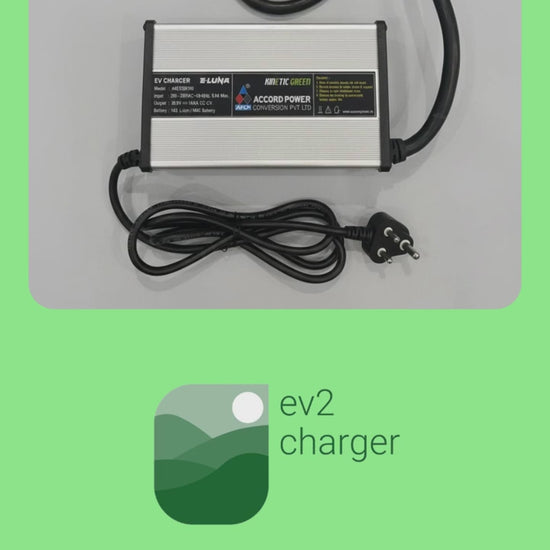

Kinetic Green E-Luna - 58.8V 10A Lithium Battery Charger (CAN Protocol) - Model A4EK588100

Original Kinetic Green E-Luna EV Charger, manufactured by Accord Power Conversion Pvt Ltd. This high-performance smart charger is designed specifically for 14S Li-Ion / NMC battery packs. It delivers a 58.8V 10A output using a CC-CV (Constant Current - Constant Voltage) charging profile to ensure optimal battery health. The charger features CAN Protocol support for intelligent communication with the vehicle's BMS and is housed in a durable aluminium metal casing for efficient heat dissipation.

Compatibility Note: This charger is designed for the Kinetic Green E-Luna. Please verify that the circular, multi-pin connector (Blue Chagori Connector) matches your scooter's charging port before purchasing.

Key Highlights:

• Origin: Made in India
• Warranty: 6 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details)
• Delivery: 3-10 Days

Technical Features:

• CAN Protocol: Supports smart communication with the battery management system.
• CC-CV Charging: Utilizes Constant Current and Constant Voltage charging modes.
• Battery Specific: Engineered for 14S, Li-Ion / NMC Batteries.
• Robust Construction: Aluminium extrusion body serves as a heatsink for passive cooling.
• Reliable Manufacturer: Produced by Accord Power Conversion Pvt Ltd.

Mechanical Details:

• Body Material: Aluminium Metal Case

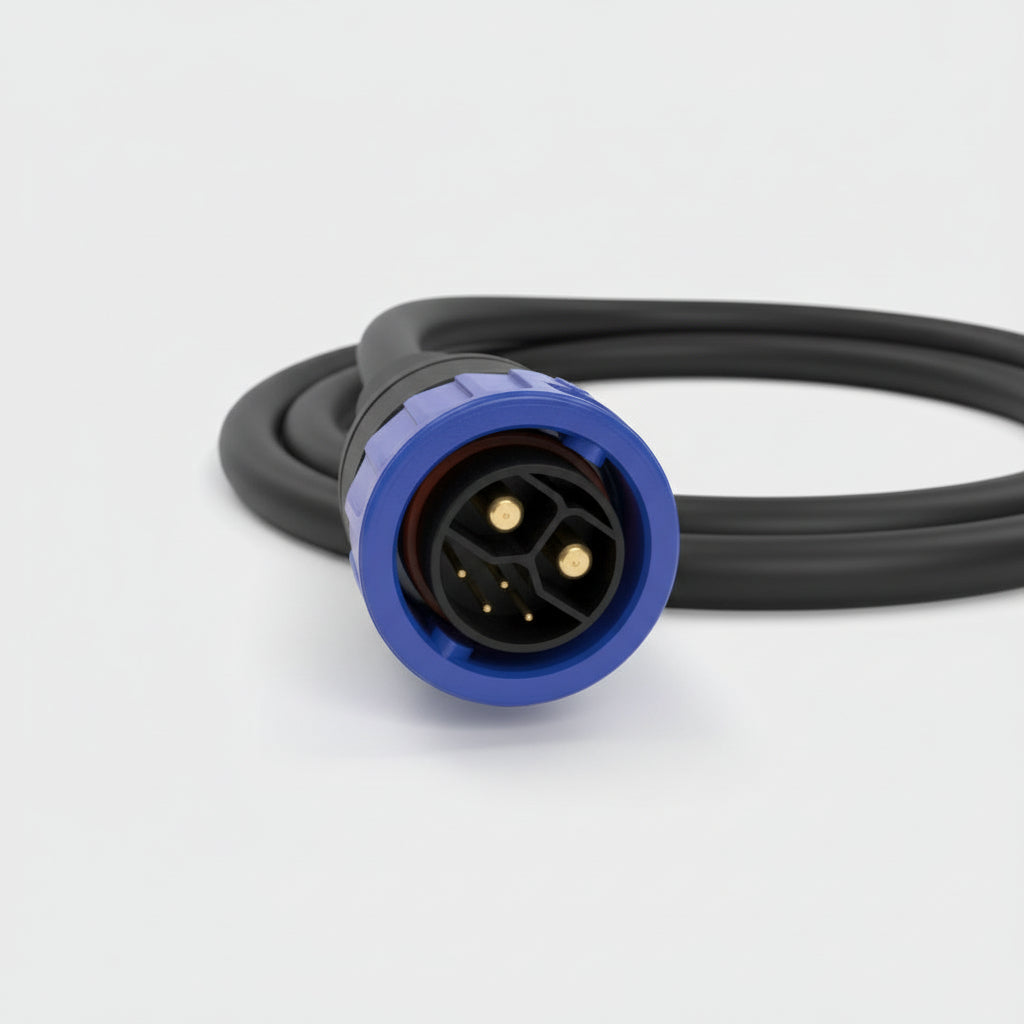

• Connector Type: Circular Multi-pin Connector (Blue Chagori 2+4 Connector)

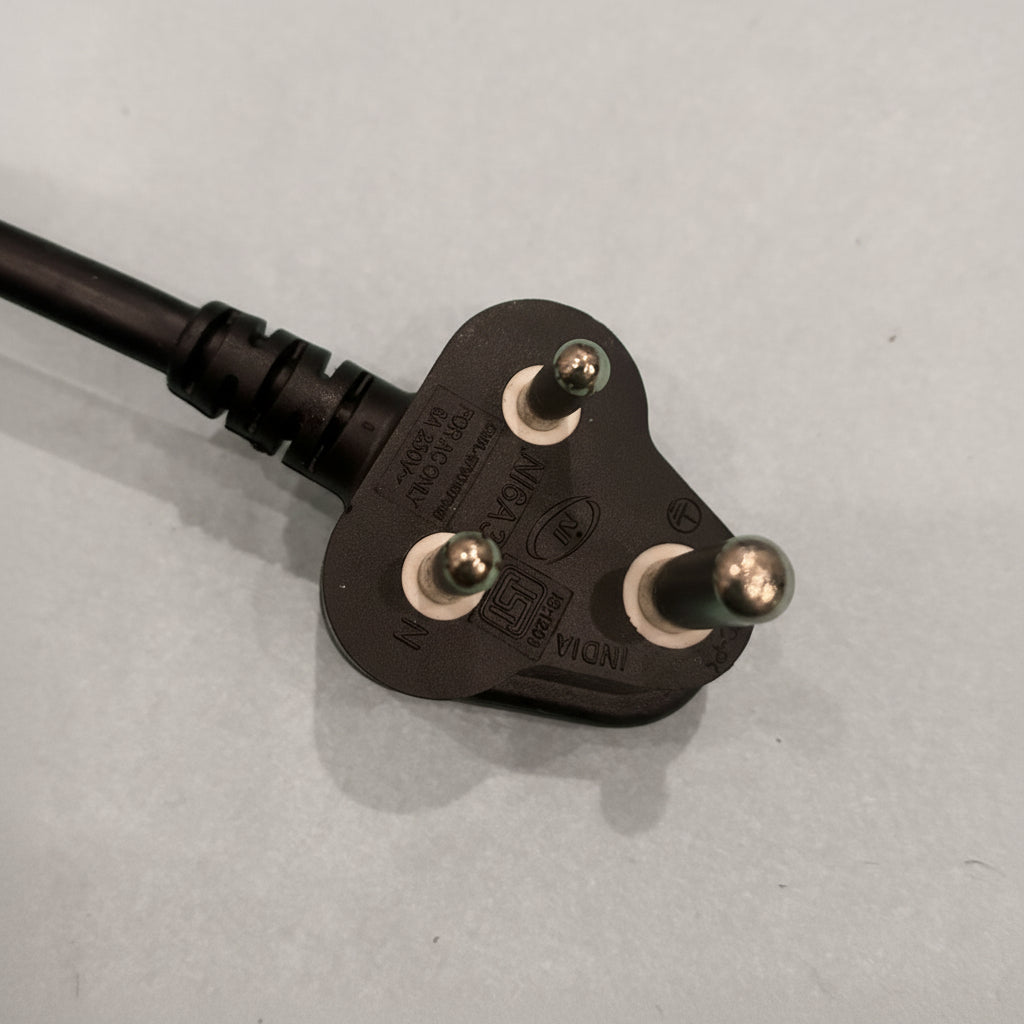

• Input Plug: Standard 3-Pin Indian Plug
• Weight: 2 Kg

Specification:

Input:

• Input Voltage: 200V - 280V AC
• Frequency: 50 - 60 Hz
• Max Input Current: 8.0 Amps Max
• Note: Connect input mains supply cord to a standard wall socket with proper grounding.

Output:

• Output Voltage: 58.8V DC
• Output Current: 10.0 Amps
• Charging Profile: CC-CV
• Battery Application: 14S, Li-Ion / NMC Battery
• Model: A4EK588100

Safety Instructions: Based on the cautions printed on the device:

• Connection Sequence: Ensure the battery is connected to the charger before turning on the mains power.
• Risk of Shock: Caution: Risk of electric shock, do not open the unit.
• Environment: Do not expose to water, liquid, or vapour.
• Ventilation: Charge in a well-ventilated room.

Protection:

• Over Temperature Protection (Passive cooling via heatsink)
• Output Short Circuit Protection
• Output Overload Protection
• Reverse Polarity Protection

Warranty Terms: We provide service and care; the battery charger shall be free from material and workmanship defects for 6 months from the date of original invoice.

This warranty is void if:

• Serial number or seal is removed or tempered with.
• The charger shows signs of physical damage, abuse, or misuse.
• The unit has been opened or repaired by unauthorized personnel.
• Damage is caused by water, liquids, fire, or high-voltage power surges.
• The charger is used with an incompatible battery or vehicle.
