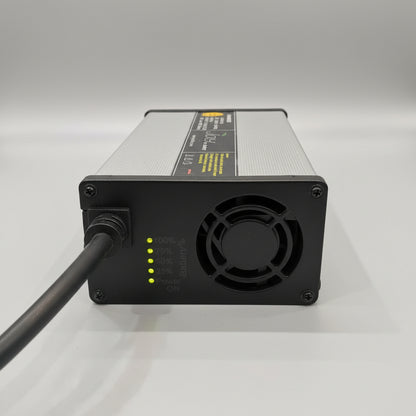

Joy e-bike 84V 10A Lithium Battery Charger (CAN Protocol) - Mihos, Nemo (D-TAP/D-TYPE Connecter)

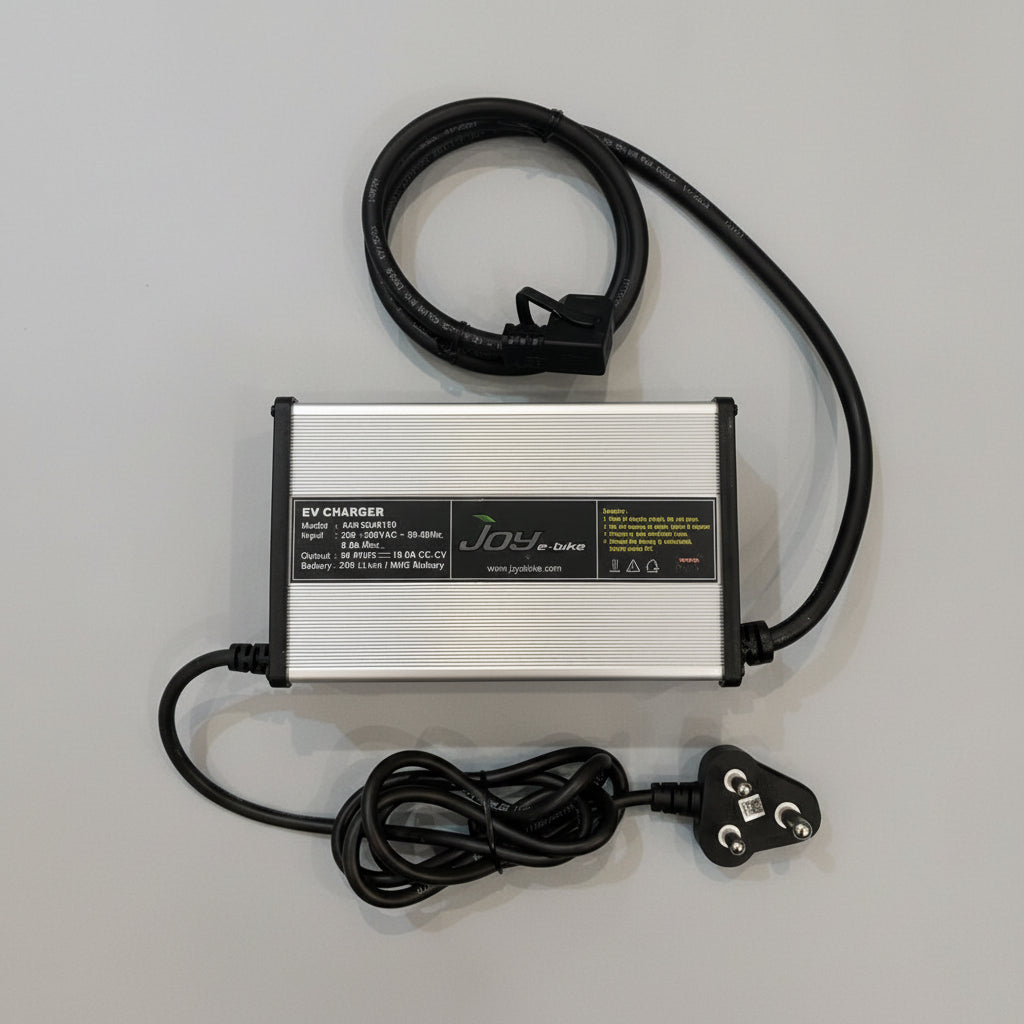

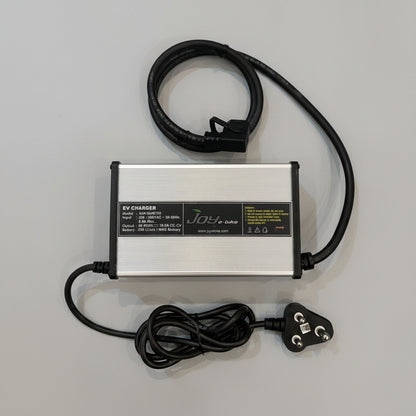

Original Joy E-Bike EV Charger (Model A6AK840100), manufactured by Accord Power. This premium smart charger is designed for high-performance electric scooters like the Joy E-Bike Mihos. It delivers a powerful 84V 10A output using a CC-CV (Constant Current - Constant Voltage) charging profile, specifically engineered for 20S Li-Ion / NMC Battery packs.

Compatibility Note:

• Vehicle: Joy E-Bike Models (e.g., Mihos) using the 84V system.

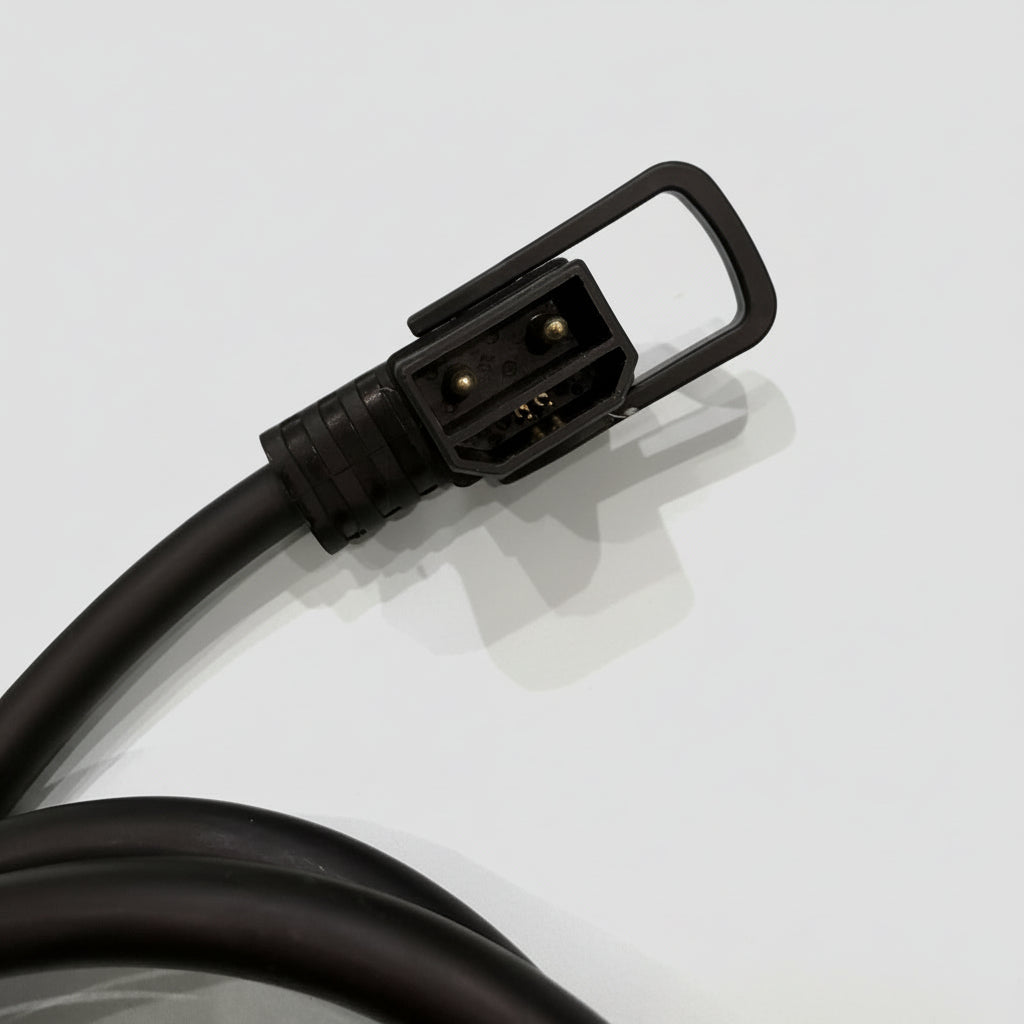

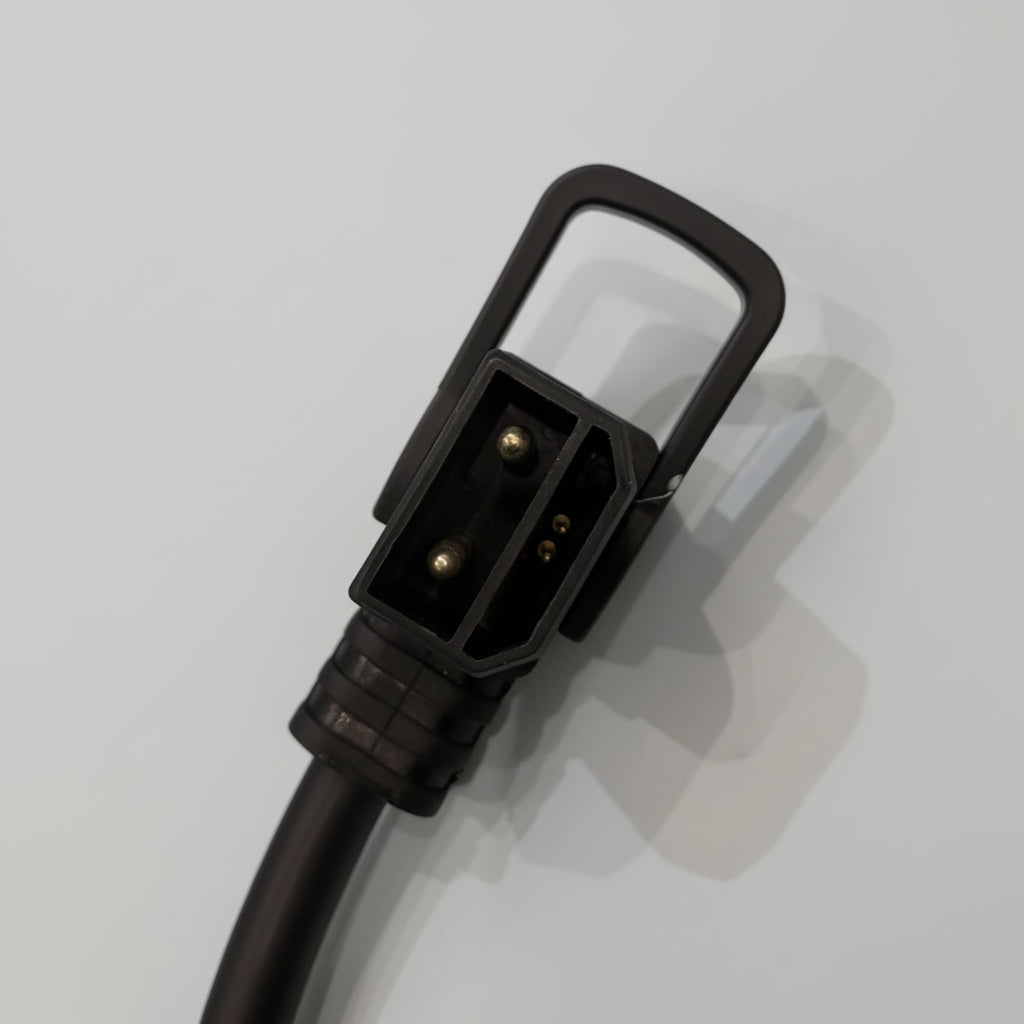

• Connector: D-Tap/D-Type 2+2 (Rectangular connector with angled cable entry).
• Please verify your scooter's charging port matches the connector shown in the images before purchasing.

Key Highlights:

• Origin: Made in India
• Warranty: 6 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details)
• Delivery: 3-10 Days

Technical Features:

• CAN Protocol: Enabled for smart communication with the BMS.
• High Power Output: 10 Amp current for fast charging.
• Battery Specific: Engineered for 20S Li-Ion / NMC Batteries.
• Safety Logic: CC-CV charging mode ensures battery longevity.

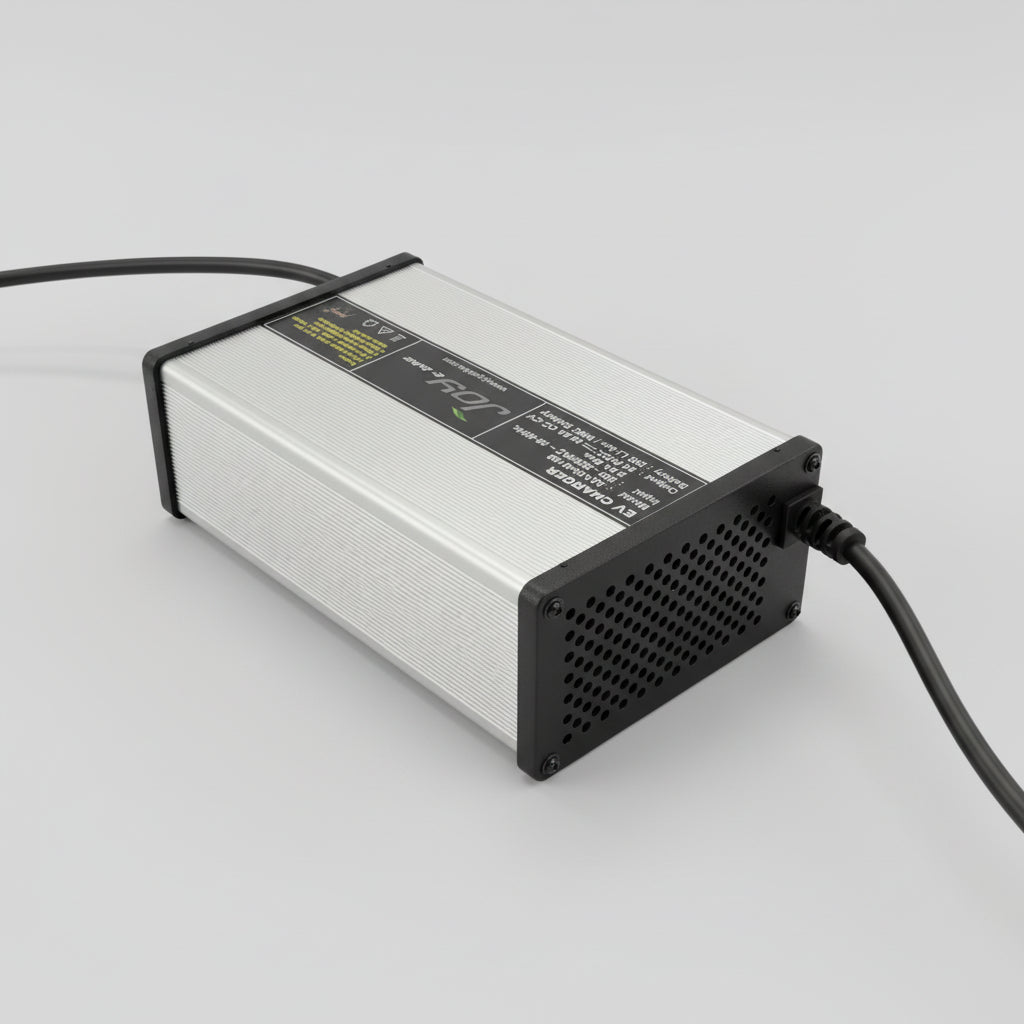

• Robust Build: Aluminium metal casing for durability and heat dissipation.

Mechanical Details:

• Body Material: Aluminium Extrusion Case
• Connector Type: D-Tap/D-Type 2+2 (Rectangular)

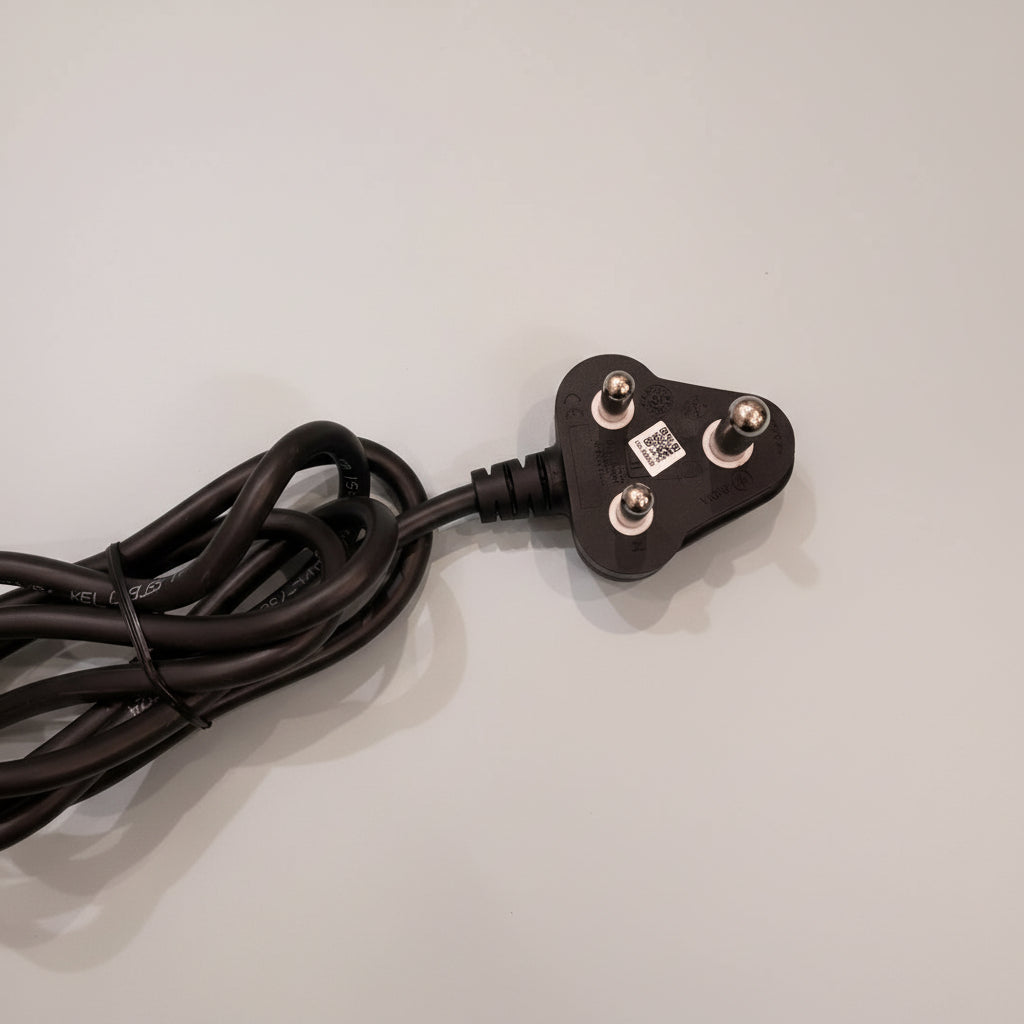

• Input Plug: Standard 3-Pin Indian Plug
• Cooling: Passive cooling via metal heatsink body

Specification:

Input:

• Input Voltage: 200V - 280V AC
• Frequency: 50 - 60 Hz
• Max Input Current: 8.0 Amps Max
• Note: Connect input mains supply cord to a standard wall socket with proper grounding.

Output:

• Output Voltage: 84.0V DC
• Output Current: 10.0 Amps
• Charging Profile: CC-CV
• Battery Application: 20S Li-Ion / NMC Battery
• Model: A6AK840100

Safety Instructions: Based on the device label:

• Risk of Shock: Caution: Risk of electric shock, do not open.
• Environment: Do not expose to water, liquid, or vapour.
• Ventilation: Charge in a well-ventilated room.
• Connection: Ensure the battery is connected before mains ON.

Protection:

• Output Short Circuit Protection
• Over-Temperature Protection
• Output Overload Protection
• Reverse Polarity Protection

Warranty Terms: We provide service and care; the battery charger shall be free from material and workmanship defects for 6 months from the date of original invoice.

This warranty is void if:

• Serial number or seal is removed or tempered with.
• The charger shows signs of physical damage, abuse, or misuse.
• The unit has been opened or repaired by unauthorized personnel.
• Damage is caused by water, fire, or high-voltage power surges.
• The charger is used with an incompatible battery or vehicle.
