Hero Electric Optima CX 5.0 - 58.4V 10A Lithium Battery Charger (CAN Protocol) (Phase 2)

Original 58.4V 10A Lithium Battery Charger, specifically engineered for the Hero Electric Optima CX 5.0. This charger utilizes the latest SMPS technology and adheres to AIS 156 Phase 2 standards with CAN Protocol communication. It features a specialized 2+6 Amphenol connector designed for seamless compatibility with 51.2V Lithium-Ion battery packs.

Compatibility Note: This charger is designed exclusively for the Optima CX 5.0. It is NOT compatible with the Optima CX 2.0.

Key Highlights:

• Origin: Made in India
• Warranty: 6 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details)
• Estimated Delivery: 3-10 Days

Technical Features:

• AIS 156 Phase 2 Compliant: Fully supports modern safety and communication standards (CAN Protocol).
• Zero Start Feature: Capable of activating and charging batteries even from low voltage states.
• Earth Leakage Detector: Enhanced safety mechanism to prevent shocks.

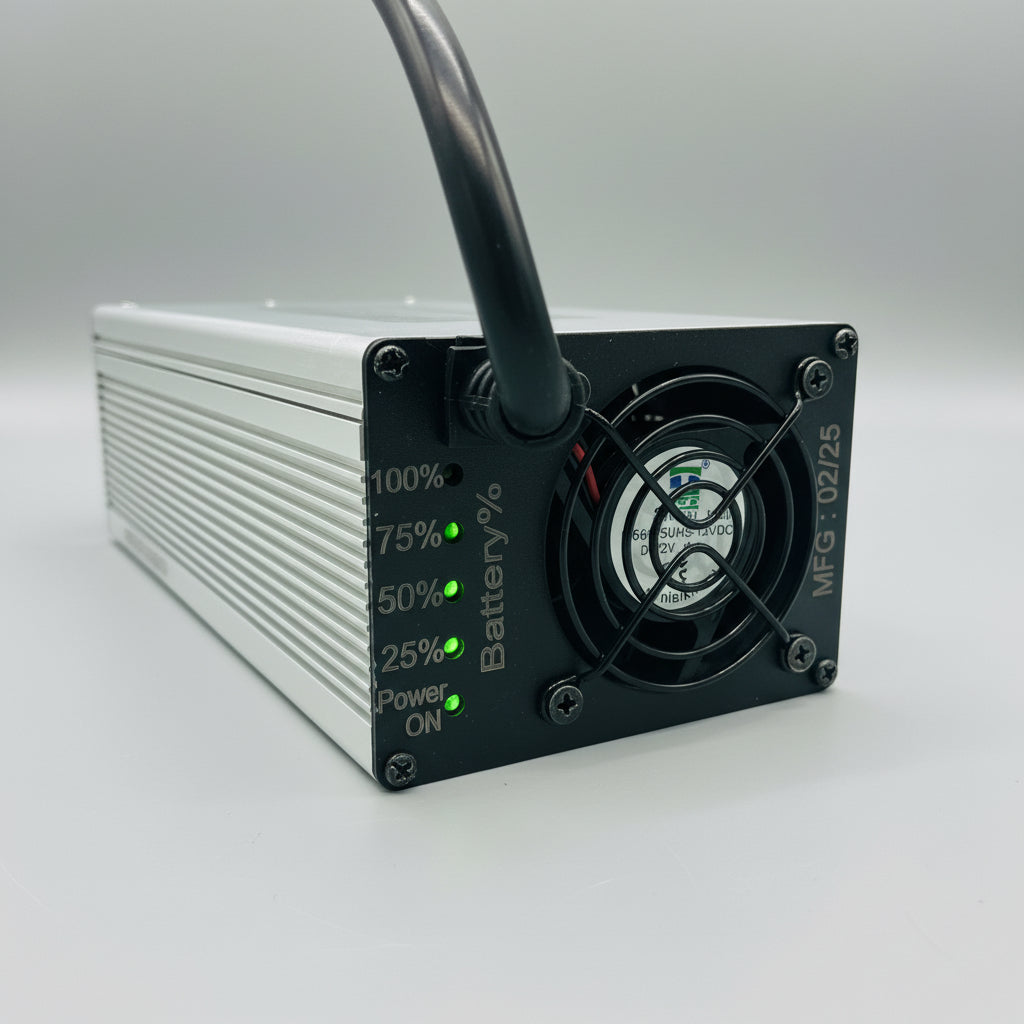

• Smart Indicators: LED display for Mains ON, Output ON, and Charging Stage (25%, 50%, 75%, 100%).
• Advanced Cooling: Forced air cooling via a built-in high-performance DC fan.
• High Efficiency: SMPS-based technology ensures >85% efficiency.

Mechanical Specifications:

• Dimensions (L x W x H): 20 cm x 10 cm x 8 cm
• Weight: 2 Kg

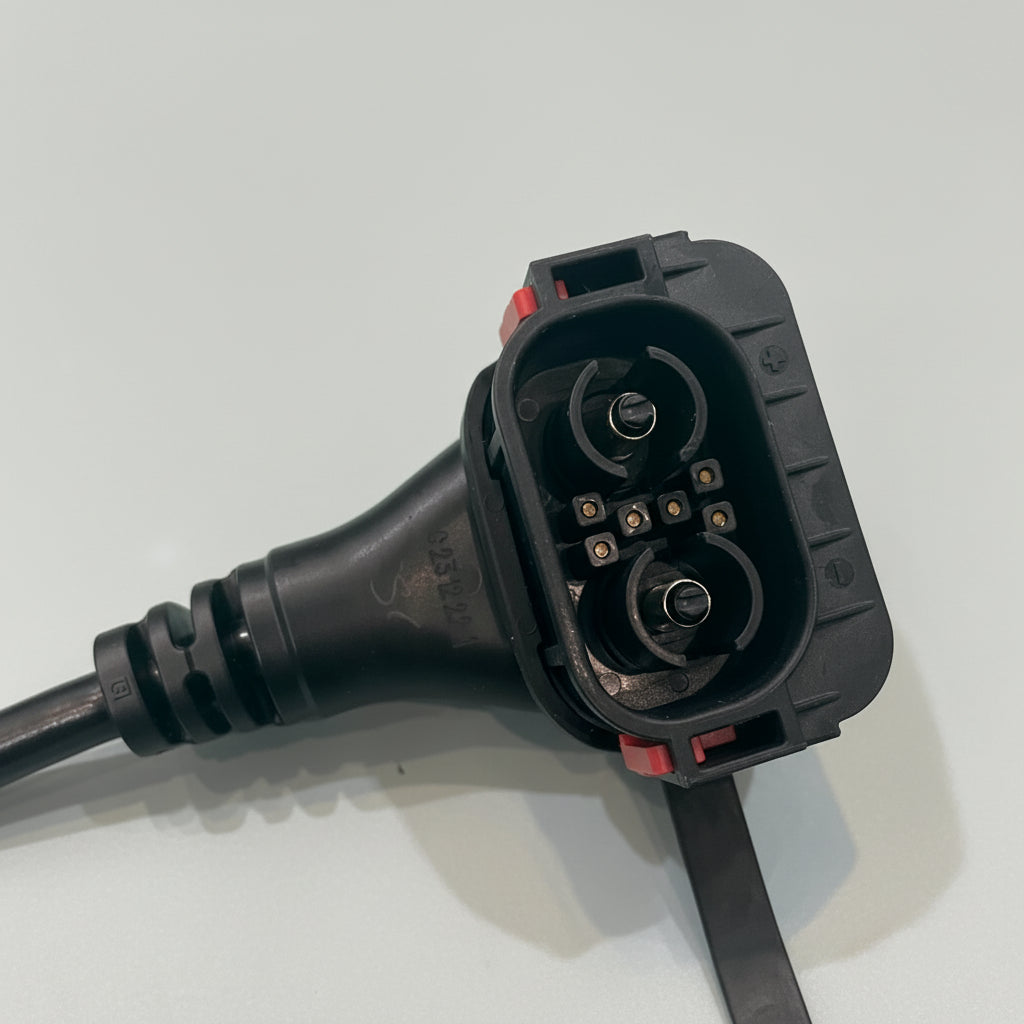

• Connector Type: Amphenol (2+6 Pin)

Electrical Specifications:

Input:

• Voltage Range: 180V - 280V AC
• Frequency: 50 - 60Hz
• Max Current: 6 Amps

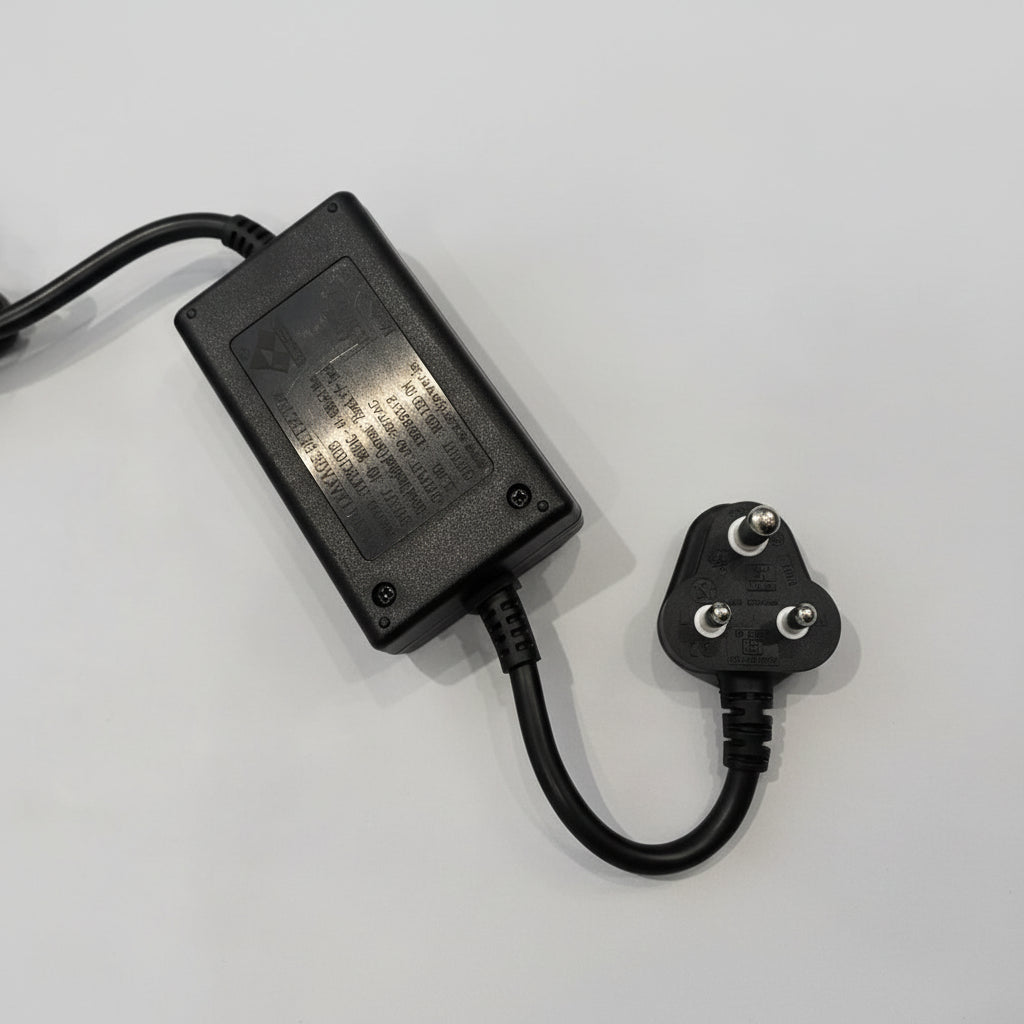

• Note: Connect the input mains cord to a standard 5Amp wall socket with proper grounding (Earth).

Output:

• Voltage: 58.4V DC
• Current: 10 Amps
• Battery Type: 51.2V Lithium-Ion

Safety Instructions:

• Strict Polarity Check: Ensure the Battery Positive (+ve) terminal connects to the Charger Positive (+ve) and Battery Negative (-ve) to Charger Negative (-ve).
• Do not touch uninsulated output wires.
• Connect the charger output cable (DC) to the battery connector firmly.

Protection Systems:

Output Short Circuit Protection

Over-Temperature Protection

Output Overload Protection

Battery Reverse Polarity Protection

We are committed to service and quality. This battery charger is warranted to be free from defects in material and workmanship for a period of 6 months from the date of the original invoice.

The warranty is void under the following conditions:

• Missing Identification: If the serial number or warranty seal is removed or missing from the unit.
• Physical Damage: Any damage resulting from abuse, misuse, dropping, or tampering.
• Unauthorized Repair: Attempted repair or maintenance by unauthorized personnel.
• Improper Connection: Damage caused by connecting the DC output to an AC source or vice versa.
• Negligence: Damage caused by negligent use, improper storage, or lack of care.
• Environmental Damage: Damage resulting from fire, water submersion, heavy dust, lightning, or other natural causes.
• Power Surges: Failures caused by severe power fluctuations or high-voltage surges.
