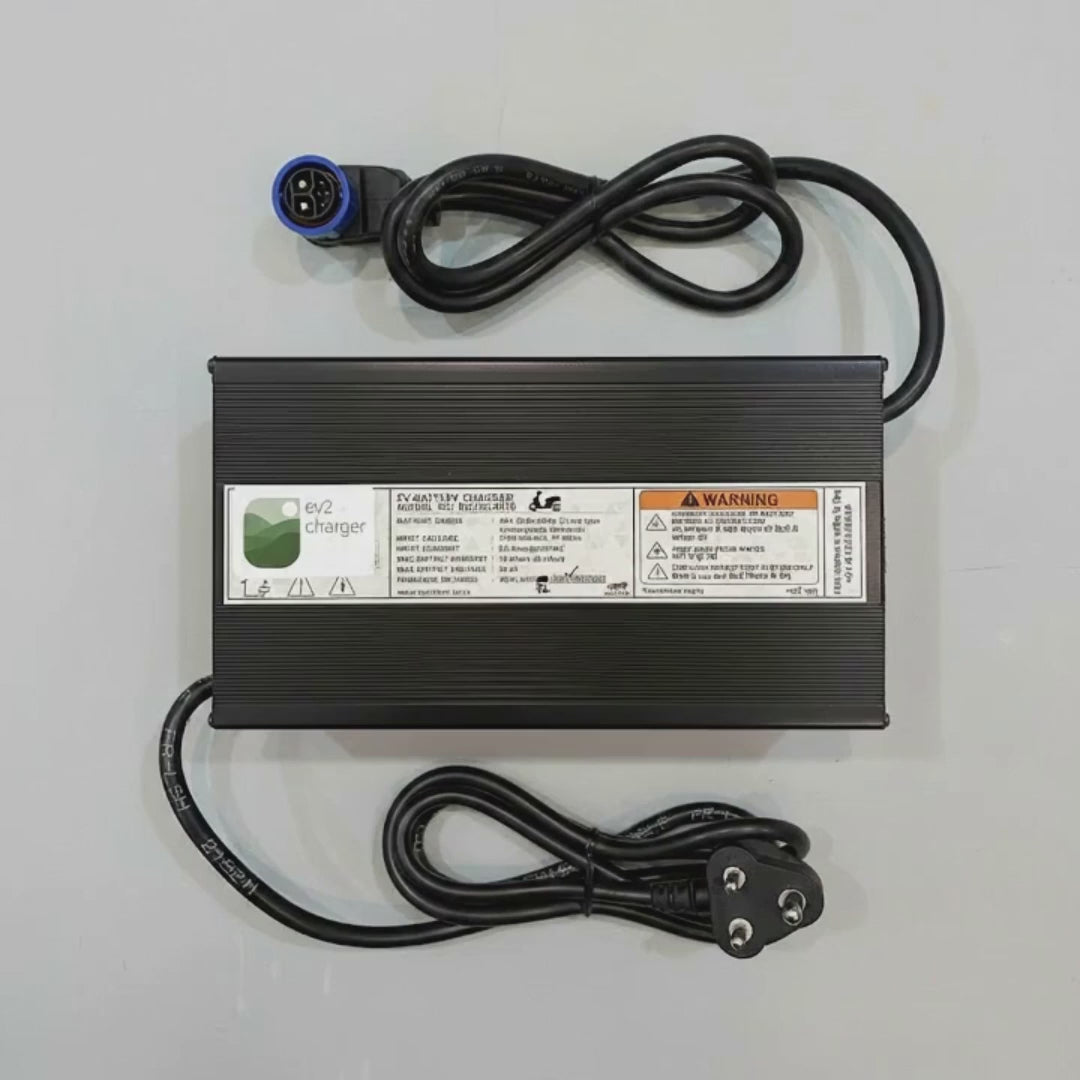

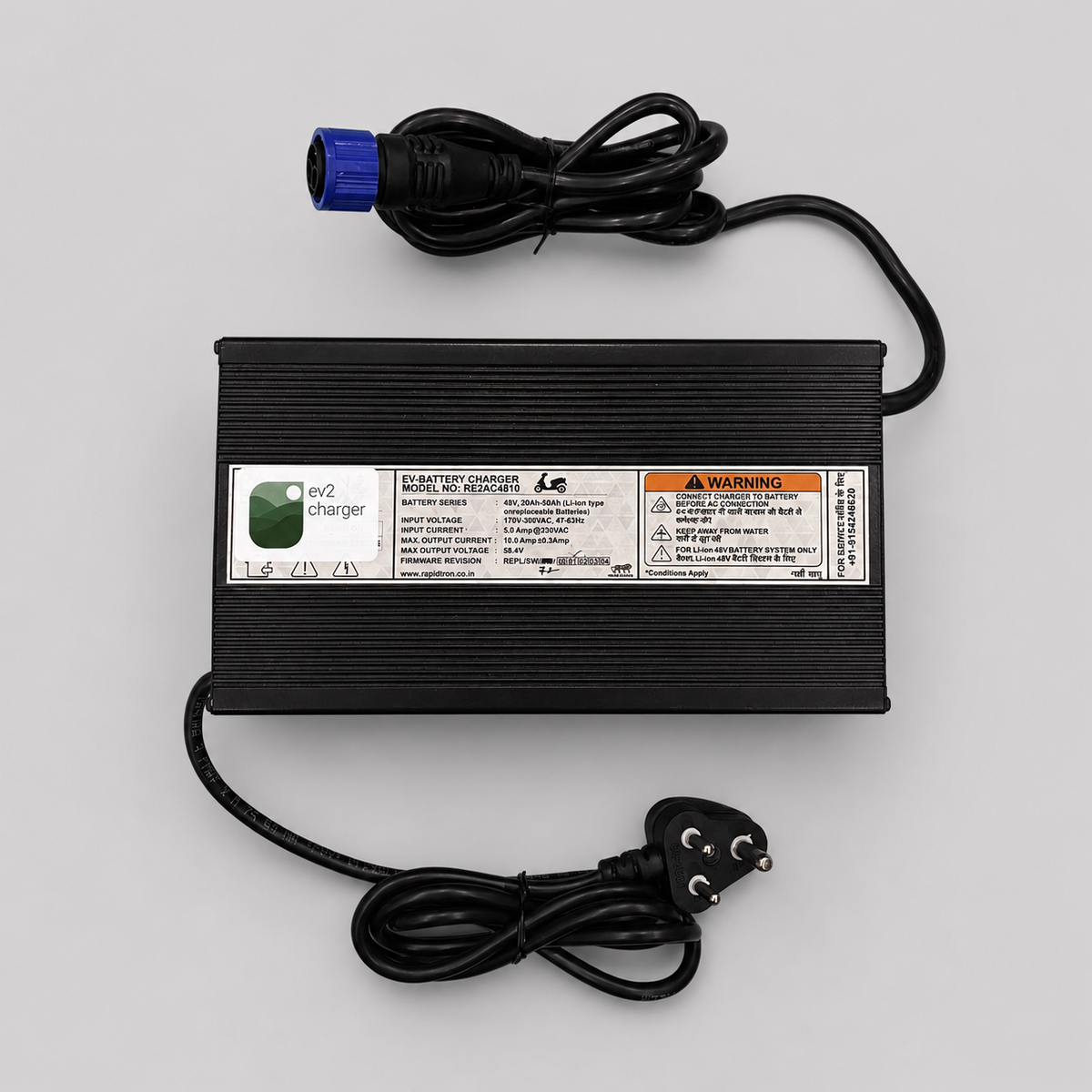

TVS iQube & Orbiter Charger 58V 10A - iQube, iQube S, iQube ST, Orbiter - Chagori Connector

Replacement 58V 10A charger for TVS iQube, iQube S, iQube ST, and TVS Orbiter electric scooters. Compatible with all iQube variants and the Orbiter using the standard Chagori (blue ring) connector and 48V battery system. This is a Non-CAN replacement charger.

Which charger do I need?
This charger is compatible with TVS iQube variants — iQube, iQube S, iQube ST — and the TVS Orbiter. All these models use the same Chagori (blue ring) connector and 48V battery system.
How to confirm your connector type:
- Look at the charging port on your scooter

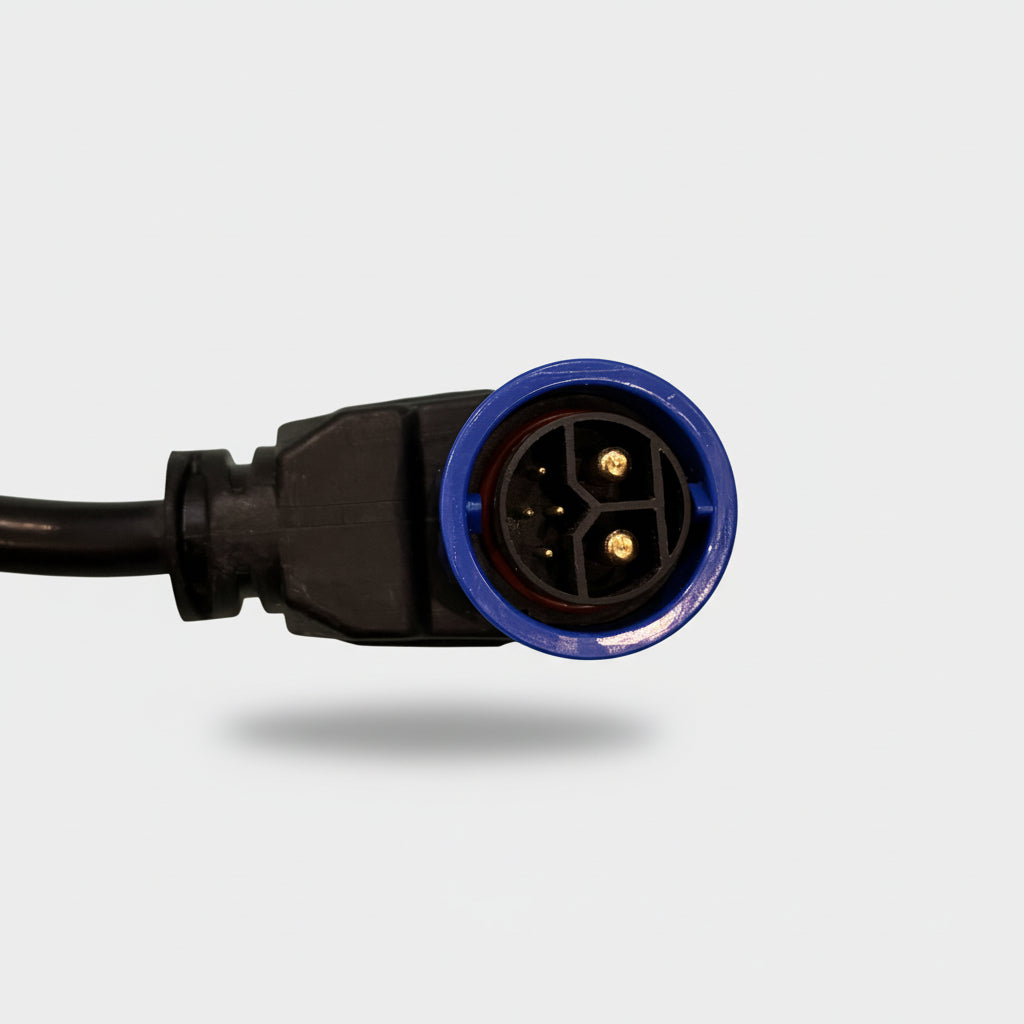

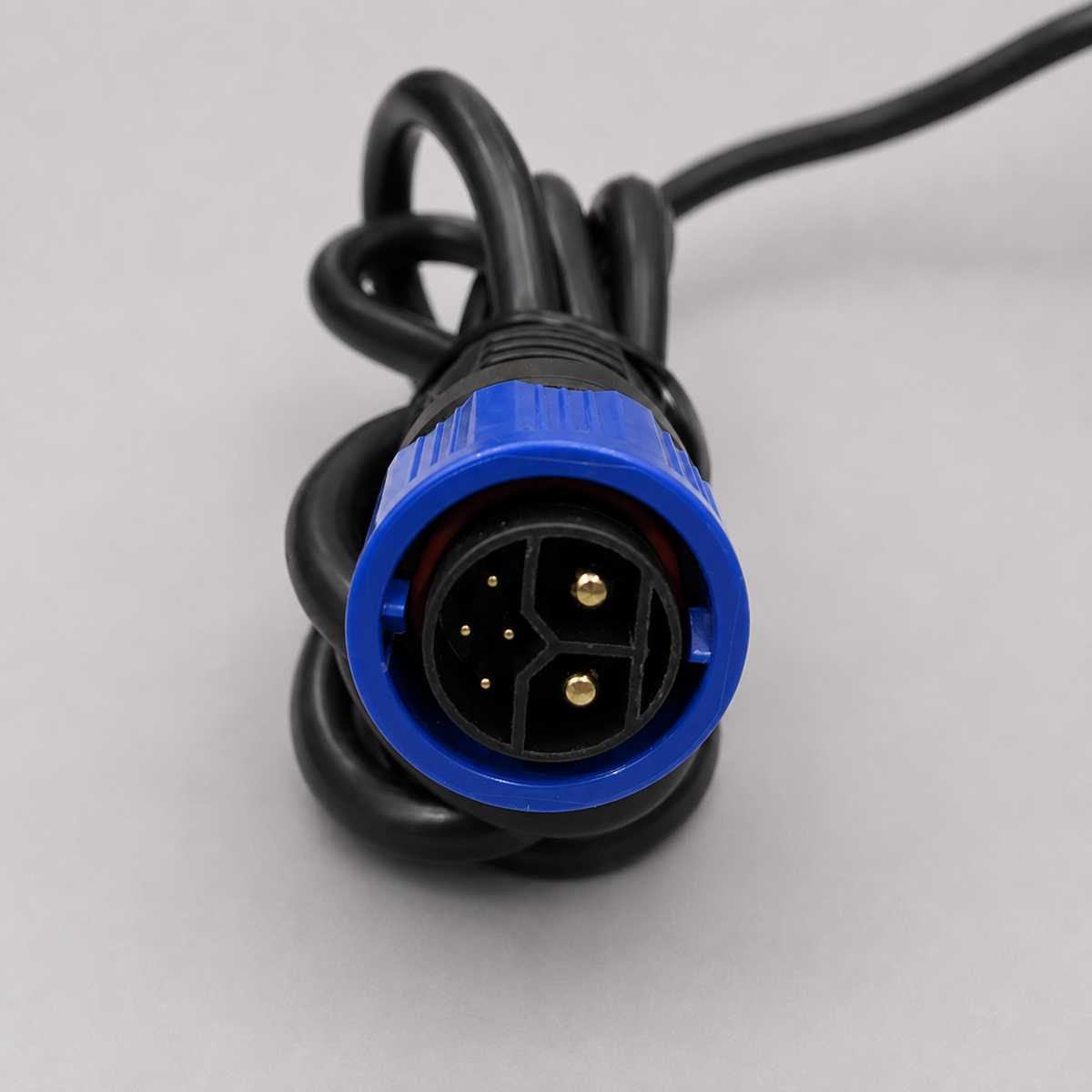

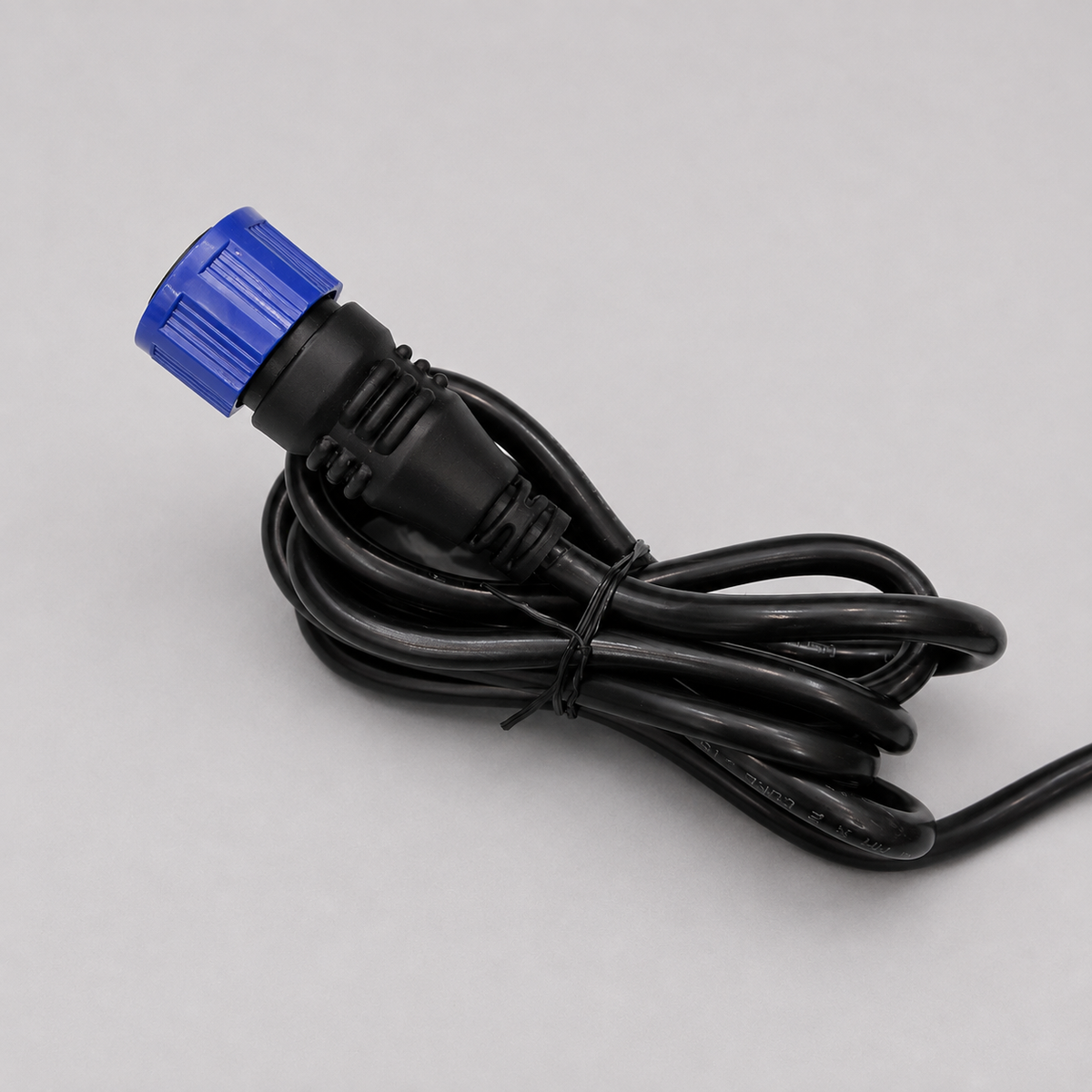

- Round port with a blue ring = Chagori connector ✅ This is the right charger

Key Highlights:

• Origin: Made in India
• Warranty: 12 Months from date of purchase
• Return Policy: 7 Days Return/Replacement
• Estimated Delivery: 3–10 Days

Key Features:

• 10A Output: Delivers a steady 10 Amp charging current. Charging time is approximately 4–5 hours for iQube and iQube S from empty.
• Wide Voltage Input: 170V–300V AC input range handles voltage fluctuations common in Indian power grids.
• Chagori Connector: Fits the charging port on all TVS iQube variants and the TVS Orbiter — no adapters needed.
• Auto Cut-Off: Automatically stops charging once the battery reaches full voltage (58.4V), protecting the battery from overcharging. Safe for overnight charging.

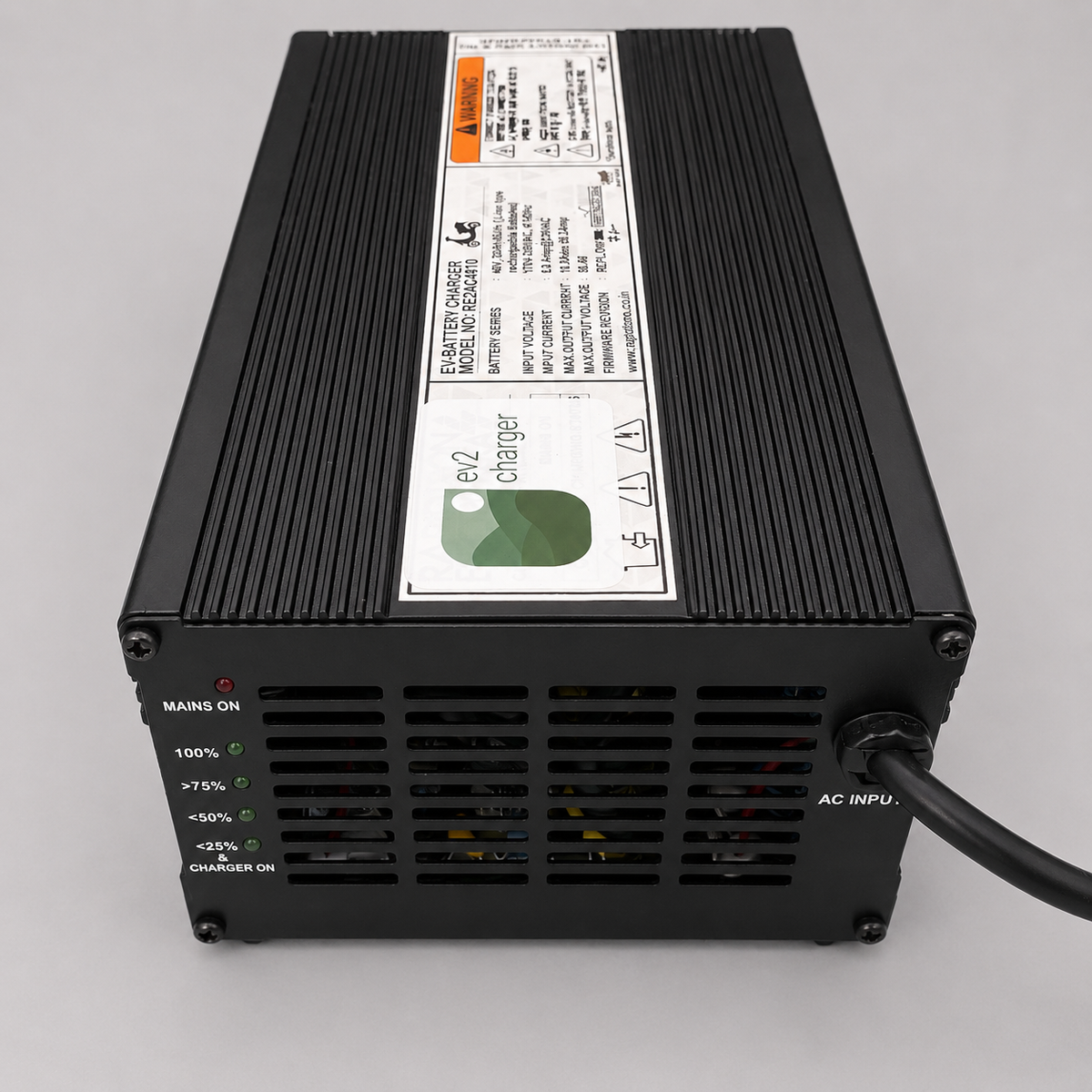

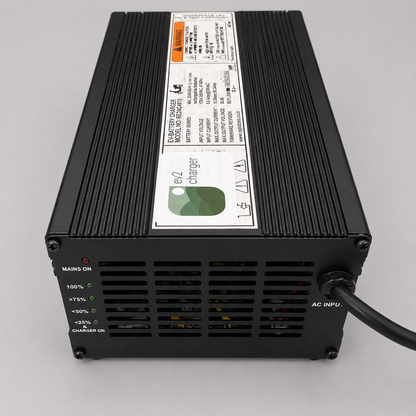

• Smart Indicator: Red LED indicates charging in progress. Green LED indicates charging complete.

Technical Specifications:

• Model: RE2AC4810
• Compatibility: TVS iQube, iQube S, iQube ST, TVS Orbiter
• Output Voltage: 58.4V DC (for 48V Li-Ion battery)
• Charging Current: 10.0A ± 0.3A
• Input Voltage: 170V–300V AC (47–63Hz)
• Connector Type: Chagori (Blue Ring)
• Indicators: Red LED (charging) / Green LED (full)

In the Box: 1x 58.4V 10A Charger, 1x Mains Power Cord (Indian Plug)

Safety Instructions:

• Connect DC output to battery before switching on AC mains
• Ensure wall socket has a proper Earth (Ground) connection
• Keep away from water; do not expose to rain or moisture

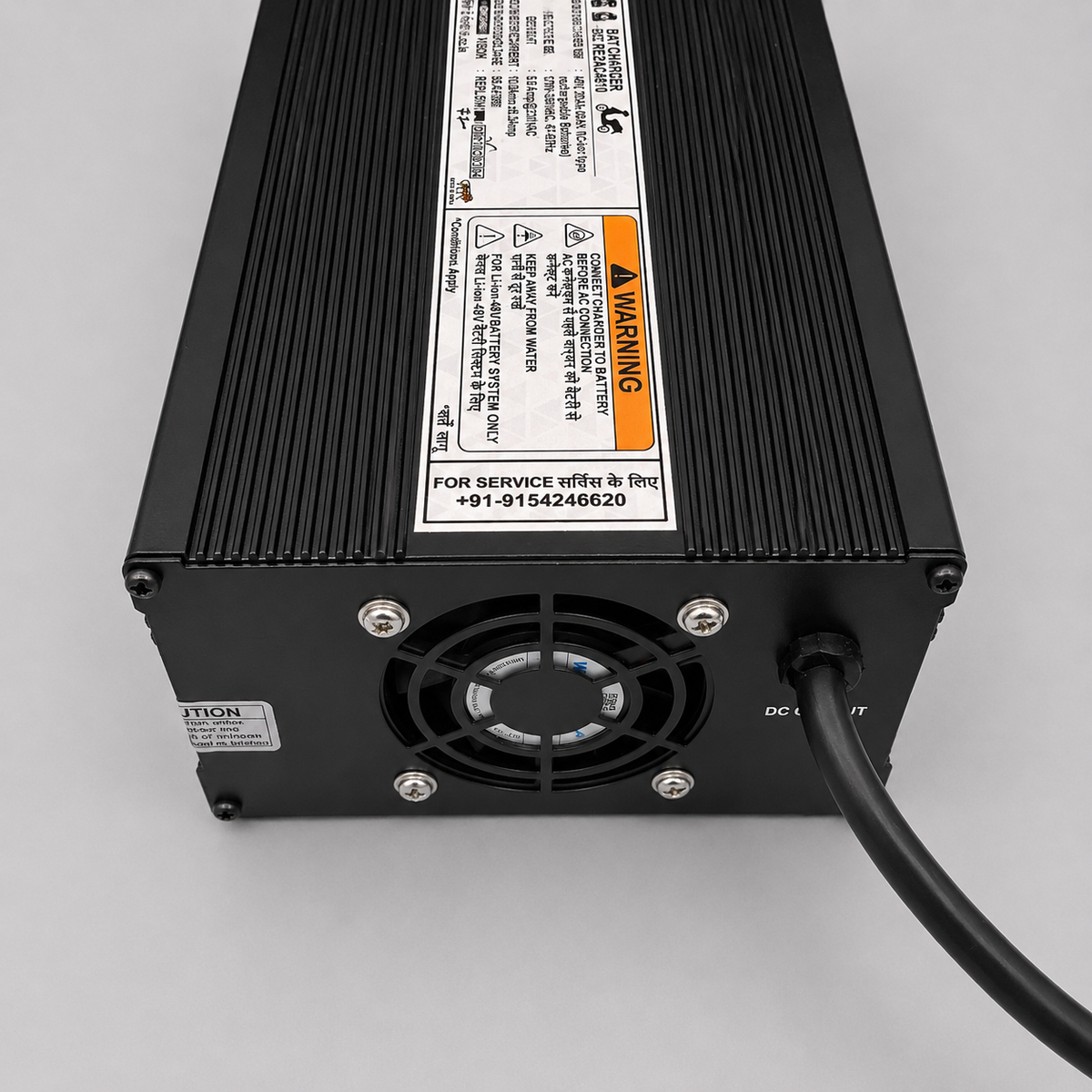

• Use in a well-ventilated area; do not cover the charger while in use

Protection Systems:

• Over-Temperature Protection
• Output Short Circuit Protection
• Output Overload Protection
• Battery Reverse Polarity Protection

Warranty Terms: Warranted against defects in material and workmanship for 12 months from the original invoice date. Warranty void if serial number or seal is missing or tampered, or damage results from misuse, unauthorized repair, improper connection, or environmental factors.

Looking for other TVS accessories?
→ TVS iQube & Orbiter Charging Cable — Chagori Male CAN 6-Wire 4ft
→ Browse all TVS products

❓ Frequently Asked Questions

Q: Is this charger compatible with TVS iQube S, iQube ST and TVS Orbiter?
A: Yes. This charger is compatible with TVS iQube variants — iQube, iQube S, iQube ST — and the TVS Orbiter. All models use the same Chagori (blue ring) connector and 48V battery system.

Q: How long does it take to fully charge my TVS iQube with this charger?
A: Approximately 4–5 hours for iQube and iQube S from empty. For iQube ST: approximately 6–7 hours for the 3.4kWh variant and 9–10 hours for the 5.1kWh variant at 10A output.

Q: Is this the original TVS iQube charger?
A: This is a replacement charger meeting the same 58V 10A specifications required for TVS iQube scooters. It is not a TVS Motor Company branded unit.

Q: My iQube charger stopped working — will this be a direct replacement?
A: Yes. Same Chagori connector, same 58V 10A output. Plug in and charge — no modifications needed.

Q: Does this charger have auto cut-off?
A: Yes. The charger automatically stops once the battery reaches full voltage (58.4V). The indicator light switches from red to green when charging is complete. Safe for overnight charging.

Q: What is the difference between this charger and the TVS iQube charging cable?
A: The charger is the full unit that plugs into the wall socket and charges your battery. The charging cable is only the cable that connects from the charger unit to the scooter's charging port. If your charger unit has failed, order this. If only the cable is damaged, see our TVS iQube & Orbiter Charging Cable instead.
