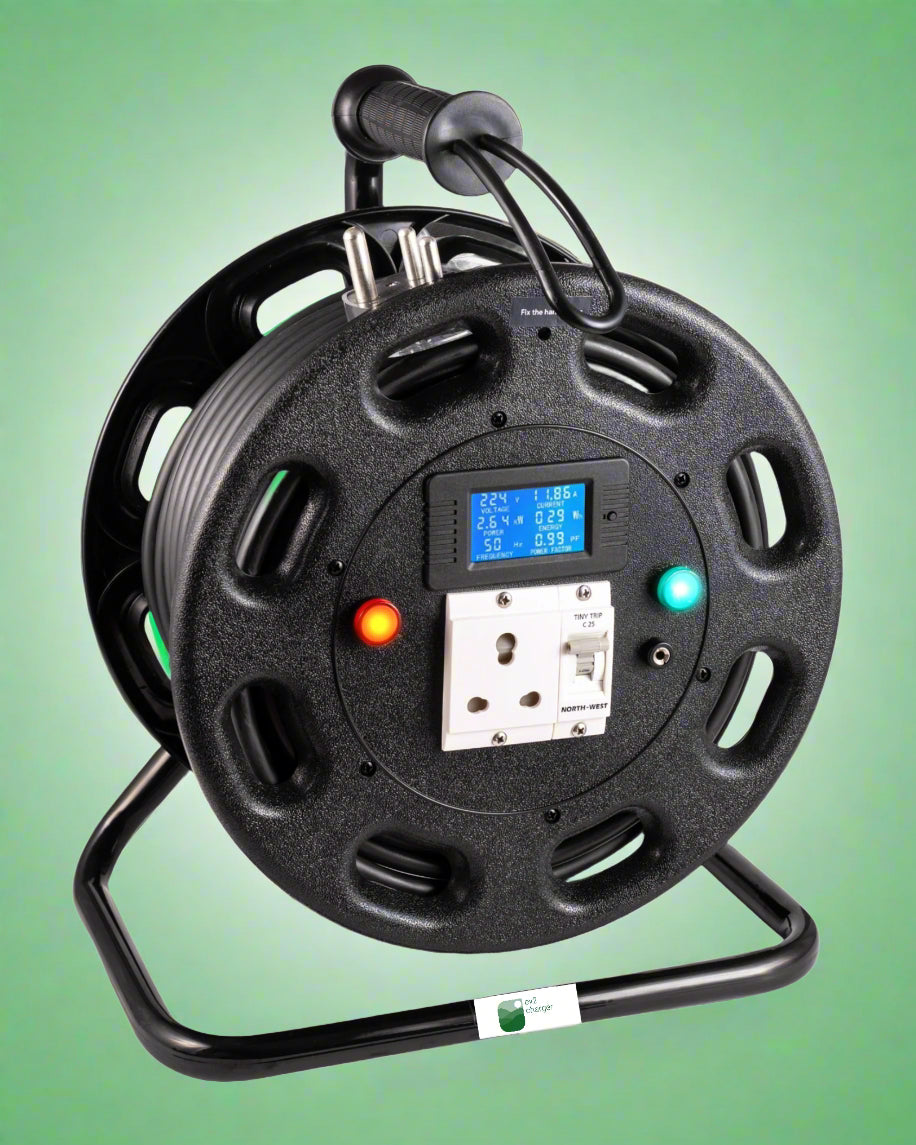

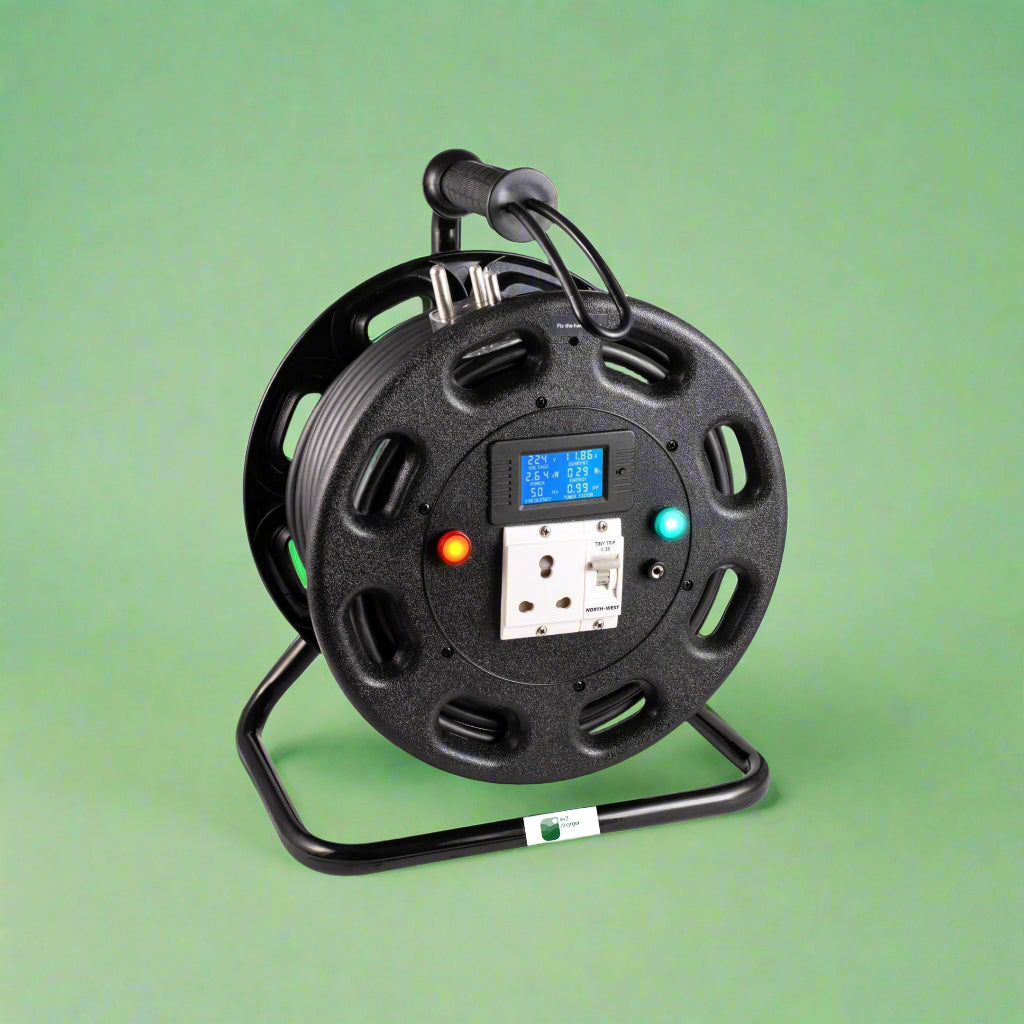

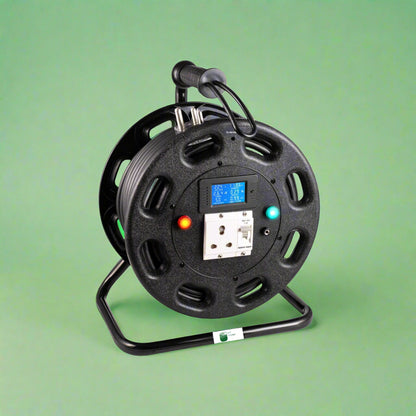

EV2 UltraX: Portable EV Charging Solution

This extension reel is designed to provide a safe and convenient charging solution for your electric vehicle, whether at home, while traveling, or in locations where a charging socket isn't available near your parking spot. It features a built-in earthing mechanism, ensuring a secure connection even in places without an existing grounding system.

Origin: Made in India

Warranty:

• 1 year (includes pickup and drop services for repairs)
• Replacement Guarantee: 15 days for malfunctions (subject to availability, or a full refund).

Return: 7 days Return/Replacement (Please read our Refund policy for more information)

Delivery: 3-10 days

Key Features

• Built-in Earthing Mechanism: The core feature is a built-in earthing mechanism with a 6 mm pure copper rod (grade: C10100). This ensures safe charging even in locations without proper grounding.
• Superior Grounding: While EV manufacturers recommend an earthing resistance of 5 ohms or better, the EV2 UltraX is engineered to provide an even lower resistance, averaging around 3 ohms. This provides an extra margin of safety and optimal charging performance.
• Safety Features: Includes a Miniature Circuit Breaker (MCB), a waterproof, heat-resistant, and fire-resistant cable, and the built-in earthing mechanism.
• Digital Energy Meter: Easily monitor key charging parameters including voltage, current, active power, energy consumed (kWh), frequency, and power factor. It also features an energy reset key.
• Wide Compatibility: The unit is compatible with a wide range of popular EV models, including Tata, Mahindra, MG, BYD, Hyundai, Kia, Mercedes-Benz and Volvo.

Specifications

Cable Properties:

• Model: EV2 UltraX
• Length: 25 meters
• Conductor: 3-core copper, 4 sq mm
• Current Rating: 44 Amp
• Weather Resistance: Operates in temperatures from -55°C to 50°C
• Durability: Fire-resistant and waterproof cable

Electrical Specifications:

• Compatibility: Single-phase Indian standard 16 amp socket
• Plug Top: 25 Amp type M
• Socket: 25 amp
• MCB: 25 amp

Physical Details:

• Dimensions: 14” inches x 12” inches x 8 inches
• Weight: 8.6 kg
• Housing Material: Lightweight fiber body with a powder-coated metal stand
• Reel Mechanism: Manual

Important Usage Guidelines

• Charging Location: Use with any compatible single-phase 16 amp socket.
• Weather Resistance: The cable is waterproof and can be left outside, but the main reel unit and charger should be kept dry and in the shade.
• Earthing Rod: Refer to the detailed instructions in the included manual for proper usage of the built-in earthing rod. If your EV's safety system detects an earthing resistance above 5 ohms, it may prevent charging. In this case, we will assist you with an external earthing mechanism.

Warranty Terms

We stand by the quality of our product. This warranty guarantees that the EV charging extension reel will be free from defects in material and workmanship. This warranty will be voided if:

• The product has been subjected to abuse, misuse, or tampering.
• The serial number or seal is not present or has been removed.
• Repairs or maintenance are performed by unauthorized personnel.
• Damage results from improper connection, negligent use, or environmental factors like fire, water, dust, wind, or power fluctuations.
