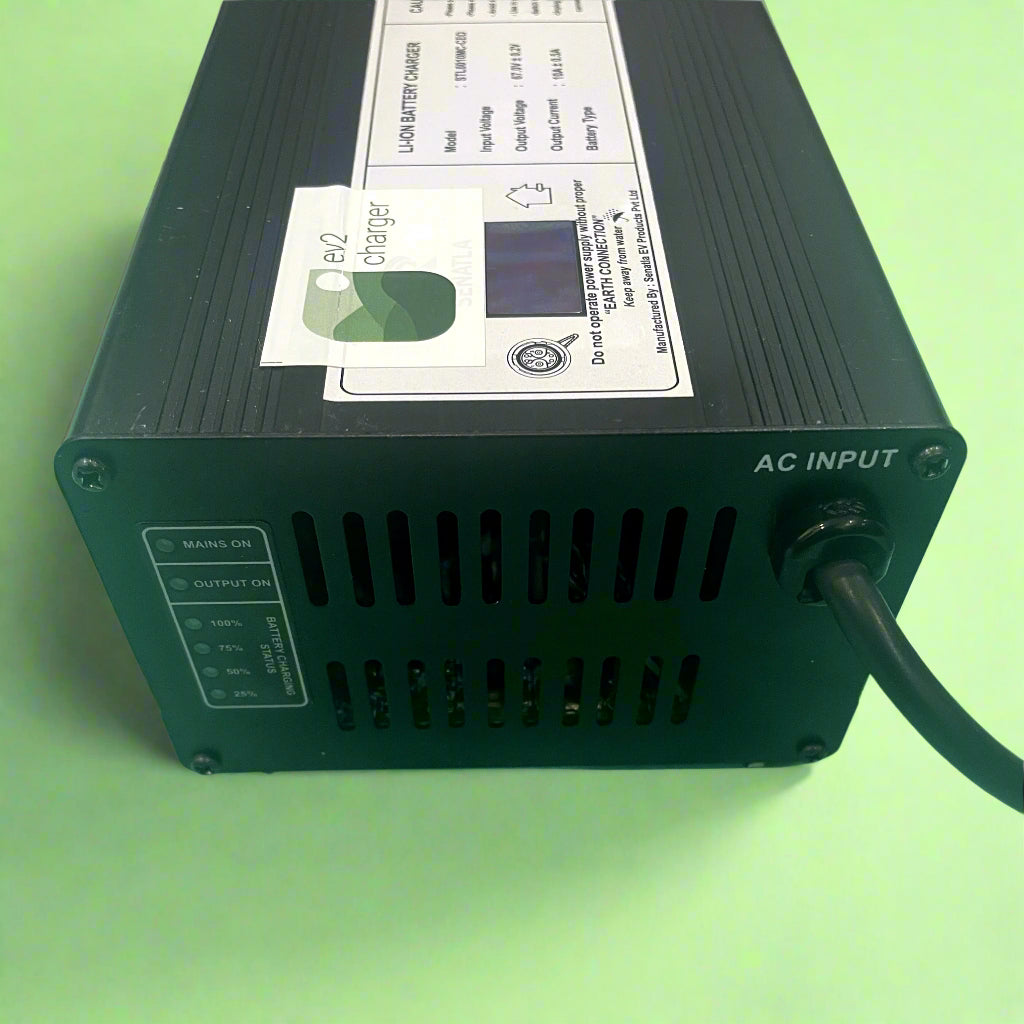

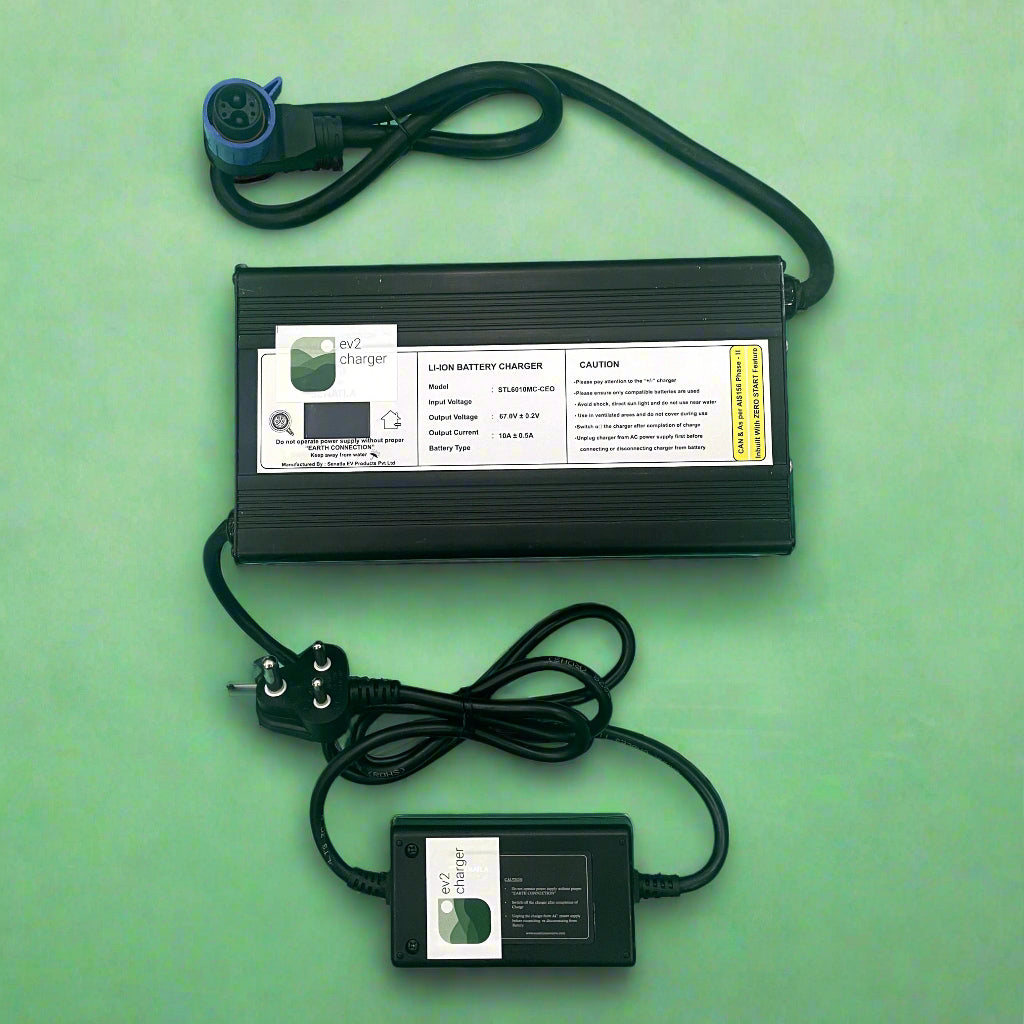

BGauss 67V 10A Lithium Battery Charger (CAN Protocol) - C12i MAX, C12i MAX 2.0, D15

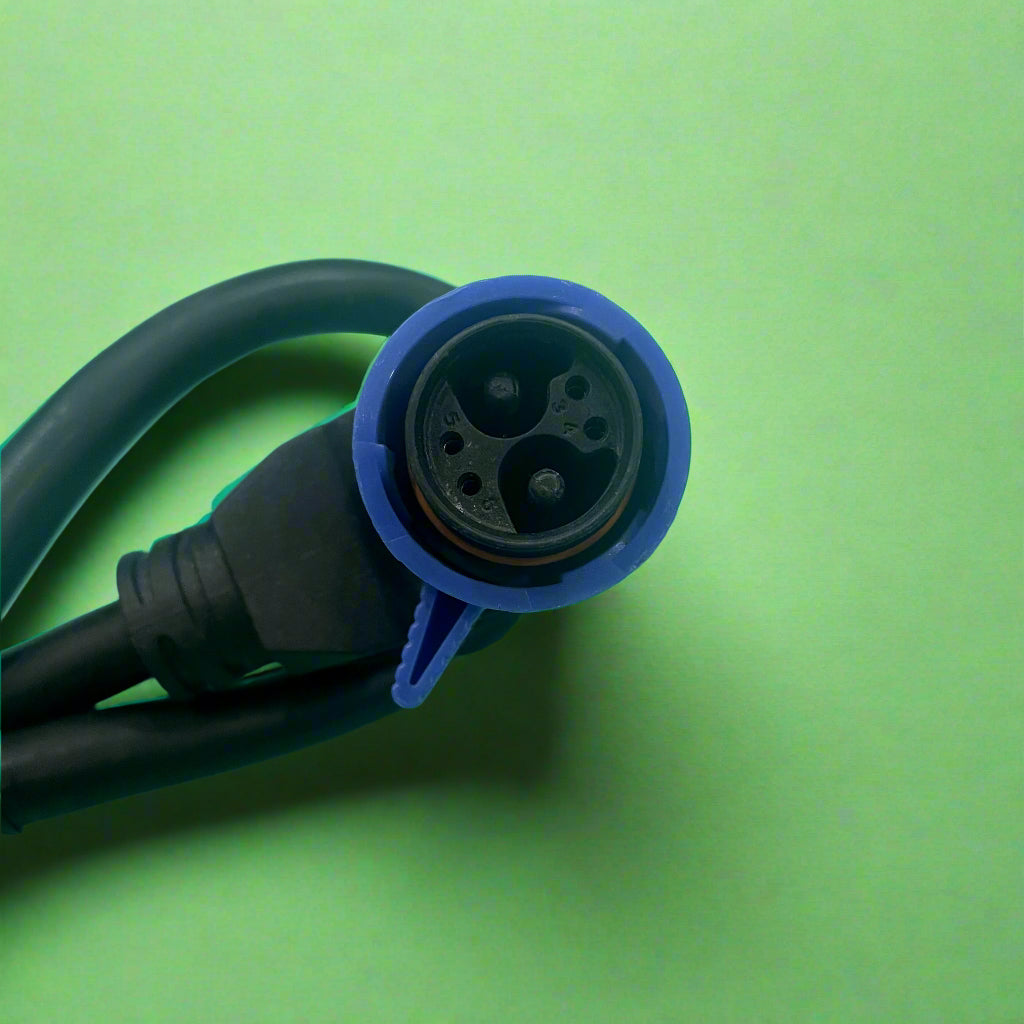

67V 10A battery charger (CAN protocol phase 2) with 2+4 male Chagori connector for 3.2KW and 2.7KW lithium batteries specially used in BGauss electric scooters like C12i MAX, C12i MAX 2.0 and D15 respectively.

Origin: Made in India

Warranty: 6 Months from the date of purchase

Return: 7 days Return/Replacement (Please read Refund policy for more information)

Delivery: 3-10 days

Features:

• Inbuilt with Zero Start feature
• CAN and As per AIS 156 Phase 2
• SMPS based technology
• Forced air cooling by built in DC fan
• LED Indication for Mains ON, Output ON, Charging percentage (25%, 50%, 75%, 100%)
• High Reliability

Mechanical Details:

• Dimension(L*W*H) : 22CM 12CM  8CM
• Weight : 2.2 Kg

Specification:

Input:

• Input Voltage : 170-300V
• Frequency : 47-63Hz
• Input AC Current : Max 5 Amps
• Connect input mains supply cord to the 5Amp Ac plug wall socket with proper grounding
• Make sure that Earth(Ground) is connected

Output:

• Output Voltage : 67 V
• Output Current : 10 Amps
• Efficiency : greater than 85%
• Do not touch uninsulated output wires
• Connect the charger output cable with connector (DC OUTPUT) to the battery connector
• Make sure that Battery +ve terminal connected to +ve terminal of charger and Battery -ve terminal connected to -ve terminal of charger

 Protection:

• Output short circuit
• Over Temperature
• Output Overload
• Battery reverse protection

Warranty Terms:

We provide service and care, the battery charger shall be free from the material and workmanship for 6 months from the date of original invoice.
This warranty does not include any damage to, malfunctioning or improper operation of battery charger resulting to

• If serial number or seal is not present on unit, warranty will be void
• Abuse, misuse or tampering
• Repair or maintenance of battery charger or related equipments
• Improper connection may damage charger. means in place of AC connection DC
• Negligent use, operation, care, cleaning, storage or handling
• Fire, water, dust, wind lighting or other natural causes
• Power fluctuation due to surge
