BattRE Storie 67.2V 10A Lithium Battery Charger (CAN Protocol) (Phase 1)

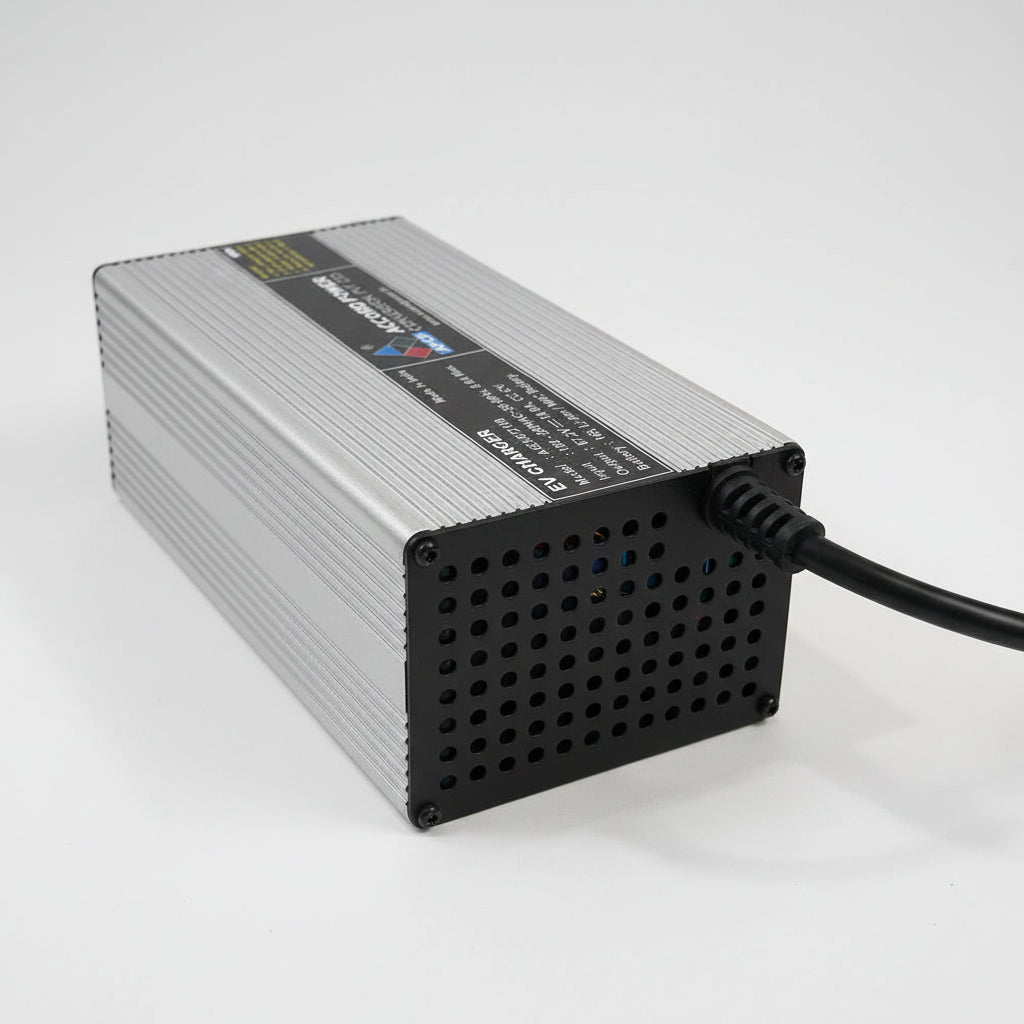

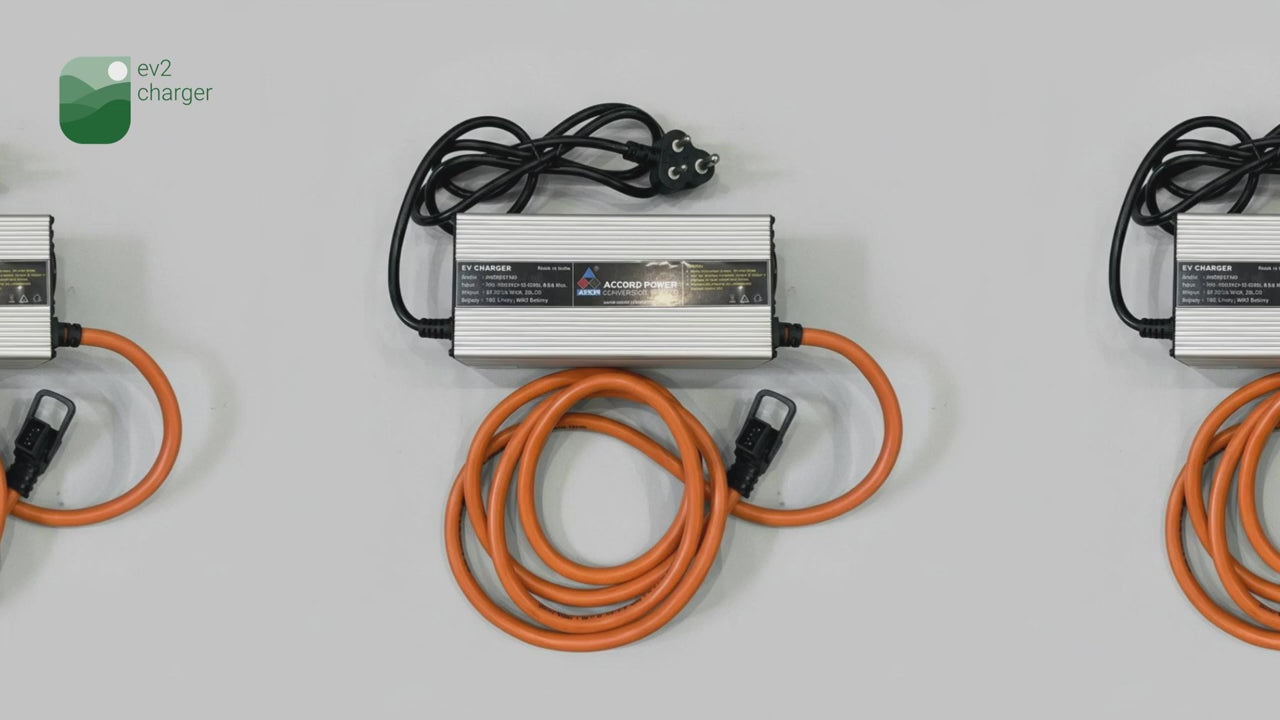

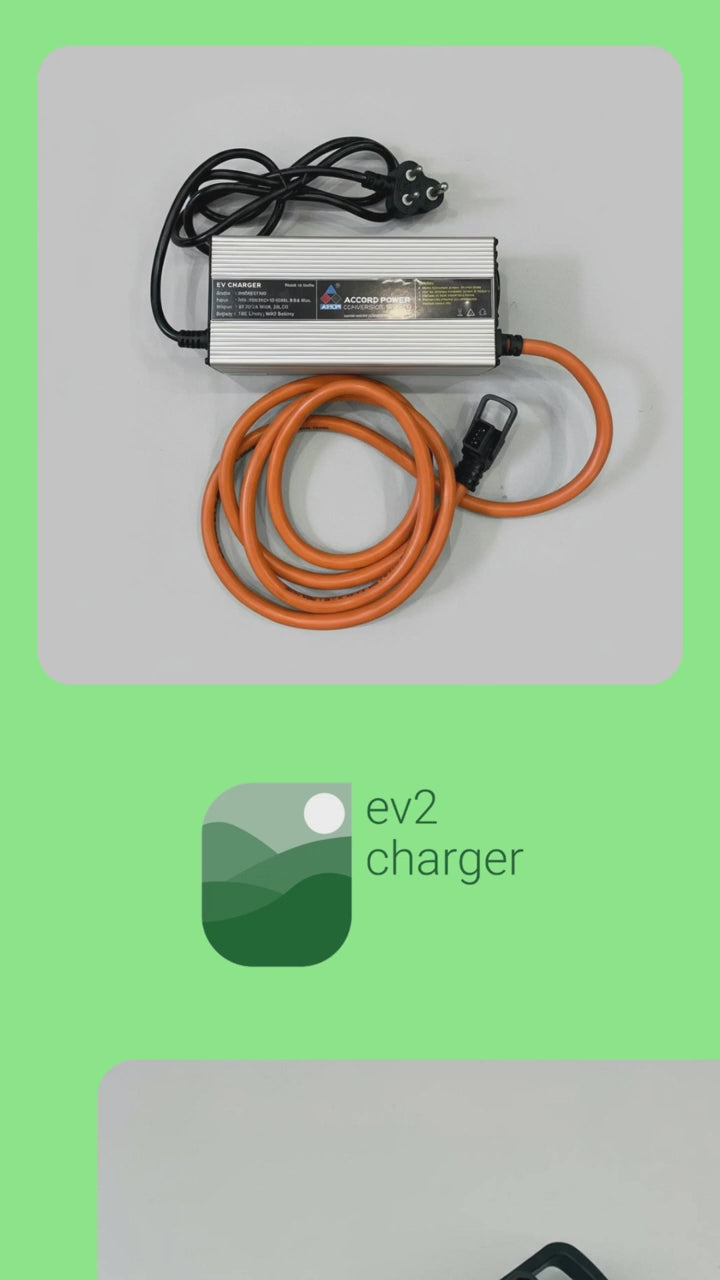

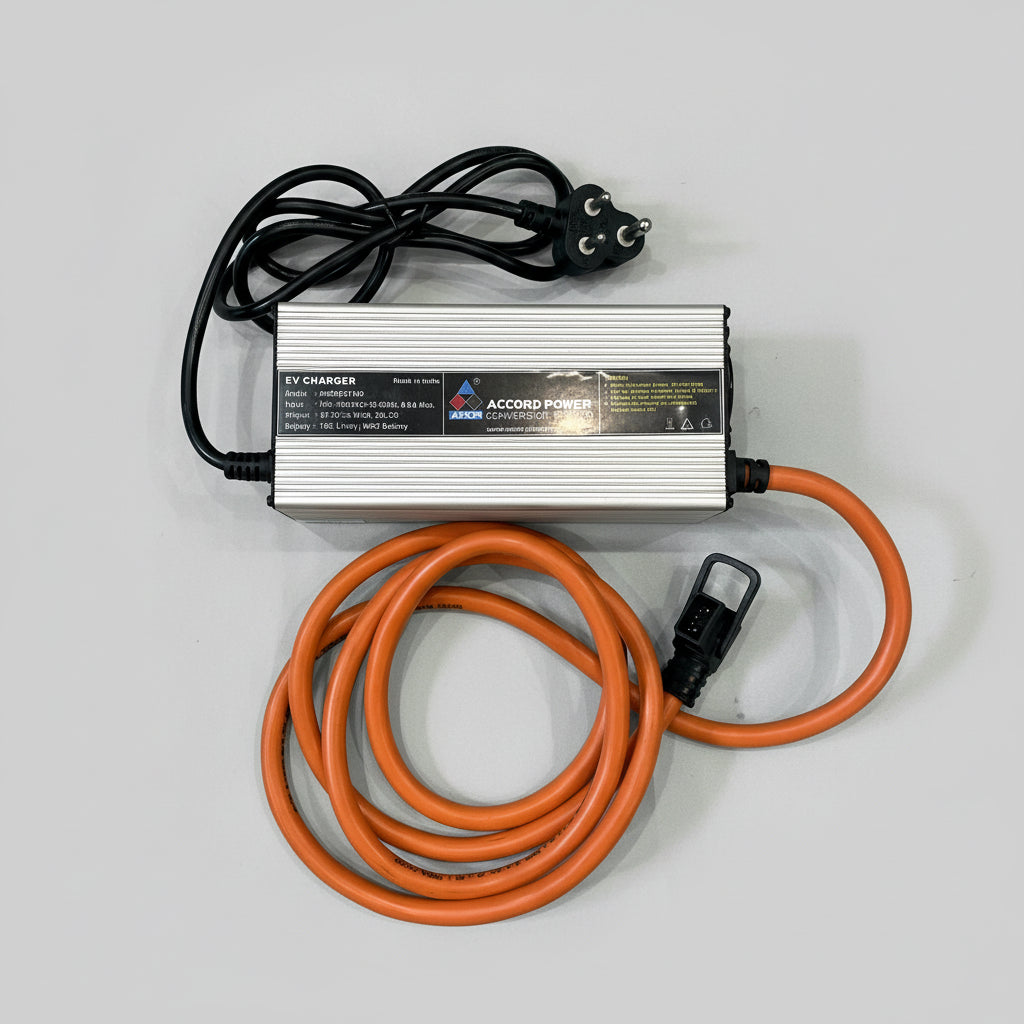

Original high-performance 67.2V 10A Lithium Battery Charger designed specifically for the BattRE Storie electric scooter. This charger operates on CAN Protocol (Phase 1) and is engineered for 60V Lithium-Ion battery packs. It features a specialized D-type 2-Pin Male Connector ensures a secure and efficient connection. Built with advanced SMPS technology, this charger ensures reliable performance and longevity for your EV battery.

Compatibility Note: Exclusively designed for BattRE Storie models requiring Phase 1 CAN communication. Please verify your scooter's charging port matches the D-type 2-Pin Male Connector before purchasing.

Key Highlights:

• Origin: Made in India
• Warranty: 6 Months from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details)
• Estimated Delivery: 3-10 Days

Technical Features:

• Phase 1 CAN Protocol: Optimized for seamless communication with the BattRE Storie BMS.
• Smart Charging: SMPS-based technology with >85% efficiency.

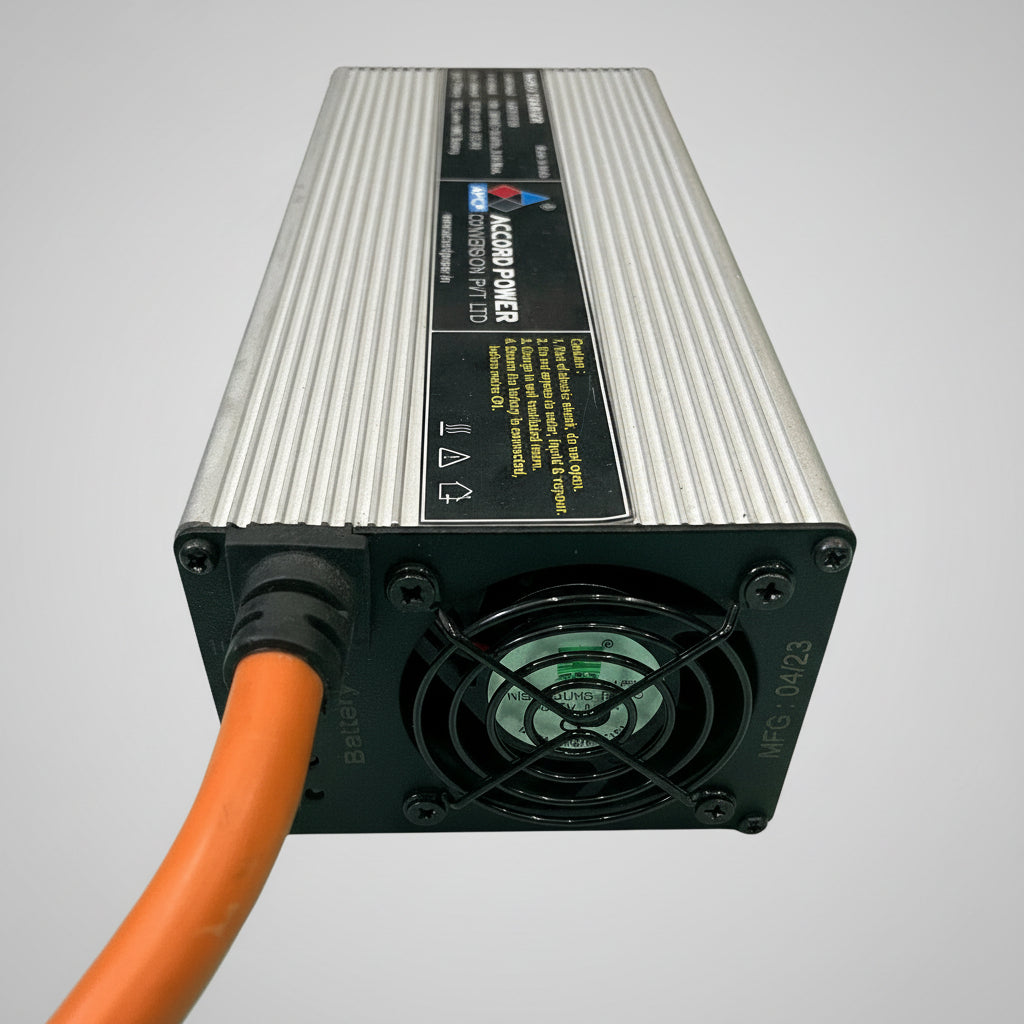

• Advanced Cooling: Forced air cooling via a built-in high-speed DC fan to prevent overheating.
• LED Status Indicators: Clear visual display for Mains ON and Charging percentages (25%, 50%, 75%, 100%).
• Quality Assurance: 100% Full Load Burn-in tested for high reliability.

Mechanical Specifications:

• Dimensions (L x W x H): 225 mm x 115 mm x 65 mm
• Weight: 2 Kg

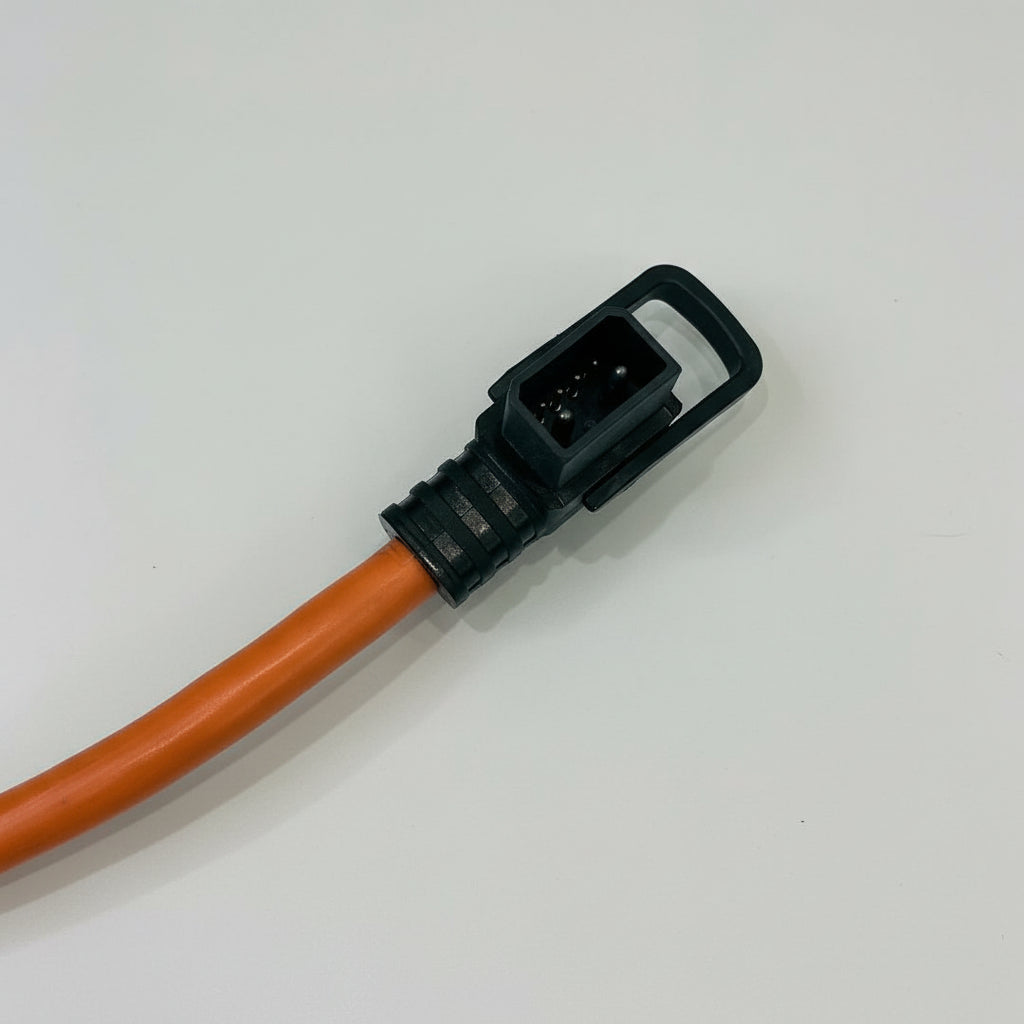

• Connector Type: D-Type 2-Pin Male Connector

Electrical Specifications:

Input:

• Input Voltage: 200V - 280V AC
• Frequency: 50 - 60 Hz
• Max Input Current: 8 Amps (at 230V AC)
• Note: Connect the input mains cord to a standard 5Amp wall socket with proper grounding (Earth).

Output:

• Output Voltage: 67.2V DC
• Output Current: 10 Amps
• Battery Application: 60V Lithium-Ion

Safety Instructions:

• Proper Grounding: Ensure the wall socket has a functioning Earth (Ground) connection.
• Connection Sequence: Connect the DC output connector to the battery before switching on the AC mains.
• Safety First: Do not touch uninsulated output wires.
• Polarity Check: Ensure Battery Positive (+ve) connects to Charger Positive (+ve) and Negative (-ve) to Negative (-ve).

Protection Systems:

• Output Short Circuit Protection
• Over-Temperature Protection
• Output Overload Protection
• Battery Reverse Polarity Protection

Warranty Terms & Conditions: We provide service and care. The battery charger is warranted to be free from defects in material and workmanship for a period of 6 months from the date of the original invoice.

The warranty is void under the following conditions:

• Missing Identification: If the serial number is missing or tampered with.
• Physical Damage: Damage resulting from abuse, misuse, dropping, or tampering.
• Unauthorized Repair: Attempted repair or maintenance by unauthorized personnel.
• Improper Connection: Connecting the DC output to an AC source or vice versa.
• Negligence: Damage caused by negligent use, improper cleaning, or storage.
• Environmental Damage: Damage resulting from fire, water, dust, wind, lightning, or other natural causes.
• Power Issues: Failure due to power fluctuations or high-voltage surges.
