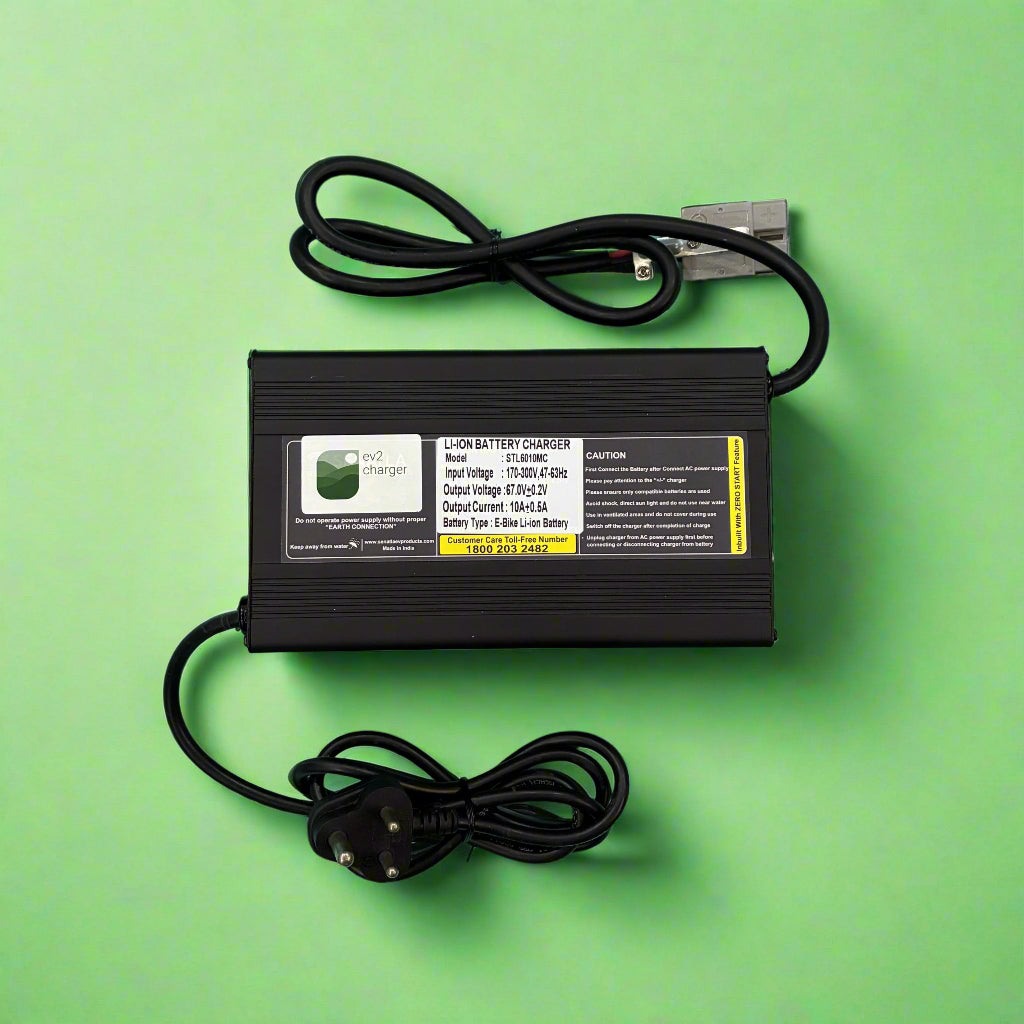

67.2V 10A Lithium Battery Charger - Anderson SB 50 Connector - For 60V E-Scooters & Bikes

High-efficiency 67.2V 10A Lithium Battery Charger designed for 60V Lithium-Ion battery packs. This charger is equipped with a robust Anderson (SB 50) Connector, known for its secure and high-current connection capabilities. Built with advanced SMPS technology, it features Deep Discharge Charging Capability, allowing it to effectively charge batteries even from low voltage states. Its compact design and forced air cooling ensure reliable performance for electric scooters and bikes.

Compatibility Note:

• Application: Suitable for Electric Scooters and E-Bikes running on 60V Lithium-Ion systems.

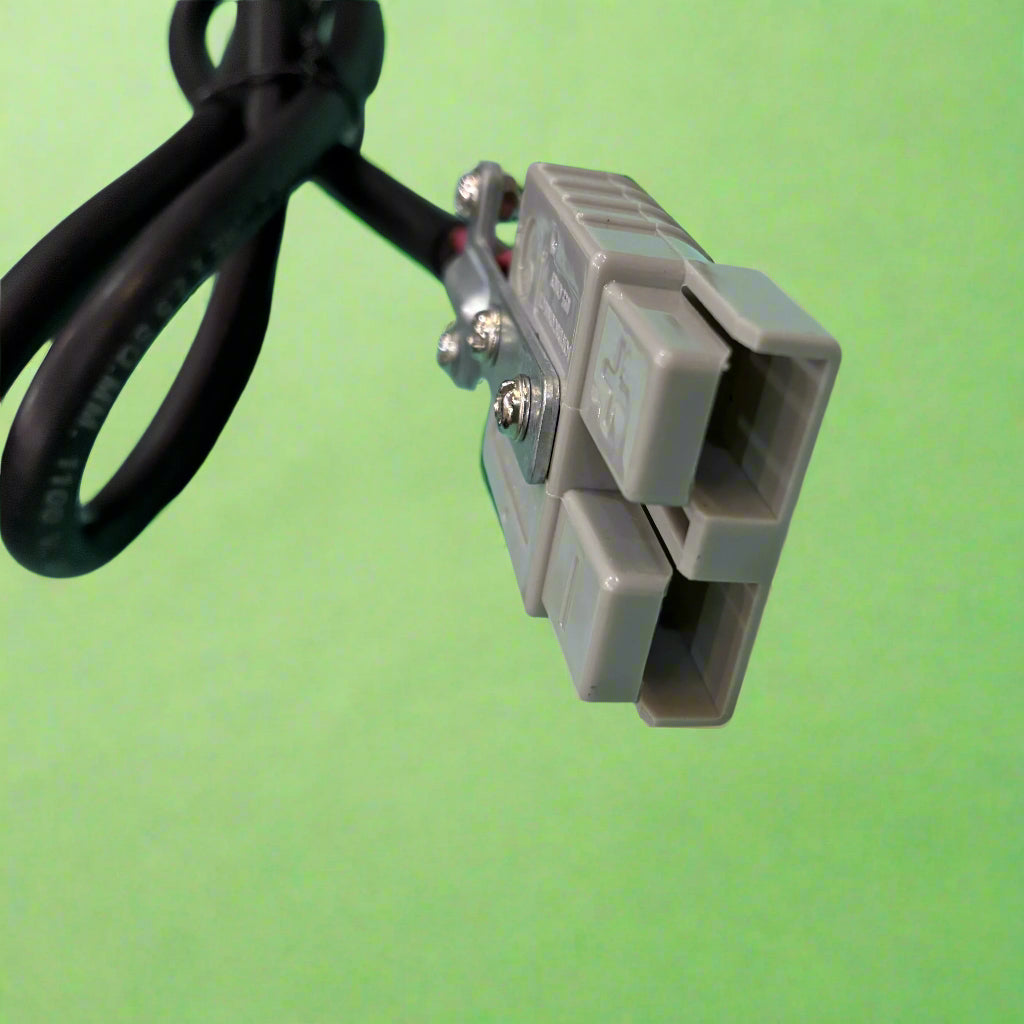

• Connector: Anderson SB 50 (Heavy-duty, genderless connector).
• Please verify that your battery port matches the Anderson SB 50 connector shown in the images.

Key Highlights:

• Origin: Made in India
• Warranty: 1 Year (12 Months) from the date of purchase
• Return Policy: 7 Days Return/Replacement (See Refund Policy for details)
• Estimated Delivery: 3-10 Days

Technical Features:

• Deep Discharge Charging: Capable of reviving and charging deeply discharged batteries.
• SMPS Technology: Advanced switching power supply for high efficiency (>85%).

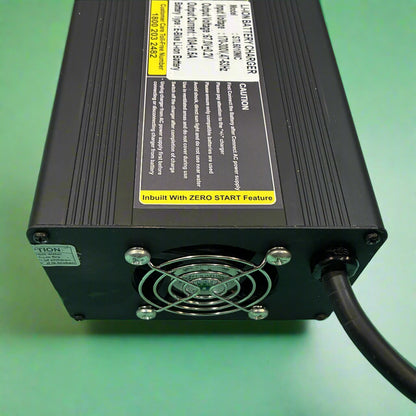

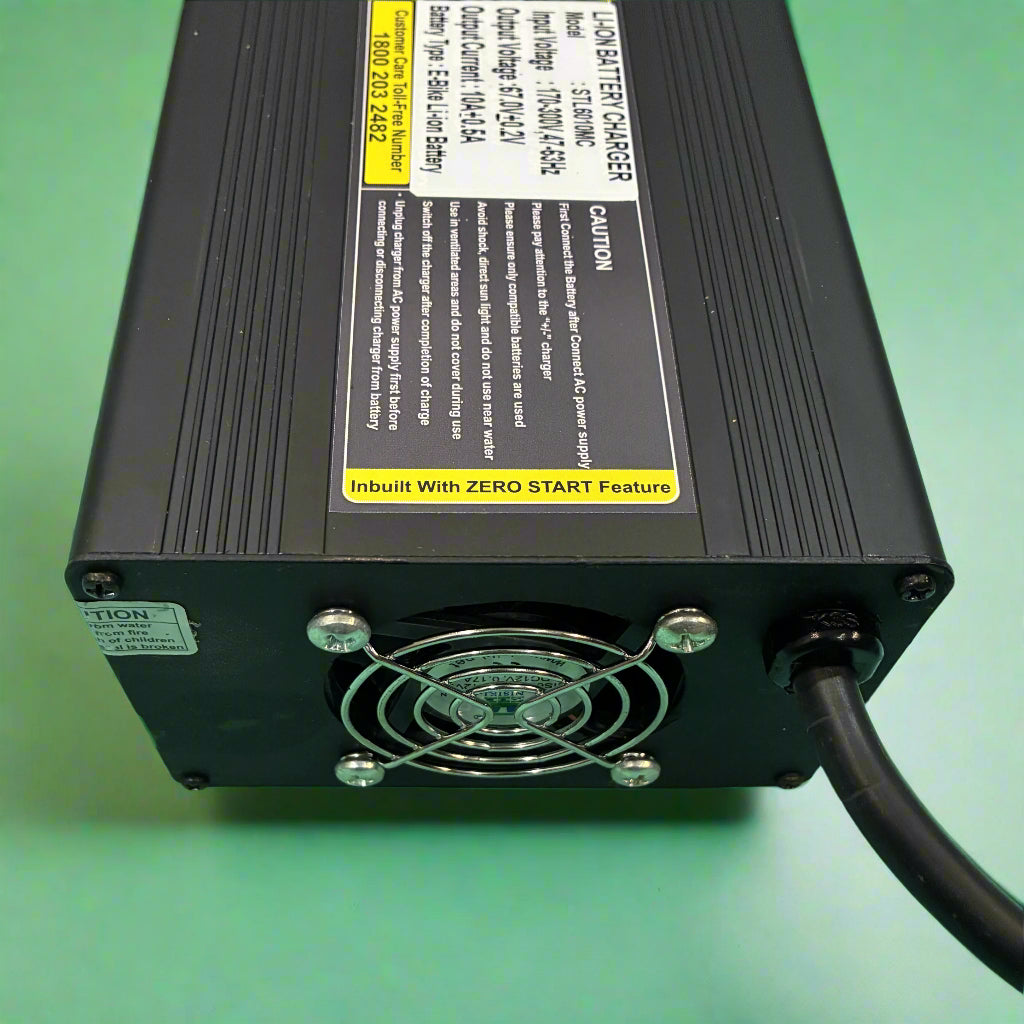

• Advanced Cooling: Forced air cooling via a built-in DC fan to maintain optimal operating temperature.
• LED Indicators: Visual indication for Mains ON and Charging Percentage.
• High Reliability: Designed for durability and consistent output.

Mechanical Specifications:

• Dimensions (L x W x H): 200 mm x 105 mm x 72 mm
• Weight: 1.85 Kg
• Connector Type: Anderson SB 50

Electrical Specifications:

Input:

• Input Voltage: 170-230 VAC
• Frequency: 47-63 Hz
• Max Input Current: 5 Amps

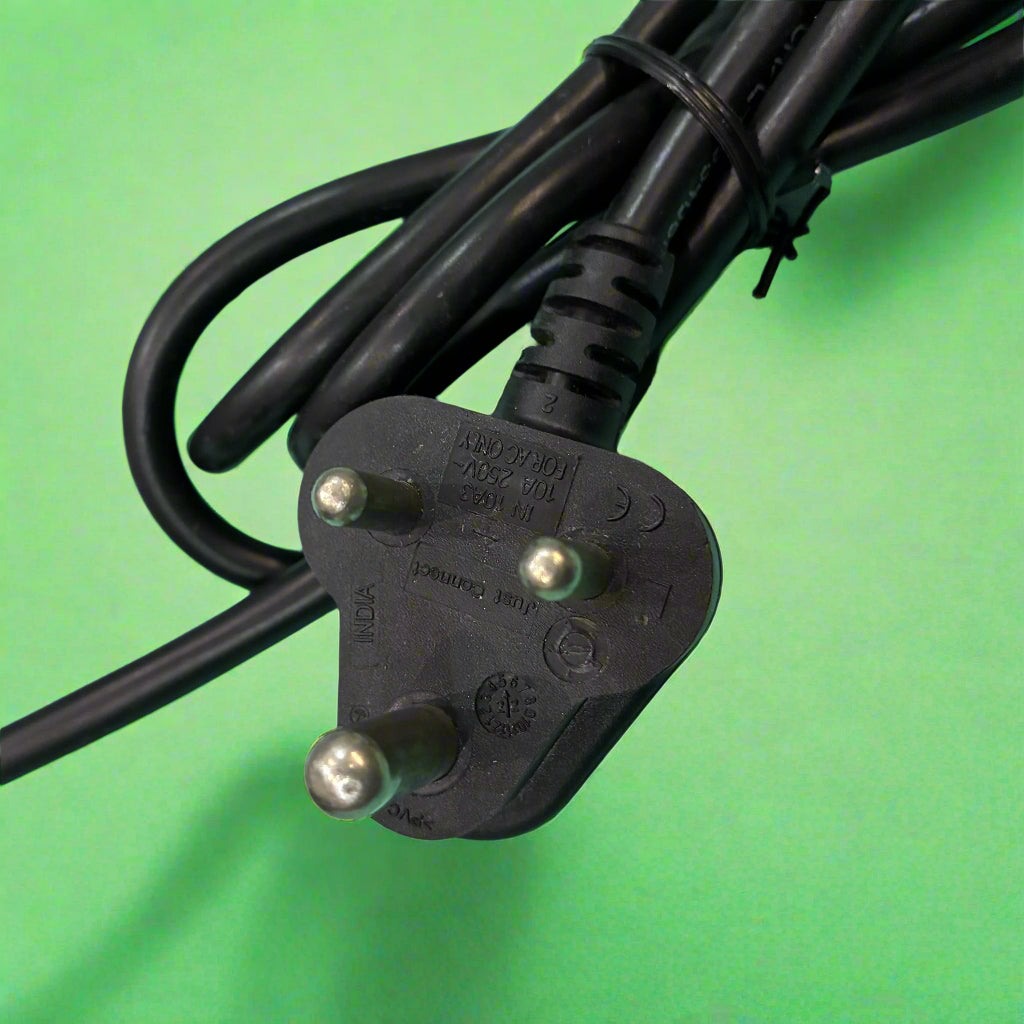

• Note: Connect input mains cord to a standard 5Amp wall socket with proper grounding.

Output:

• Output Voltage: 67.2V DC
• Output Current: 10 Amps
• Battery Application: 60V Lithium-Ion

Safety Instructions:

• Grounding: Ensure the wall socket has a proper Earth (Ground) connection.
• Connection Sequence: Connect the DC output connector to the battery before switching on the AC mains.
• Safety First: Do not touch uninsulated output wires.
• Polarity: Ensure Battery Positive (+ve) connects to Charger Positive (+ve) and Negative (-ve) to Negative (-ve).

Protection Systems:

• Output Short Circuit Protection
• Over-Temperature Protection
• Output Overload Protection
• Battery Reverse Polarity Protection

Warranty Terms & Conditions: We provide service and care. This battery charger is warranted to be free from defects in material and workmanship for a period of 12 months from the date of the original invoice.

The warranty is void under the following conditions:

• Missing Identification: If the serial number is missing or tampered with.
• Physical Damage: Damage resulting from abuse, misuse, dropping, or tampering.
• Unauthorized Repair: Attempted repair or maintenance by unauthorized personnel.
• Improper Connection: Connecting the DC output to an AC source or vice versa.
• Negligence: Damage caused by negligent use, improper cleaning, or storage.
• Environmental Damage: Damage resulting from fire, water, dust, wind, lightning, or other natural causes.
• Power Issues: Failure due to power fluctuations or high-voltage surges.
